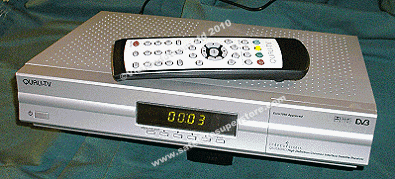

Qualitv 422 Receiver



Qualitv QS1080IRCI.

This unit works on 4.2.2 transmissions.
Also works as a standard receiver. Embedded IRDETO CAM. 2 CI slots
user-friendly menus. 2900 channels. 50 satellites. Diseqc 1.0/1.2
LNB loopthrough



DIGITAL VIDEO OUTPUT AND DIGITAL AUDIO OUTPUT
Component video output. 2 scart sockets,
This is an ideal unit for enthusiast feed hunters. 422 transmissions and
feeds are on several satellites including 19E and 13E

Features:
2 Common Interface Slots. Enable to Decode QPSK Transmission
HDTV and SDTV Display Support Teletext. AUX in for DVD/ VCD Composite Input
Aspect Ratio Adjustment 4:3 (16:9 Crop). 4:3 (16:9 Letter Box), 16:9 (4:3 Pillar Box)
Video/Audio Connectivity Including YPbPr, DVI , RGBHV , Composite , SPDIF , VCR DVD SCART ,TV SCART
Output Format 1080i, 720P, 576P and 576i. User-Friendly OSD and Operation
Favorite Channel Selection. S/W Upgradeable Through RS-232 / OTA
Parental Guide and Rating Control. Picture in Picture (PIP) Support
Electronic Program Guide (EPG). DisEqc 1.0 & 1.2. Dolby Digital,MPEG Layer I&II

Specifications:
Transmission System QPSK. Input Frequency 950~2150 Mhz
Video Output YPbPr /Composite /RGBHV/DVI. Input: 100~240 VAC,50 - 60Hz Voltage
Dimensions 360 (W) * 250 (L) * 65 (H) mm Chipset Broadcom BCM7035
Flash 2 MB. SDRAM 64 MB. EEPROM 32 KB. Video Decoder MPEG 2 MP@HL , MP@ML
Audio Decoder Dolby Digital, MPEG layer I & II. Tuner Input F-Female
Audio RCA, Optical(SPDIF). Component Video (YPbPr) RCA. Composite Video RCA
Serial Data Port RS- 232. Smart Card Slot *1. HD1 Approved
Brand new and boxed with accessories.
UK mainland delivery. Choose the £12.95 priority option.
Offshore islands - the delivery charge is £19.95
International. Choose the international option.
Availability : In stock and ready for immediate shipping.
Order code QUALITV
£599.95

The 1.2 m Andrews Channel Master heavy duty, high gain dish with
big 1224 EL Supermount Horizon to Horizon motor and 0.2 dB LNB.



With the EL option this motor will track inclined orbit satellites.
2 positioners are also required. A V box and a 2000 positioner. See below.
The Channel Master 1.2m dish. "Probably the best 1.2m dish in the world"
The 12-15 Kg EL 1224 motor. "Probably the best H to H motor for 1.2m dishes in the world"
The Titanium 0.2dB LNB. The lowest noise LNB available.



These are the new Titanium second edition 0.2dB LNBs that are widely praised on many web sites.
The second edition has the gold connections and is very low noise. An ultimate performance LNB.
The 1224 H to H motor is shown above. (Twin Titanium 0.2dB LNB is an option - see above)
(Fits a 3 inch pole (76mm) / wall mount or ground stand.) See Wall mounts & ground stands.
The 1224 motor comes with our own assembly instructions (in addition to the manufacturers).
These instructions include 20 photos (taken by us) detailing each stage in the assembly of the motor
with tips and shortcuts on setting it up. (Notes and photos produced by the Satellite Superstore)
This is a motor that we have sold for about 10 years, it is a demonstration item of superb reliabilty.
Our experience with this motor is vast and this is reflected in our customer support.
4 core motor control cable for the H to H and 5 core motor control cable for the
vertical jack can be found on the install page.
Andrews Channel Master 1.2m dish, 1224 EL H to H Supermount with Titanium 0.2dB LNB
UK mainland delivery, Choose the £20.00 option
Delivery to N Ireland for this complete motorised dish kit is £95.
Delivery to S Ireland for this complete motorised dish kit is £95.
Order code CMHH12M
Add £375.95

Dish option. Andrews feedhorn with Inverto 0.3dB C120 LNB



23mm to 40mm spacers included.
In stock and ready for immediate shipping.
Andrews (Channel Master) feedhorn for all Andrews (Channel Master) offset dishes
from 90cm to 1.8m. Highly recommended for Channel Master
1.2m & 1.8m dishes. Use this feedhorn with a C120 flange LNB
for better matching & higher gain than a 40mm clamp LNB of
equivalent noise level.
Why buy a high quality Channel Master dish and use a compromise
40mm mass market LNB where the feed is made for ANY dish?
Taking a 1.2m dish as an example.
A 40mm LNB may only illuminate 1.1m of dish area or perhaps 1.3m of dish area
(i.e. including noise round the edges)
But with a matched feedhorn, exactly 1.2m of dish area is illuminated.
This feedhorn is for offset dishes and can also be used on other makes of offset dish.
It comes with adapters for either 23mm or 40mm clamps.
And it comes with the ultimate 0.3 dB Invacom Professionsal LNB.
The best combination money can buy.
And YES !! We do have Channel Master feedhorns in stock.
Inverto LNBs are high output LNBs and work better than Invacom LNBs when the cable run is long.
(Under 20m the performance is the same but over 20m it is better)
Dish Option.
Include a matched Andrews Feedhorn with C 120 Inverto 0.3dB LNB instead of a single 40mm LNB
Discounted option price. To buy this feed and LNB separately, go to the Feedhorn page.
Order code SOFEOPT
ADD ONLY £69.95

Dish Option.
Andrews Channel Master matched feed option with Twin 0.3 dB C120 LNB.



Recommended with Channel Master 1.2m and 1.8m dishes if you need maximum signal and 2 outputs.
A matched feedhorn can increase the amount of signal the dish collects.
Includes 40mm to 23mm spacers with the feedhorn.
If this feed option is ordered, an INVERTO Twin 0.3dB single C120 flange LNB is included.(see above)
Inverto LNBs are high output LNBs and work better than Invacom LNBs when the cable run is long.
(Under 20m the performance is the same but over 20m it is better)
Dish Option.
Include a matched Andrews Feedhorn with twin C 120 Inverto 0.3dB LNB instead of a single 40mm LNB
Discounted option price. To buy this feed and LNB separately, go to the Feedhorn page.
Order code TWFEOPT
ADD £85.00

EZ-2000 Positioner with remote control.



For moving the 1224 motor up and down.
A high quality stand alone dish positioner. 36 volts. 5 amps. Works with read sensor or optical sensor
Also ideal for the vertical jack on an inclines orbit 1224 EL motor. (Above)
32 satellite position memories.
UK. Choose the £10.00 delivery option or the £12.95 priority option.
Order code 2000POS
Add £58.95

Add a V Box. with handset
to my 36 volt dish kit order.
THIS IS A DISH KIT OPTION.



For moving the 1224 EL motor right and left.
Convert Diseqc commands to 36 volt positioning.

The V Box is discounted to £30 when bought WITH a motorised dish kit.
To order the V Box separely WITHOUT a dish kit go to The V Box Page
Use the V Box if you have a Diseqc ONLY receiver and you want to use a 36V motor.
One of the most significant developments for motorised systems in years.
99 satellite positions.
Can now be used mounted horizontally or vertically
Fully automatic option. Just select the channel on your Diseqc receiver and your
36 volt motor / dish will move to the correct satellite and channel.
The unit can also be used as a stand alone positioner and it comes with a handset.
(No need to use the handset in automatic mode.)
Please note that the unit is silver, the lighting was not ideal when we took the centre photograph.
(Please note that this V Box is sometimes badged "V Box
Nextvision", the box is has a green background not red and all pictures and writing
on the box are identical to the one shown above. The V Box and handset are identical
whatever badge is on the packaging. i.e packaging might vary slightly.)
Note. 36 volt motors need 4 wire control cable between the v box and the motor
(to inject more power) see the cable on The Install Page
Order code ADDVBOX
Add £30.00
