Caravan satellite television equipment. Satellite Superstore UK

Caravan satellite equipment from the Satellite Superstore. Folding dishes, folding stands, receivers, meters.
Low cost kits for caravans and motorhomes. Clear transparent dishes. Self seaking dishes, cable, connectors.
We have 2 identical sites on different servers. www.satellitesuperstore.com & www.satellitesuperstore.co.uk
If there are technical difficulties, or one site is down, please use the other one. Pages are long. Please scroll down.

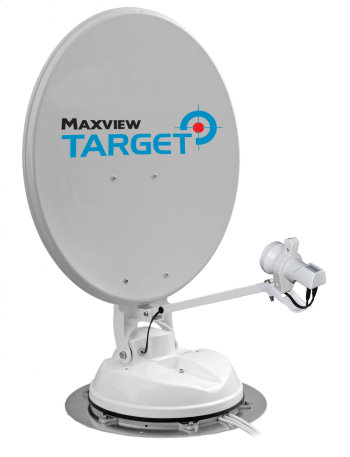

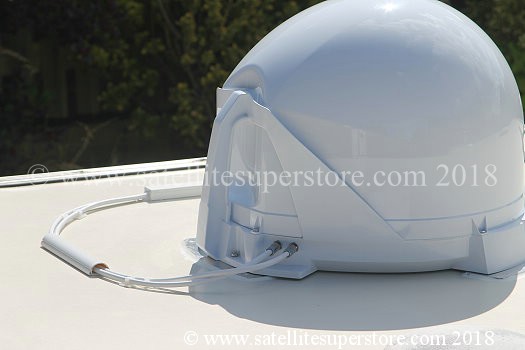

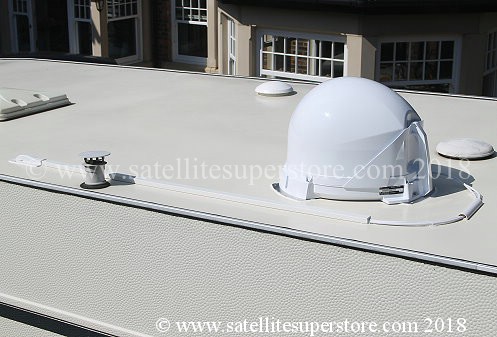

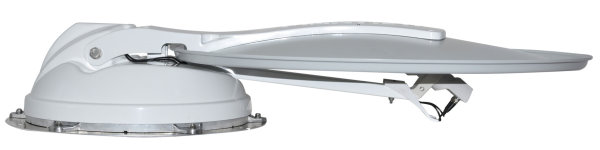

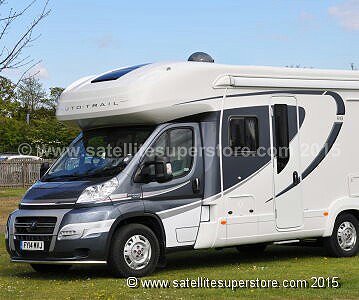

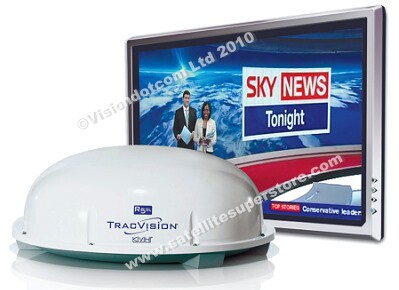

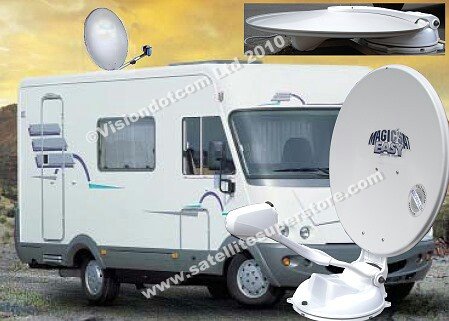

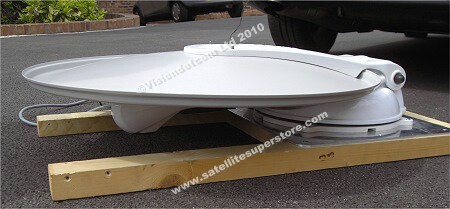

See fully and semi automatic dish systems for your caravan, motorhome or RV on the

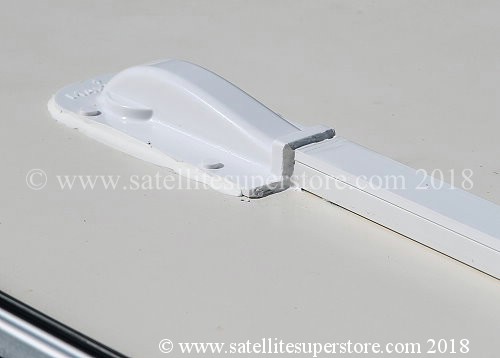

automatic systems page. These units fit on the roof (including the Maxview Crank-up.)

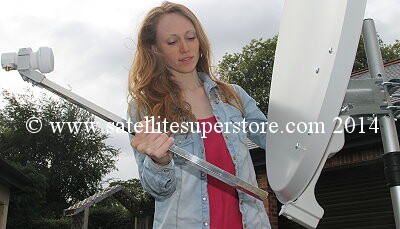

Clear transparent push-in-and-Out arm,
60cm dish with 0.2dB Titanium LNB,
stand, cable and compass kit

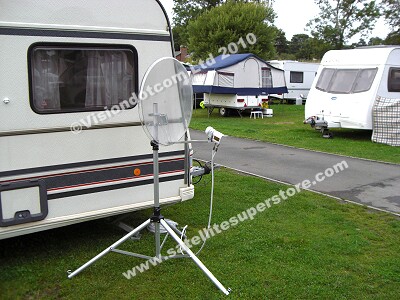

60cm Clear dish with stand

These are the new Titanium second edition 0.2dB LNBs that are widely praised on many web sites.
The second edition has the gold connections and is very low noise. An ultimate performance LNB.

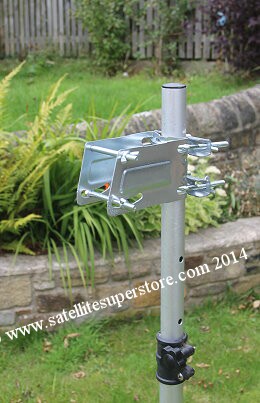

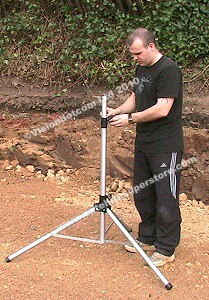

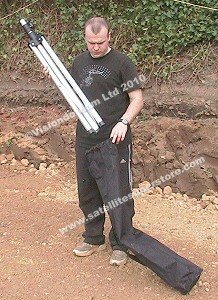

The stand has holes at the end of the legs for pinning down with tent pegs. This is the new deluxe
model - now with a 500mm height extension to go up to 1.8m if required. Ideal for looking over hedges.

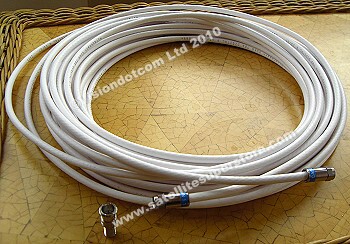

Complete kit - made up 20m cable using the best digital cable. The new compression F connectors are
used for a tight durable watertight seal. A very high quality push fit F connector adapter is now
included on one end of the made up cable to make for very fast connection to the receiver.
High quality Lensatic compass and our own setting up instructions. The clear dish is fairly soft plastic
(compared to metal) and will not harm anything in the caravan (when it is being carried in and out)
or car boot while being deployed or stowed away flat. The dish has a removable arm.

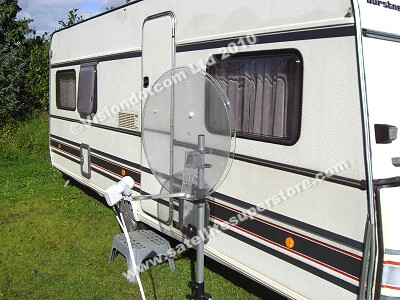

We are now supplying even clearer transparent dishes. The 2nd row picture, to the right of the folded stand
shows this new dish. Even the bracket on the back of the dish is transparent (the top pictures show the old dish)
This dish kit works far better than those small, often only 45cm, caravan dishes from caravan centres.
It will work great in the UK and should get all Sky channels as far south as Paris however we would
recommend the 80cm kit below if you intend going to the south of France. A digital compass upgrade is

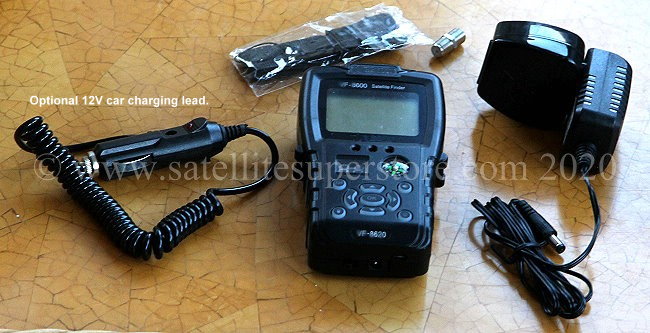

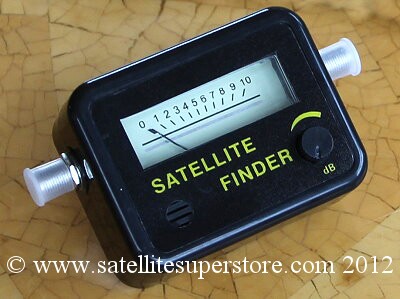

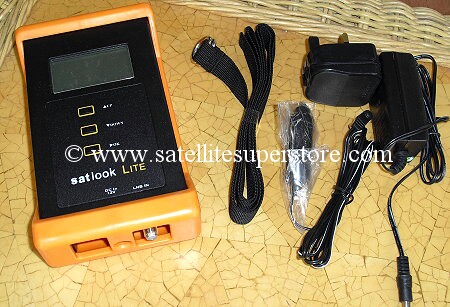

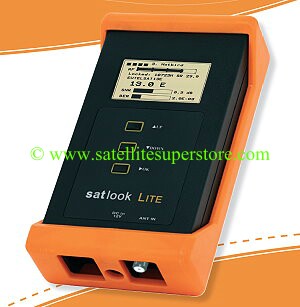

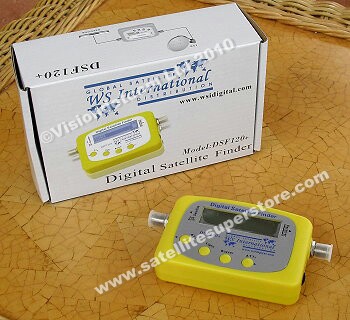

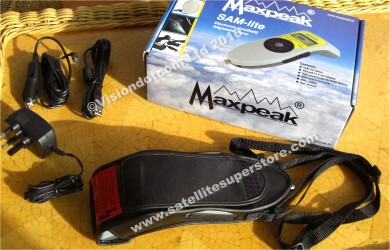

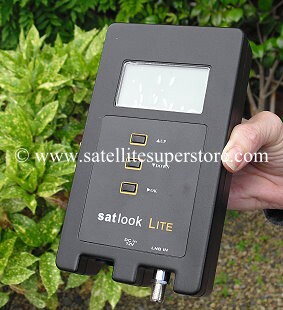

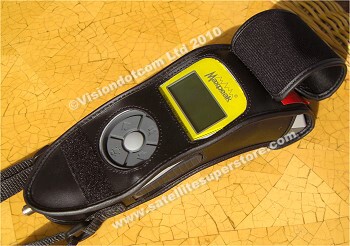

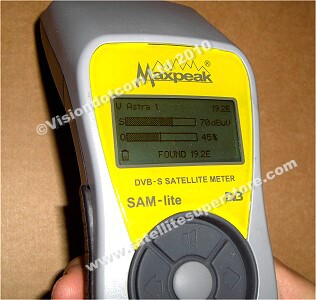

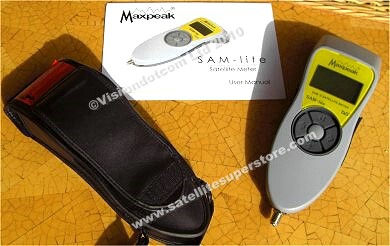

available lower down the page. If you need a satellite meter (and if you don't have one, it will be needed)
please add it from the selection of satellite meters below. Satellite receivers are also lower down the page.

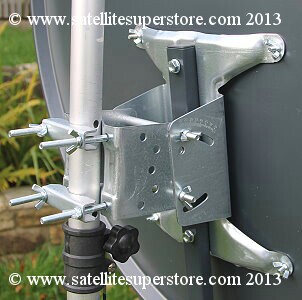

This dish has been specially modified for caravan / motorhome use by the Satellite Superstore
It is a special version not the same as those on our fixed and motorised pages and it
uses wing nuts for fast erection and adjustment. (More info. about the Lensatic compass lower down the page.)
The complete kit goes with our own detailed setting up instructions based on 15 years
experience of both satellite TV and caravan touring all over western and eastern Europe.
These instructions detail all of the shortcuts for fast setting up and satellite location.
This dish version and instructions are exclusive to the Satellite Superstore.
All items are available separately if you scroll down but there is a saving if ordered as a kit.
Mainland UK Customers. Choose the Ł10 standard shipping option, or the Ł12.95 "by weight" priority
shipping option.
UK offshore islands - please note that couriers make a surcharge and the delivery price is Ł19.95
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
Order code TRA60FS
Special offer price Ł149.95.

Advice. (Scroll down for more products.)

Folding arm solid and transparent dishes.

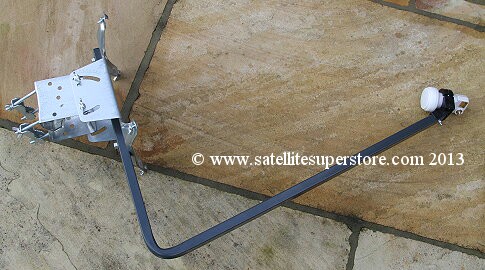

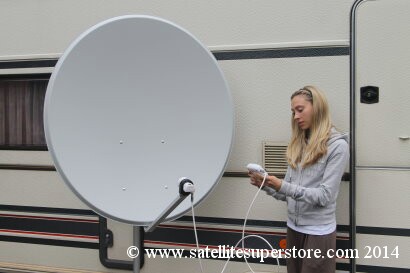

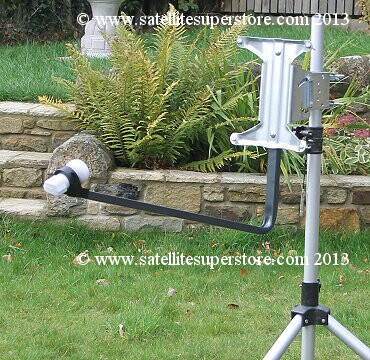

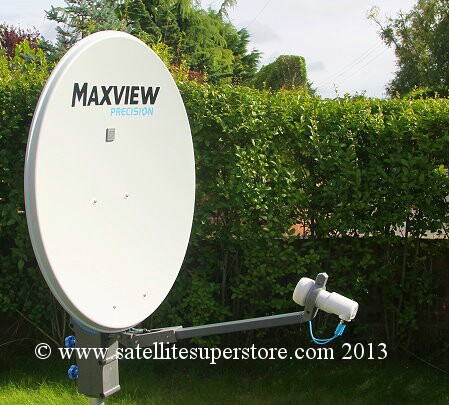

Triax dishes have a folding boom arm. The one shown above is an 90cm but the 60, 80, & 90cm are the same
Most specialist caravan dishes are too small. If the dish is to be used throughout Europe and the UK,
it needs to be at least 60cm diameter - you cannot change the laws of Physics! Small caravan dishes do NOT work.
Finding this out on the camp site is not an ideal situation. Here are some recommendations - UK, Northern France
(e.g. Normandy), Holland, Northern Germany: - use a 60cm solid or clear dish. (A Sky mini dish is at least 10%
smaller than ideal even for the UK !! It is only small to make it look unobtrusive, however, as it does not fold
and mesh tends to be easily dented or bent so it is not ideal for a caravan / portable use.) Paris : - use an 80cm.
South of France : - use an 85 - 90cm. Spain : - Tune to the south beam and use an 80 anywhere. The north beam
in Spain : - Costa Brava, 1.0m - Madrid 1.2m The South of Spain, 1.6 to 1.8 - Alicante 2.4m (for more details
see SPAIN) Northern Italy : - 1.0m but may not get all channels. 1.2m for all channels. (you could use a 90 cm
and get some channels but maybe not the lower power ones.) Storage : - Lie dish on bed (or in boot) when
traveling. On site slide under caravan until you are ready to set it up. That way it is never in the way.

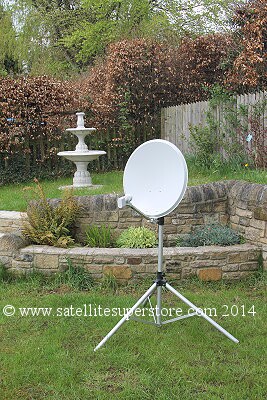

We strongly advise customers to set up their caravan kit in their garden before going away. It is important
to practice setting it all up and solving problems at home when it does not matter if there are learning delays.

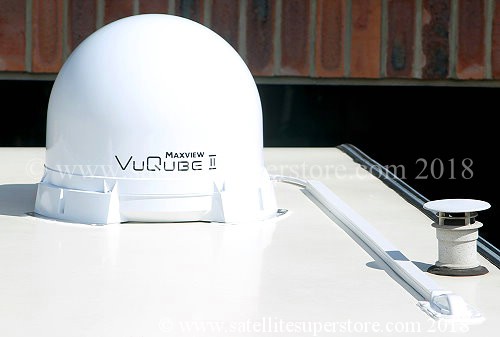

See fully and semi automatic dish systems for your caravan, motorhome or RV on the
automatic systems page. These units fit on the roof (including the Maxview Crank-up.)

Scroll down to buy parts from the kits separately.
Scroll down for satellite meters and fully automatic systems

Transparent folding arm 80cm
dish with 0.2dB Titanium LNB,
stand, cable & compass kit.

stand up

These are the new Titanium second edition 0.2dB LNBs that are widely praised on many web sites.
The second edition has the gold connections and is very low noise. An ultimate performance LNB.

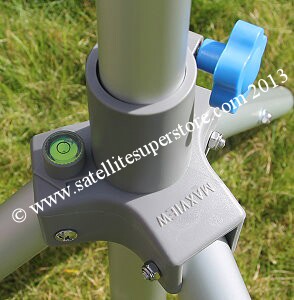

The stand has holes at the end of the legs for pinning down with tent pegs. This is the new
deluxe model - now with a 500mm height extension. Complete kit - made up 20m cable using the best
digital cable. Lensatic compass and our own setting up instructions. The clear dish is
fairly soft plastic (compared to metal) and will not harm anything in the caravan
(when it is being carried in and out) or car boot, when being deployed or stowed away flat.
This dish kit works far better than those small, often only 45cm, caravan dishes from caravan centres.
It will work great in the UK and should get all Sky channels right down to the south of France.
If you need a satellite meter (and if you don't have one, you will need one,)
please add it from the meters below. (More info. about the Lensatic compass lower down the page.)
This dish has been specially modified for caravan / motorhome use by the Satellite Superstore
It is a special version not the same as those on our fixed and motorised pages and it also
uses wing nuts for fast erection and adjustment. The new compression F connectors are
used for a tight durable watertight seal.
A very high quality push fit F connector adapter is now included on one end of the made up cable
to make for very fast connection to the receiver.
The complete kit goes with our own detailed setting up instructions based on 15 years
experience of both satellite TV and caravan touring all over western and eastern Europe.
These instructions detail all of the shortcuts for fast setting up and satellite location.
This dish version and instructions are exclusive to the Satellite Superstore.
Sold separately all of these items would cost Ł187.45 - SAVE Ł7.50 with this kit!
Mainland UK Customers. Choose the Ł10 standard shipping option, or the Ł12.95 "by weight" priority
shipping option.
UK offshore islands - please note that couriers make a surcharge and the delivery price is Ł19.95
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
Order code TRA80FS
Special offer price Ł169.95.

Triax folding arm solid TD54 54cm dish with 0.2dB
Titanium LNB, stand, cable and compass kit

stand down

These are the new Titanium second edition 0.2dB LNBs that are widely praised on many web sites.
The second edition has the gold connections and is very low noise. An ultimate performance LNB.
Our smallest folding arm dish.
Triax TD 54 folding arm solid dish. 0.2dB Titanium LNB, 20m of the very best white (99p/m) ultimate
digital cable (white looks better than black for outdoor use.) The cable is fully made up
with connectors fitted on both ends. The new compression F connectors are
used for a tight durable watertight seal.
A very high quality push fit F connector adapter is now included on one end of the made up cable
to make for very fast connection to the receiver. New deluxe
lightweight aluminum folding ground stand. (see info. on stand above.) When used with Sky Digital this kit
is ideal for caravan use in the UK. (Take your Digibox with you or order one from us.)
If you need a satellite meter (and if you don't have one, you will need one,)
please add it from the meters above. (More info. about the Lensatic compass lower down the page.)
The complete kit goes with our own detailed setting up instructions based on 15 years
experience of both satellite TV and caravan touring all over western and eastern Europe.
These instructions detail all of the shortcuts for fast setting up and satellite location.
All items are available separately if you scroll down.
Mainland UK Customers. Choose the Ł10 standard shipping option, or the Ł12.95 "by weight" priority shipping option.
UK offshore islands - please note that couriers make a surcharge and the delivery price is Ł19.95
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
All items are available separately if you scroll down but there is a saving if ordered as a kit
Order code 54CAKIT
Ł122.45

Triax folding arm solid TD64 60cm dish with 0.2dB
Titanium LNB, stand, cable and compass kit

stand down

These are the new Titanium second edition 0.2dB LNBs that are widely praised on many web sites.
The second edition has the gold connections and is very low noise. An ultimate performance LNB.
Triax 60cm folding arm solid dish. 0.2dB Titanium LNB, 20m of the very best white (99p/m) ultimate
digital cable (white looks better than black for outdoor use.) The cable is fully made up
with connectors fitted on both ends. The new compression F connectors are
used for a tight durable watertight seal.
A very high quality push fit F connector adapter is now included on one end of the made up cable
to make for very fast connection to the receiver. New deluxe
lightweight aluminum folding ground stand. (see info. on stand above.) When used with Sky Digital this kit
is ideal for caravan use in the UK and Normandy. (Take your Digibox with you or order one from us.)
If you need a satellite meter (and if you don't have one, you will need one,)
please add it from the meters above. (More info. about the Lensatic compass lower down the page.)
The complete kit goes with our own detailed setting up instructions based on 15 years
experience of both satellite TV and caravan touring all over western and eastern Europe.
These instructions detail all of the shortcuts for fast setting up and satellite location.
All items are available separately if you scroll down.
Mainland UK Customers. Choose the Ł10 standard shipping option, or the Ł12.95 "by weight" priority shipping option.
UK offshore islands - please note that couriers make a surcharge and the delivery price is Ł19.95
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
All items are available separately if you scroll down but there is a saving if ordered as a kit
Order code 64CAKIT
Ł124.95

Triax folding arm solid TD78 80cm dish with 0.2dB
Titanium LNB stand, cable and compass kit

stand down

These are the new Titanium second edition 0.2dB LNBs that are widely praised on many web sites.
The second edition has the gold connections and is very low noise. An ultimate performance LNB.
Triax 80cm folding arm solid dish. 0.2dB Titanium LNB, 20m of the very best white (99p/m) ultimate
digital cable (white looks better than black for outdoor use.) The cable is fully made up
with connectors fitted on both ends. The new compression F connectors are
used for a tight durable watertight seal.
A very high quality push fit F connector adapter is now included on one end of the made up cable
to make for very fast connection to the receiver. New deluxe
lightweight aluminum folding ground stand. (see info. on stand above.) When used with Sky Digital this kit
is ideal for caravan use in the UK and as far south as Paris or the middle of France.
(Take your Digibox with you or order one from us.)
If you need a satellite meter (and if you don't have one, you will need one,)
please add it from the meters above. (More info. about the Lensatic compass lower down the page.)
The complete kit goes with our own detailed setting up instructions based on 15 years
experience of both satellite TV and caravan touring all over western and eastern Europe.
These instructions detail all of the shortcuts for fast setting up and satellite location.
All items are available separately if you scroll down.
Mainland UK Customers. Choose the Ł10 standard shipping option, or the Ł12.95 "by weight" priority shipping option.
UK offshore islands - please note that couriers make a surcharge and the delivery price is Ł19.95
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
All items are available separately if you scroll down but there is a saving if ordered as a kit
Order code 78CAKIT
Ł134.95

Triax folding arm solid TD88 90cm dish with 0.2dB
Titanium LNB stand, cable and compass kit

stand down

These are the new Titanium second edition 0.2dB LNBs that are widely praised on many web sites.
The second edition has the gold connections and is very low noise. An ultimate performance LNB.
Triax 90cm folding arm solid dish. 0.2dB Titanium LNB, 20m of the very best white (99p/m) ultimate
digital cable (white looks better than black for outdoor use.) The cable is fully made up
with connectors fitted on both ends. The new compression F connectors are
used for a tight durable watertight seal.
A very high quality push fit F connector adapter is now included on one end of the made up cable
to make for very fast connection to the receiver. New deluxe
lightweight aluminum folding ground stand. (see info. on stand above.) When used with Sky Digital
this kit is ideal for caravan use in the UK and right down to the south of France.
(Take your Digibox with you or order one from us.)
If you need a satellite meter (and if you don't have one, you will need one,)
please add it from the meters above. (More info. about the Lensatic compass lower down the page.)
The complete kit goes with our own detailed setting up instructions based on 15 years
experience of both satellite TV and caravan touring all over western and eastern Europe.
These instructions detail all of the shortcuts for fast setting up and satellite location.
All items are available separately if you scroll down.
Mainland UK Customers. Choose the Ł10 standard shipping option, or the Ł12.95 "by weight" priority shipping option.
UK offshore islands - please note that couriers make a surcharge and the delivery price is Ł19.95
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
All items are available separately if you scroll down but there is a saving if ordered as a kit
Order code 88CAKIT
Ł144.95

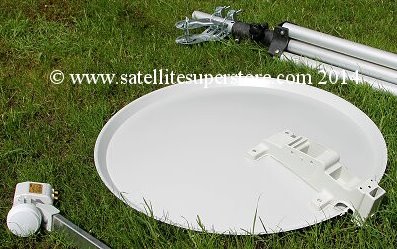

Orbital solid 1.0m dish with 0.2dB
Titanium LNB stand, cable and compass kit

orgital dish.

These are the new Titanium second edition 0.2dB LNBs that are widely praised on many web sites.
The second edition has the gold connections and is very low noise. An ultimate performance LNB.
This is the largest dish that can easily be carried and is lightweight aluminum.
It has to be assembled but wing nuts make that job easier.
The dish is actually 107cm high and so has much more gain than a 1.0m dish. Good for touring in Spain.
This dish is very efficient and should receive all Astra 2 channels even south of Barcelona
and will receive most channels in many parts of southern Spain.
Included is the 0.2dB Titanium LNB, 20m of the very best white (99p/m) ultimate
digital cable (white looks better than black for outdoor use.) The cable is fully made up
with connectors fitted on both ends. The new compression F connectors are
used for a tight durable watertight seal.
A very high quality push fit F connector adapter is now included on one end of the made up cable
to make for very fast connection to the receiver. New deluxe
lightweight aluminum folding ground stand. (see info. on stand above.) When used with Sky Digital
this kit is ideal for caravan use in the UK and right down to the south of France.
(Take your Digibox with you or order one from us.)
If you need a satellite meter (and if you don't have one, you will need one,)
please add it from the meters above. (More info. about the Lensatic compass lower down the page.)
The complete kit goes with our own detailed setting up instructions based on 15 years
experience of both satellite TV and caravan touring all over western and eastern Europe.
These instructions detail all of the shortcuts for fast setting up and satellite location.
All items are available separately if you scroll down.
Mainland UK Customers. Choose the Ł10 standard shipping option, or the Ł12.95 "by weight" priority shipping option.
UK offshore islands - please note that couriers make a surcharge and the delivery price is Ł19.95
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
All items are available separately if you scroll down but there is a saving if ordered as a kit
Order code 10CAKIT
Ł179.95

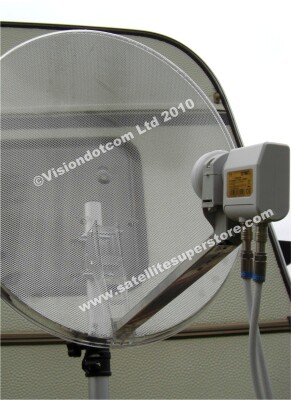

Sky + Caravan Kit option

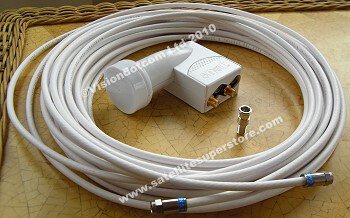

Highest quality German digi cable. Twin LNB

These are the new Titanium second edition 0.2dB LNBs that are widely praised on many web sites.
The second edition has the gold connections and is very low noise. An ultimate performance LNB.
If you want to run a Sky + in the caravan you will need to
use a twin LNB instead of a single. With this option the single will be exchanged
for a twin 0.2dB LNB Titanium LNB. Also included is a second 20m cable making up
with F connectors using our very best white digital cable.
The new high quality compression F connectors are used for a tight durable watertight seal.
A very high quality push fit F connector adapter is now included on one end of the made up cable
to make for very fast connection to the receiver.
This made up for you. This is a kit option and cannot be selected separately
unless a full - dish, stand and accessories kit is ordered. Either add to the
clear dish or solid dish kits above.
This kit is also needed if you are buying a non-Sky twin tuner receiver.
Order code OPTPLUS
Add Ł25.00

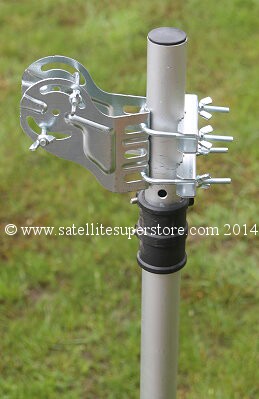

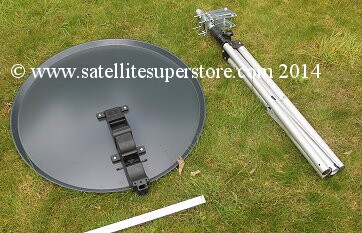

Very light folding dish stand

stand up

This is the new deluxe model - now with a 500mm height extension. Useful carry bag now included.
Ideal for use with the Triax and clear easy fit dishes. Can also be used with the 80cm & 90cm dishes
and 60cm and 85cm clear dishes. Can be opened or folded in seconds. The stand has holes at the
end of the legs for pinning down with tent pegs.
Mainland UK Customers. Choose the Ł10 standard shipping option, or the Ł12.95 "by weight" priority
shipping option.
UK offshore islands - please note that couriers make a surcharge and the delivery price is Ł19.95
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
Order code GS12M3D
Ł54.95

Advice on satellite meters.

Please read this before moving down to the products.
There are two types of customer,
1. A customer buying a satellite system for their home intending to fit it themselves.
This type of customer don’t mind spending an hour or so fiddling around with a sub Ł40
budget satellite meter as they know it is a one-off install and it is worth saving the
money and putting up with the inconvenience of a budget meter.
2. Professional installers and caravan users. These people want to set up real fast and
once assembled, a professional meter (at around Ł260) takes only a few minutes to find the
satellite. Caravan users can set up and get on with there holiday without the frustration
of all the trial and error searching needed with budget meters.
Note. Some caravan users prefer not to take this advice and take only the budget meter.
A far proportion come back to us after their holiday with comments like
“yes you were right. – not going through that again – send me a decent meter”.
(Information about the Lensatic compass is lower down the page.)

Satellite Meters.

SLX / Chess satellite meter.

SLX meter

Works on fully digital satellites like Sky Digital at 28E.
Works on analogue satellites and all other digital satellites. Ideal for setting up a motorised or
fixed dish system. Produces a loud audible tone & an visual reading of signal strength.
An excellent meter & great value for money.
Please note that sometimes the meter is badged SLX and sometimes Chess. Either way is works
and looks the same apart from the colour of the front panel.
(UK Customers. Normally standard shipping is Ł3.95 and priority shipping is Ł7.50)
Special Internet only offer - free delivery only if ordered through the web site.
UK Customers. Choose the free shipping option - ONLY if ordering on-line (web order only).
Free delivery also to Southern Ireland. Choose the free shipping option.)
Availability : In stock and ready for immediate shipping.
International. Choose an international option.
Order code, SLXMETE
Only Ł14.95

Digisat satellite meter.

Digisat

Produces a audible tone & an LCD visual meter reading of signal strength. Great value for money.
UK Customers. Choose the Ł3.95 small item standard shipping option or the Ł7.50 small item priority
shipping option. International. Choose an international option.
Order code DIGISAT
NOW ONLY Ł37.95

Digisat LCD satellite meter.

LCD screen. Works on all digital satellites. Produces a audible tone & an LCD visual meter reading of signal
strength. An excellent meter & great value for money. These meters are very sensitive & can detect weak signals.
UK Customers. Choose the Ł3.95 small item standard shipping option or the Ł7.50 small item
priority shipping option. International. Choose an international option.
Order code DIGISAL
NOW ONLY Ł42.95

FAST professional satellite meters.
Ideal for caravanning & motorhomes.

Lacuna Mk 4, 2007 Satellite Meter. Special Offer.

Wolsey 3.

Ideal for Sky Digital at 28.2 degrees. The ideal instrument for the professional
installer. Named satellites in March 07 software are 66E, 64E, 57E, 53E, 45E, 42E 39E,
36E, 33E, 26E, 28.5E 28.2E 23.5E 19E 16E 13E 10E 7E 5E O.8W, 5W, 7W 8W 12.5W 15W 22W,
30W, 43W, 45W. Due to regular data set upgrades, the list can change so check with us
if you need an updated list.
A custom designed, small lightweight ABS case created with the installer in mind
(please note that sometimes the meter has a red case & sometimes a yellow one. Otherwise it is the same.)
It is manufactured by Lacuna Systems in the UK. Satellite Superstore has been an authorised
Lacuna supplier since 1999 and we have a close relationship with the factory to provide good back up.
Digital LCD readout, 4 line display with backlight. Both the signal strength & the signal quality
(BER settings) displayed together. Very easy to use. Simple to operate with one hand.
Ideal for caravans, motorhomes, RV etc.
Easily identifies the chosen satellite. Removable "F" connector. Easy to read display while in use.
With meter hung over dish, or, leather strap over your neck, you can look down and since the display
is at the end, you can see it without turning the meter. Removable NiMh High capacity battery
LNB short circuit protection. LNB power supply. Compatible with all satellite transmissions.
i.e. Ku & C band DVB and DSS. Long use internal battery. Complete with mains charger.
The new Satmeter Mk 4 can be connected to a mains supply, and still be used to find satellites.
That means that if the battery is fully discharged due to prolonged use, if a mains supply
is available the meter can still be used. (a good feature if prolonged use is required.)
Also supplied with a car charger worth Ł25.00 Supplied with purpose built padded case (included)
Unit weighs less than 1Kg. The Eurobird at 28.5E is now included. An optional Lacuna
"push" F connector lead is available below.
These new meters use a USB connection lead to upgrade the software.
Ł212.72 + VAT = Ł249.95 A very low price and free delivery
(UK Customers. Shipping is normally Ł10.00)
Special Internet only offer - free delivery only if ordered through the web site.
The free delivery is usually next day.
UK Customers. Choose the free shipping option - ONLY if ordering on-line (web order only).
Free UK delivery.
Choose the free delivery option.
(That includes free delivery to offshore islands including N Ireland)
Special Offer - Free padded case. Free car charger.
Mains charger included - all orders.
Free UK delivery
And now also free, (Web Offer)
Now an additional web offer. We include a 1.0m USB dowload lead (normally Ł4.95) for updating the software
and .... remember ! a padded case and 2 chargers.

USB download lead.

Now only Ł249.95 including VAT. Free shipping. Large accessory pack all free. Great price.
Order code, LACUNAM
Only Ł249.95

Lacuna Mk 4, 2007NS Satellite Meter.
28E North and South beam + all of the other
satellites - see above.
Ideal for Spain, the UK and the rest of Europe.

Lacuna Mk 4.

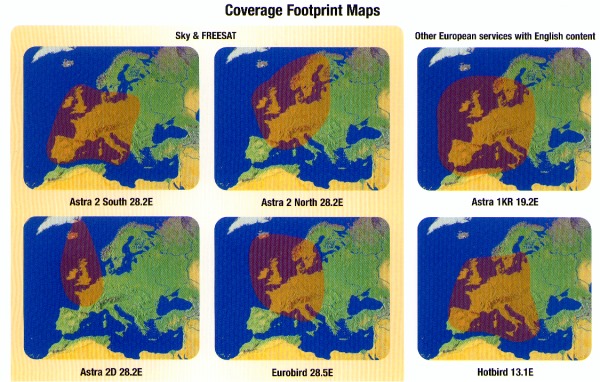

Does everything the standard meter above does, PLUS, designed for Astra at 28.2 degrees
North & South beam & all of the other satellites (as per the standard 2007 above.) Specification
is the same as the normal 2007 above except, programmed for use on both the 28E
North & South beam, The North beam is for most of Europe & the south beam is for most
of Spain. Ideal for installers in Spain that may require both facilities. Ideal for caravaners
and motorhomes that travel widely in Europe including Spain. see The caravan page
Complete with mains charger, leather case & car charger. An optional Lacuna "push" F connector
lead is available below. (Note. In the south of Spain the North beam requires a 1.8m dish but
the south beam only requires an 80cm)
(please note that sometimes the meter has a red case & sometimes a yellow one. Otherwise it is the same).
It is manufactured by Lacuna Systems in the UK. Satellite Superstore has been an authorised
Lacuna supplier since 1999 and we have a close relationship with the factory to provide good back up.
These new meters use a USB connection lead to upgrade the software. (See USB lead below at Ł4.95)
(UK Customers. Shipping is normally Ł10.00)
Special Internet only offer - free delivery only if ordered through the web site.
UK Customers. Choose the free shipping option - ONLY if ordering on-line (web order only).
Free UK delivery.
Choose the free delivery option.
Delivery to Spain,
We have had a great deal of problems with both post to Spain and cheaper couriers that
use the Spanish courier system when the item reaches Spain and so we will only send the
meter using a reliable express courier. This costs a little more but at least it is
reliable without loss or delay. The meter goes by TNT international and the cost is Ł38
Within the UK choose the free shipping option. (includes free delivery to offshore islands)
(That includes free delivery to N and S Ireland)
The free delivery is usually next day to UK destinations.
Special Offer - Free padded case. Free car charger.
Mains charger included.
Free UK delivery
AND free delivery to Eire
Order code LACUNNS
Now only Ł259.95 Great price.

Professional Meter Lead.

High quality fast 3m push-on F connector meter lead.

Lacuna Push Lead.

Manufactured by Lacuna Systems. Ideal for Wolsey Lacuna meters.
Also ideal for all satellite meters.
Also ideal for the Lacuna Terrestrial meter.
If you use a meter frequently, using a normal screw on F Connector lead is slow and creates
wear on the meter's socket. This lead pushes onto the meter and pushes onto the LNB for quick
efficient use. Ideal for installers. It is 3 meters long and "pushes on" to the LNB and meter. It offers
greater flexibility and easy of use when you are up a ladder reaching for a dish.
Absolutely ideal for installers or caravaners where the meter is used frequently.
This Lacuna Systems lead is exclusive to the Satellite Superstore.
(Delivery is free if ordered with a Lacuna meter, or,)
UK Customers. Choose the Ł3.95 small item standard shipping option,
or the Ł7.50 small item priority shipping option.
International. Choose an international option.
Order code PUSHLEA
Only Ł14.95

1.0m USB dowload lead for updating the
software in a Lacuna meter

USB download lead.

For Lacuna Mk 3 and Mk 4 satellite and Terrestrail meters.
Free UK delivery
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
Order code USBLEAD
ONLY Ł4.95

Dishes sold separely.

Clear transparent push-in-and-out arm,
60cm dish WITH 0.2dB Titanium LNB

fast push fit

These are the new Titanium second edition 0.2dB LNBs that are widely praised on many web sites.
The second edition has the gold connections and is very low noise. An ultimate performance LNB.
Quick to remove, push in and out arm for easy transportation. This is not the same clear
transparent dish on our fixed and motorised pages. This one has a fast pull out removable
boom arm for fast and easy dismantling and stowing away. Keep a low profile on a camp site
with this great dish. Also available with the lightweight fast folding aluminum stand below.
This dish has been specially modified for caravan / motorhome use by the Satellite Superstore
It is a special version not the same as those on our fixed and motorised pages and it also
uses wing nuts for fast erection and adjustment.
Mainland UK Customers. Choose the Ł10 standard shipping option, or the Ł12.95 "by weight" priority
shipping option.
UK offshore islands - please note that couriers make a surcharge and the delivery price is Ł19.95
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
Order code CL60CLN
Only Ł74.95

Clear transparent push-in-and-Out arm 60cm dish without LNB.

caravan clear dish

This dish has been specially modified for caravan / motorhome use by the Satellite Superstore
It is a special version not the same as those on our fixed and motorised pages and it also
uses wing nuts for fast erection and adjustment.
Mainland UK Customers. Choose the Ł10 standard shipping option, or the Ł12.95 "by weight" priority
shipping option.
UK offshore islands - please note that couriers make a surcharge and the delivery price is Ł19.95
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
Order code TRC60FW
Ł64.95.

Clear folding arm 80cm dish WITH 0.2dB Titanium LNB

85cm Clear dish

These are the new Titanium second edition 0.2dB LNBs that are widely praised on many web sites.
The second edition has the gold connections and is very low noise. An ultimate performance LNB.
Quick to fold up for easy transportation. 80 cm clear dish. This one has a folding arm
and is ideal for mobile / caravan use. Ideal for Sky / BBC etc. if touring Europe, southern France etc.
This dish has been specially modified for caravan / motorhome use by the Satellite Superstore
It is a special version not the same as those on our fixed and motorised pages and it also
uses wing nuts for fast erection and adjustment.
Mainland UK Customers. Choose the Ł10 standard shipping option, or the Ł12.95 "by weight" priority
shipping option.
UK offshore islands - please note that couriers make a surcharge and the delivery price is Ł19.95
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
Order code CLIC80L
Ł89.95

Clear folding arm 80cm dish without LNB

85cm Clear dish

Quick to fold up for easy transportation. 80 cm clear dish. This one has a folding arm
and is ideal for mobile / caravan use. Ideal for Sky / BBC etc. if touring Europe, southern France etc.
This dish has been specially modified for caravan / motorhome use by the Satellite Superstore
It is a special version not the same as those on our fixed and motorised pages and it also
uses wing nuts for fast erection and adjustment.
Mainland UK Customers. Choose the Ł10 standard shipping option, or the Ł12.95 "by weight" priority
shipping option.
UK offshore islands - please note that couriers make a surcharge and the delivery price is Ł19.95
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
Order code CLICK80
Ł79.95

Triax TD54, 51/56cm dish without LNB.

54cm dish

The latest Triax TD 54 on the right is Anthracite (black) not grey as in the older picture on the left.
We have left the picture of the old grey dish on the left so you can size it against the person.

Dish folds flat as arm folds up. (Ideal for Sky Digital in the UK.)
Our smallest folding arm dish.
51cm wide and 56 cm high. Small but very capable.
Also works on 19E and will even get many channels on the Hotbird.
Mainland UK Customers. Choose the Ł10 standard shipping option, or the Ł12.95 "by weight" priority
shipping option.
UK offshore islands - please note that couriers make a surcharge and the delivery price is Ł19.95
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
Order code TRI54FI
Ł22.50

Triax TD54, 51/56cm dish with 0.2dB Titanium LNB

54cm dish

These are the new Titanium second edition 0.2dB LNBs that are widely praised on many web sites.
The second edition has the gold connections and is very low noise. An ultimate performance LNB.
The latest Triax TD 54 on the right is Anthracite (black) not grey as in the older picture on the left.
We have left the picture of the old grey dish on the left so you can size it agains the person.
Mainland UK Customers. Choose the Ł10 standard shipping option, or the Ł12.95 "by weight" priority
shipping option.
UK offshore islands - please note that couriers make a surcharge and the delivery price is Ł19.95
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
Order code TRI54TI
Ł32.50

Triax TD64, 60/66 cm dish without LNB.

Triax dishes now black

Dish folds flat as arm folds up. Ideal for Sky Digital in the UK.
60cm wide and 66 cm high. This dish is shown above.
Also works on Astra 1 at 19E even in bad weather and many channels on the Hotbird.
Mainland UK Customers. Choose the Ł10 standard shipping option, or the Ł12.95 "by weight" priority
shipping option.
UK offshore islands - please note that couriers make a surcharge and the delivery price is Ł19.95
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
Order code TRI64FI
Ł25.00

Triax TD64, 60/66 cm dish with 0.2dB Titanium LNB

Triax dishes now black

These are the new Titanium second edition 0.2dB LNBs that are widely praised on many web sites.
The second edition has the gold connections and is very low noise. An ultimate performance LNB.
Mainland UK Customers. Choose the Ł10 standard shipping option, or the Ł12.95 "by weight" priority
shipping option.
UK offshore islands - please note that couriers make a surcharge and the delivery price is Ł19.95
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
Order code TRI64TI
Ł35.00

Triax TD78, 80cm dish without LNB

Triax dishes now black

Dish folds flat as arm folds up. (Ideal for Sky Digital as far south as Paris.)
Mainland UK Customers. Choose the Ł10 standard shipping option, or the Ł12.95 "by weight" priority
shipping option.
UK offshore islands - please note that couriers make a surcharge and the delivery price is Ł19.95
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
Order code TRI78FI
Ł35.00.

Triax TD78, 80cm dish with 0.2dB Titanium LNB

Triax dishes now black

These are the new Titanium second edition 0.2dB LNBs that are widely praised on many web sites.
The second edition has the gold connections and is very low noise. An ultimate performance LNB.
Mainland UK Customers. Choose the Ł10 standard shipping option, or the Ł12.95 "by weight" priority
shipping option.
UK offshore islands - please note that couriers make a surcharge and the delivery price is Ł19.95
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
Order code TRI78TI
ONLY Ł45.00

Triax TD88, 90cm dish without LNB.>

Triax dish against sky

"Pole mount design" (i.e. fits on a vertical pole). The correct wall mount for this dish
is lower down the page. Only Ł9.95
Dish folds flat as arm folds up. (Ideal for Sky Digital as far as the south coast of France.)
Mainland UK Customers. Choose the Ł10 standard shipping option, or the Ł12.95 "by weight" priority
shipping option.
UK offshore islands - please note that couriers make a surcharge and the delivery price is Ł19.95
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
Order code TRI88FI
Ł45.00.

Triax TD88, 90cm dish with 0.2dB Titanium LNB

Triax dish against sky

These are the new Titanium second edition 0.2dB LNBs that are widely praised on many web sites.
The second edition has the gold connections and is very low noise. An ultimate performance LNB.
"Pole mount design" (i.e. fits on a vertical pole). The correct wall mount for this dish
is lower down the page. Only Ł9.95
Mainland UK Customers. Choose the Ł10 standard shipping option, or the Ł12.95 "by weight" priority
shipping option.
UK offshore islands - please note that couriers make a surcharge and the delivery price is Ł19.95
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
Order code TRI88TI
Ł55.00

Aluminum 1.0m+ Orbital dish with
0.2dB Titanium LNB.

orgital dish.

This is the new Titanium second edition LNB that is widely praised on many web sites.
It has the gold connections and is very low noise. An ultimate performance LNB.
This is the largest dish that can easily be carried and is lightweight aluminum.
It has to be assembled but wing nuts make that job easier.
The dish is actually 107cm high and so has much more gain than a 1.0m dish. Good for touring in Spain.
UK delivery. Choose the FREE DELIVERY option.
(excludes off-shore islands and N Ireland, however delivery to offshore islands is discounted from Ł19.95 to Ł10)
Delivery to S IRELAND is only Ł10. Choose the Ł10 option.
Order code ORB10MW
Ł84.95

Using 12 volts.

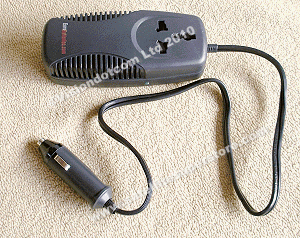

12 Volt inverter.

12V inverter. Very small. Plugs into 12V accessory socket

75W 12V inverter

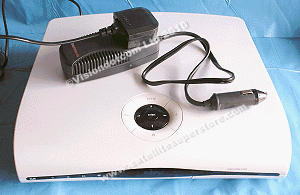

See the Thompson (left) and Pace (middle) Sky receivers above and the Manhattan free to air 9900 (right)
The Manhattan is our smallest receiver. Even so, notice how small the inverter is.
Converts a 240 volt satellite receiver for use into a 12 volt supply.
The inverter takes appliances up to 75W and so since satellite receivers use only 30W
there is no problem - it is more than capable of running continuously.
UK delivery on this item is Ł3.95 standard or Ł7.50 priority.
(If you are adding it to an order for a Sky satellite receiver it would go on the same free delivery.)
Availability : In stock and ready for immediate shipping.
Order Code INVERTE
Only Ł19.95

Sky satellite receivers.

Pace DS445N Sky Digital receiver.

In stock and ready for immediate delivery.

Pace 445N Sky Digital receiver

"Designer" Sky Digital receiver
Brand new, (we don't sell second hand goods) boxed and complete with handset, all leads and manual.
Choose the free UK delivery option.
(excludes off-shore islands and N Ireland, however delivery to offshore islands is discounted from Ł19.95 to Ł12.95
so choose the Ł12.95 option. Delivery to S IRELAND is also only Ł12.95 Choose the Ł12.95 option.)
Only receivers on this page. For complete Digibox systems (with a dish) go to the Sky Digibox page.
For spare Sky + handsets and TV eyes go to Sky Accessories
Availability : In stock and ready for immediate shipping.
Order Code TOMDIGI
Only Ł99.95

The Pace TDS470N twin tuner Sky + Sky Digital receiver
with built in 160 Gb hard drive.

In stock and ready for immediate delivery.

4 output LNB included.

Sky 4 output LNB

When upgrading from a standard receiver to a Sky +, the LNB needs changing to this new one (included) and an
extra cable needs fitting. When replacing an existing Sky Plus, the LNB will not need replacing but having
a spare LNB in stock means that at some point in the future when the LNB fails, you will have a spare one.
One of the other LNB outputs could be used for an existing Digibox if required.
The Sky + has a built in hard drive and can record up to 80 hours of programming.
This is the reliable Pace TDS470N 160 Gb Sky Plus.
This is not an upgraded 40Gb unit. It comes direct from Pace with the 160Gb hard drive already fitted.
(The Pace web site quotes 160Gb but a large amount of the drive is used for the Sky operating system and
depending on the set up, the usable space, as stated also on the Pace web site, is between 80Gb and 160Gb.
The actual box quotes usable at 80Gb. Either way up to 50 hours is available.)
The record menus are an integral part of the electronic program guide and so the operation is extremely
simple. Much easier to use than a VCR. Please note that a Sky+ must be used with a Sky subscription if
the hard drive is to be used for recording. It cannot be used just for free to air channels or with
a “Freesat card” as the hard drive would not work. If upgrading or changing from an existing
box / card / subscription, Sky must activate the card to work with the new Sky+ or the hard drive
will not work. A phone call to Sky is all that is needed to do this.
Features,
Pause LIVE broadcasts. Record one channel watch another. Pause live broadcasts. Please note that Sky
may have additional charges for the record facility depending on the package selected.
(The Sky + can be used as a standard receiver without using the hard drive with no extra charges.)
The Sky + has a Dolby Digital output for the sound (uses a TOS lead available separately below) to
connect to an AV amplifier. The digital sound works in Dolby Digital if the source programming
is also encoded. Complete kit with handset, leads and manual. Brand new. We only sell new products.
This Pace 470 Sky + is in stock & ready for immediate delivery. The free delivery usually gets there next day
For spare Sky + handsets and TV eyes see Sky Accessories.
For more information on hard drive receivers see Receivers with Hard Drives.
For more information on the implications of subscribing etc. see FAQ No 1 on Advice page 2.
(UK Customers. Shipping is normally Ł12.95.)
Special Internet only offer - free delivery only if ordered through the web site.
Note that free deliveried often get there next day if ordered by the cut-off time.
UK Customers. Choose the free shipping option - ONLY if ordering on-line.
(excludes off-shore islands and N Ireland, however delivery to offshore islands is discounted from Ł19.95 to Ł12.95
so choose the Ł12.95 option. Delivery to S IRELAND is also only Ł12.95 Choose the Ł12.95 option.)
Choose the free UK delivery option (web orders only).
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
Order Code PACE470
Only Ł149.95

Free to air satellite receivers.

Manhattan Plaza XT-M
Twin multicam - 2 card Readers.

Multicard readers work with all cards.

These are the latest Plaza receivers with the new fast processor for even faster blind search.
We are authorized Manhattan dealers. All receivers are sent out in an outer box to protect manufactures
packaging (no damaged boxes with courier stickers on them) so they arrive perfect.
Why pay for goods that arrive covered in stickers and damaged? At the Satellite Superstore
we know you want us to do things right and provide good support.
Fantastic FAST blind search capability.
6500 channels. Fast channel change. Sensitive tuner. Low symbol rate scanning. Small and neat.
IF loop through, UHF loop through, 2 scart sockets and phono outputs
Dolby Digital output for the sound.
Dolby Digital.
Small. Ideal for caravans.
This receiver works with ALL cards. Take your card from home with you!
Many manufacturers have a digital output for the sound on their more expensive models.
What manufacturers do not tell you is they have not paid for the "Dolby Digital" license and
the digital output IS NOT Dolby digital surround sound. All Manhattan Plaza receivers ARE
Dolby Digital surround sound from the digital output (providing the channel actually transmits
in Dolby Digital. (Some do and some don’t) Diseqc 1.2, USALS.
Mainland UK delivery. Receiver only - choose the Ł10.00 standard delivery option or the priority Ł12.95 option.
Offshore Islands - receiver only shipping is Ł19.95 - shipping a system to an offshore island is Ł30
International. Choose the international option.
Availability : In stock and ready for immediate shipping.
Order Code MANHXTM
ONLY Ł69.95

Technomate TM 3500 USB
Hard Drive Ready (external)

Please note that we are official distributors for Technomate
Embedded multicam receiver.
Note. We only sell UK models. We do not sell "grey imports"
All receivers sent out are packed in an outer box to protect the manufacturers box.
We like receivers to arrive at the customer in perfect condition.
This receiver van be connected to an external hard drive via the USB connection
for the recording and playback of programs.
LNB loop through. UHF modulator loop though. 10,000 channels.
Digital output for the sound. This is another very small receiver.
This receiver works with ALL cards. Take your card from home with you!
USB allows you to record TV on an external hard drive. 300Gb and 500Gb hard drives are above.
Please note that these hard drives have been specially prepared to work with these receivers and
buying a hard drive from a shop is unlikely to work without considerable preparation software.
UK mainland delivery. Choose the standard Ł10 option or the Ł12.95 priority option.
Offshore islands - the delivery charge is Ł19.95
International. Choose the international option.
If you want a complete system based on this receiver, add the dish kit of your choice.
There are many dish kits, 60cm, 80cm, 90cm, Astra and Hotbird, Astra 1, 2, and Hotbird, transparent dishes,
all of these are lower down the page below the receivers. Add a dish kit of your choice.
Availability : In stock and ready for immediate shipping.
Order code TE3500U
ONLY Ł79.95

Special offer - Technomate TM 3500 D+ USB with hard drive.

Attractive matching hard drive enclosure. Works great with the Technomate the 3500 receiver.
Built in almost silent cooling fan. A high quality product. Works great.
Please note that these hard drives have been specially prepared to work with these receivers and
buying a hard drive from a shop is unlikely to work without considerable preparation software.
Recording from your Technomate receiver is made easy with these hard drives.
No formatting to do. These units are all fully prepared and tested with a Technomate HD
receiver. They are plug in and use straight away.
Mains power supply and USB lead connection included.
UK mainland delivery. Choose the standard Ł10 option or the Ł12.95 priority option.
Offshore islands - the delivery charge is Ł19.95. International. Choose the international option.
If you want a complete system based on this receiver, add the dish kit of your choice.
There are many dish kits, 60cm, 80cm, 90cm, Astra and Hotbird, Astra 1, 2, and Hotbird, transparent dishes,
all of these are lower down the page below the receivers. Add a dish kit of your choice.
SAVE Ł25. That is Ł25 off the buying separately prices.
(And the buying separately prices are low to start with!)
Availability : In stock and ready for immediate shipping.
Full pre-programming of the 3500 is available below.

Technomate TM 3500 D+ USB with 300Gb hard drive.
Order code TE35003
ONLY Ł164.90

Technomate TM 3500 CI+ USB with 500Gb hard drive.
Order code TE35005
ONLY Ł214.90

Technomate TM 5200 D USB
Hard Drive Ready (external)

Technomate 1000

Please note that we are official distributors for Technomate
Free to air BLIND SEARCH receiver.
Note. We only sell UK models. We do not sell "grey imports"
All receivers sent out are packed in an outer box to protect the manufacturers box.
We like receivers to arrive at the customer in perfect condition.
This receiver van be connected to an external hard drive via the USB connection
for the recording and playback of programs.
LNB loop through. UHF modulator loop though. 10,000 channels.
Digital output for the sound.
USB allows you to record TV on an external hard drive. 300Gb and 500Gb hard drives are below.
Please note that these hard drives have been specially prepared to work with these receivers and
buying a hard drive from a shop is unlikely to work without considerable preparation software.
UK mainland delivery. Choose the standard Ł10 option or the Ł12.95 priority option.
Offshore islands - the delivery charge is Ł19.95
International. Choose the international option.
If you want a complete system based on this receiver, add the dish kit of your choice.
There are many dish kits, 60cm, 80cm, 90cm, Astra and Hotbird, Astra 1, 2, and Hotbird, transparent dishes,
all of these are lower down the page below the receivers. Add a dish kit of your choice.
Availability : In stock and ready for immediate shipping.
Order code TE5200D
ONLY Ł59.95

Grundig GUFSAT01HD high defintion
"Freesat" 12V mini receiver.

Grundig GUFSAT01HD high defintion Freesat receiver

Built for the "Freesat" service from 28E. Dedicated Freesat EPG (electronic program guide)
showing channel listings in advance.
12 volts but mains power supply (PS) included (see PS plug above). Small compact receiver.
Standard and high definition. Dolby Digital output for the sound. Scart lead included.
Special Internet only offer,
FREE UK mainland delivery only if ordered through the web site.
Shipping to either N or S Ireland is discounted from Ł19.95 to Ł12.95 if ordered on the web.
Customers in Ireland or other UK offshore islands should choose the Ł12.95 shipping option
Mainland UK Customers. Choose the free shipping option - ONLY if ordering on-line.
Please note that, although not guaranteed, many free deliveries are getting there next day
if the order comes in before our cut off times.
International. Choose an international option.
A FREE high quality HDMI to HDMI lead is included with all web orders.
Order code GRUFREE
ONLY Ł149.95

Digital Satellite Compass.

Digital Compass

Provides the direction of the following satellites,
Astra 1 (19E), Astra 2 (Sky) (28E), Hotbird (13E), Sirius 2/3 (5E),
Thor 1/2/3 (1W), Telicom 2C (5W), Telecom 2AD (8W),
An ideal tool to help you set up a satellite dish.
Detailed instructions included.
UK Customers. Choose the Ł3.95 small item standard shipping option,
or the Ł7.50 small item priority shipping option.
International. Choose an international option.
Availability : In stock and ready for immediate shipping.
Order code, DIGICOM
Only Ł32.95 Great Price.

Dish Kit Option - Digital Satellite Compass.

Digital Compass

If you are buying a dish kit including dish, stand, Lensatic compass etc. and would
like to upgrade your order from a Lensatic compass to a digital one,
you can do so by adding this dish kit option.
i.e. We take out the Lensatic compass from the kit and put in a digital one
and you pay the difference in price between the two.
Order code, OPTICOM
Add Ł25.00 to my kit order

Lensatic Compass.

Acrylic material. Transparent cover and case. Double magnifier
structure for easy reading. Floating luminous dial for direction in dark.
A very high quality compass for the installer. Use to point the dish in the correct direction.
(Should be used with a satellite meter for fine adjustment.)
UK Customers. Choose the free delivery option.
International. Choose an international option.
Order code, COMPASS
Only Ł7.95

Travelsat Digismart Mk II fully automatic
self seeking 65cm or 85cm satellite dish.

Ideal for Caravans or Motor Homes.

Travelsat Mk I dish open picture

Travelsat Mk I dish folded down dish picture

Plug it in, the dish rotates and searches. It finds the satellite automatically. Weight 18Kg
Quick and easy. Easy to install. (Motorised). Set it so that the default satellite is 28E Sky and as soon as you
turn it on it finds Sky! Programmed to find 16 other satellites. 19E 13e 5E 1W etc.
Available in various dish sizes. Much cheaper than any other brands and easier to use.
Can be bolted to the roof of a motorhome. Can be used with any receiver, Sky Digibox, CI Digital etc.
Here are the latest pictures of the new Travelsat Mk II.
The pictures below show the 85cm dish.

Question 1. What wind speed is the safe maximum when fitted with the 80cm dish? Answer 1. 50mph.
Question 2. How does the manufacturer recommend fitting it to the roof i.e. how many bolts, sizes etc?
Answer 2. bonding is recommended. It is supplied with a plate that is bonded by a caravan centre,
then 4 bolts are used to fit it.
Question 3. What voltage does it work on? Answer 3. 12V
Question 4. Does it automatically fold down when the caravan to cat power supply is connected?
Answer 4. Down to the installer. When power to receiver is shut off - yes if properly installed.

Free UK delivery on this product.
Choose the free delivery option.

65cm dish Travelsat kit,
Order code AUTOS65
Ł1349.95

85cm dish Travelsat kit,
Order code AUTOS85
Ł1399.95

Maxview Omnisat Crank-up roof mounting 66cm dish kit.

Ideal for Caravans or Motor Homes.

Maxview crank-up roof mounting dish kit

Omnisat 66cm Manual 'Crank Up' satellite dish kit system. Comes with 2 years Maxview guarantee.
Customer Quotes "The ease of the fitting and operation, combined with excellent value
for money, make the Crank Up an obvious choice for any leisure vehicle" Bill, RDH Motorhome Centre
Raised Height : 79cm. Height of dish when down : 26cm
Weight of system : 10 Kg. Mounting Plate : 50cm x 50cm.
Free UK delivery on this product.
Choose the free delivery option.
Southern Ireland - Choose the discounted Ł12.95 delivery option.
Web only special offer. Free Lensatic compass with all web orders.

Compass

Prices include VAT

Maxview Omnisat Crank-up roof
mounting 66cm dish kit.
Free UK delivery
Order code MXCRAN
ONLY Ł359.95

Maxview Omnisat crank-up TWIN LNB
roof mounting 66cm dish kit.
This unit uses a twin LNB and two cables. Idea for Sky Plus, Sky HD and other twin tuner receivers.
Free UK delivery
Order code MXCRAT
ONLY Ł459.95

Mobilsat tracking dome and receiver.

Ideal for SUVs (4X4s) Motorhomes, RVs, Buses, Trucks ....

Mobilsat on an SUV

Mobilsat controller, satellite receiver.

Tracks while travelling.

The mobilsat is like the type of domes they use on ships. It automatically tracks a
satellite while on the move. While driving, rear seat passengers can watch satellite TV.
The dish is equivalent to a 40cm unit and so it works on 28E (e.g. Sky TV or the BBC) and
it will also work on some of the higher power channels on Astra 1 and Hotbird.
As the vehicle turns, the dish rotates in the dome and tracks the channel.
The control unit is just like a car radio and fits a radio slot. This control unit is also a
satellite receiver. This control unit / receiver simply connects to the dome with a standard satellite
coaxial cable. 12 volts is connected and the control unit is connected to a TV with a lead. All
very simple to set up. The control unit receiver also has an LNB loop through so it could loop
out to a Sky Digibox if required. Many satellites can be tuned in and the menu structure
is simple and easy to use from the remote control provided.
If fitted to an SUV, the dome could be bolted to a small roof rack and quickly fitted for longer trips.
Stationary or moving, it will provide satellite TV in a vehicle.
Free UK delivery on this product.
Choose the free delivery option.
Order code MOBILSA
Ł1850.00

Ultimate Digital Cable

Ulimate Digital Cable

As used in the full caravan dish kits above
High digital specification cable. Made in Germany to very high standards.
For connection between LNB and satellite receiver. If you have a high quality satellite system - use the best cable.
Flexible with similar dimensions to normal satellite cable (use normal F connectors).
Solid inner dielectric core so that moisture cannot get in. (Low grade cable is air cored.)
Use the best for trouble free digital reception. This cable has "DIGITAL" written on it every 1m.
along it's length. 70m of cable is the maximum length recommended length for good satellite cable but
with a high output LNB we have had good results (on a farm) up to 110m! Very low attenuation per metre.
Available in black or white. White can be better on light coloured houses or indoors against skirting boards.
This is the cable we include in the free fitting kit with full motorised systems.
Priced per metre. To add the correct length,
1. Add one metre to the cart.
2. Go to the top of this page and select "review cart".
3. In the "Qty" (Quantity) box change "1" to the number of metres required.
4. Then click on the "Modify Cart" button to update the quantity (the price is also calculated in the total column).
5. Then select "Previous Page" to return to this page.
UK Shipping, cable is heavy. It can go on a Ł7.50 insured post up to 20m
But for over 20m please choose either the standard Ł10 option or the "by weight" priority option.

Black Ultimate Digi Cable.
Order code DIGICAB
Ł0.99 per metre

White Ultimate Digi Cable.
Order code DIGICAW
Ł0.99 per metre

Made up lengths of Digi Cable using compression F connectors.
See pictures of these very high quality compression F connectors below in the connectors section.
Other lengths can be made up if you order on the phone.

20m of Black Ultimate Digi cable made up with compression F connectors
Choose the Ł7.50 delivery charge.
Order code 20DIGIB
Ł19.95

20m of White Ultimate Digi cable made up with compression F connectors
Choose the Ł7.50 delivery charge.
Order code 20DIGIW
Ł19.95

30m of Black Ultimate Digi cable made up with compression F connectors
Choose the Ł7.50 delivery charge.
Order code 30DIGIB
Ł29.95

30m of White Ultimate Digi cable made up with compression F connectors
Choose the Ł7.50 delivery charge.
Order code 30DIGIW
Ł29.95

Twist on F Connectors

Fits all of our analogue or digital cables.
If you require more than one please "add to cart" several times.
Order code FCONNEC
Ł0.15 each

Weather boot

Fits our F connectors.
If you require more than one please "add to cart" several times, or
Select "Change Quantity" box after adding to cart.
Order code WEATHER
Ł0.99 each

Satcatcher Digipro Exel-TV satellite meter.

Built in satellite TV and spectrum information. Identifies satellite.

Satcatcher satellite meter TV

Identifies the satellite, provides spectrum information and allows the checking of the satellite
with a built in satellite receiver and TV. Works on both picture and sound. Many satellites in the memory.
Case included. Mains charger and car charger included. USB lead for upgrading the software included.
The car charger is actually a small inverter and so this means that from the car, fast charging is possible.
The meter comes in a strong padded case. This meter only weighs 892 grams - light to carry!
This meter also switches a Diseqc switch and drives a Diseqc motor east and west.
45 satellites are stored and identified between 45 east and 45 west.
Features in more detail,
SPECTRUM Analyzer FUNCTION: See the peaks of the transponder you are looking for. Save the picture
to memory for later use. Store 8 pictures of your most used satellites.
Some Engineers have used very expensive devices for many years to view the spectrum picture of the incoming satellite
signals. These devises are costing thousands of Pounds and without exception are difficult to set up and use.
Again Satcatcher has taken note of the engineers request and developed this fantastic product.
Diseqc switching included. Diseqc Motor controls... Go to zero , move left and right ,Go to position auto based on
longitude and latitude settings. Spectrum screen ,with zoom and attenuation functions. Dual Bar graph display ,showing
signal , strength , quality , BER, Carrier to noise and lock indicator in one screen. Location screen display , showing
picture view of , dish position in relation to due south , azimuth calculations, elevation calculation and degrees
position in numerical figures. Very large memory. Spectrum save memory, satellite entry memory area for 80 entries and
80 entries for saved data. Satcatcher allows you to Add, edit , delete and store entries at super fast speed by using the
onboard 17 digit keypad. If you have more time , then connect to the PC and use the provided editor
to build your own unique files. This is probably the ultimate satellite meter currently available.
This is definitely the ultimate caravan meter available.
(Mainland UK Customers - shipping is normally Ł12.95 - Offshore Islands and Eire - normally Ł19.95 - We use a fast courier.)
Special Internet only offer - free delivery only if ordered through the web site
and a free large heavy duty angle finder and a Lensatic compass free with internet orders.
That's an extra Ł27.95 worth of free extra products and free delivery for on-line orders only.

Free Lensatic Compass

UK Customers and Ireland. Choose the free shipping option - ONLY if ordering on-line (web order only).
Within the UK choose the free shipping option. (includes free delivery to offshore islands)
(That includes free delivery to N and S Ireland)
The free delivery is usually next day to UK destinations.
Free UK delivery
AND free delivery to Eire
(Ł449.00 + VAT)
Order code, SACATCH
Ł527.58

How big a dish can I carry in Spain?

The biggest dish we do with a folding arm is the Triax TD 88 90cm dish.
This will work in most of Europe including southern France but will struggle Spain,
only working North of Barcelona on all channels. It will work in all of Spain on some
channels but the weakest channels are the BBC and ITV and they really need a 1.0m dish
by the time you get to Barcelona and bigger even further south.
We have sold the excellent 1.0m Aluminum Funke dish to tourers in Spain as this dish
is light and quite easy to carry but it does not have a folding arm and 4 bolts need
taking out to remove the reflector. Buying some wing nuts will make this process faster.
The Triax 1.1m dish which might work on the weakest channels as far south as Madrid
is a big heavy dish to carry and could, with some modification have a folding arm.
The arm does fold like the TD 88 but the reflector would need cutting with a hacksaw
above where the arm comes through to give it the clearance to fold without the reflector
getting in the way. It will fold if this modification is done.
See The fixed dishes page and the "Spain" page

Dish sizes disclaimer.
Please not that dish sizes vary.
Manufactures quote a particular size of dish, however, dishes are not circular, they are
oval and the dish diameter referred to in their literature and on our site is an
approximation and should not be taken as an exact dimension.

(All prices on this page include VAT.)

Links to site pages,

Advice Support TrainingVideos Multiswitches
