Triax 5 in and 8, 12, 16, 24 & 32 output multiswitches
All 5 input multiswitches are now fitted with earthing bars as shown on the 16 out unit above
Designed to be used with a
Quatro LNB. 5 in 8 out, 5 in 12 out and 5 in and 16 out
i.e. aerial and the 4 LNB connections in make up the 5 in. Built in power supply.
Use with a Quatro LNB to provide a dish point in every room in a block of flats, or office etc.
Our technical support line for our customers is able to provide
advice on the installation of all multiswitches.
TV, FM and DAB aerial combiners that feed several aerials into a multiswitch and UHF, Satellite
outlet plates for the wall are lower down the page. (Everything can go down one cable to a room.)
New 5 in, 24 out and 32 out multiswitches are now available.
Shipping options. Discounted shipping on all web orders.
UK -
mainland UK delivery is included in the price,
so choose "
Mainland UK delivery included" - UK shipping option No 1.
Or the £15 to a "
UK offshore island (and Eire) by courier" - UK (and Eire) shipping option No 2.
Please note that, although not guaranteed, many uk deliveries are getting there next day
if the order comes in before our cut off times.
International - within the EU - choose the £38 "
up to 5Kg by courier to EU countries"
shipping option
International - outside of the EU - choose the "
International shipping quote by e-mail" shipping
option.

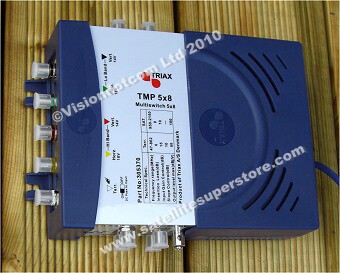

5 in 8 out Multiswitch.
Powered multiswitch. Built in power supply. Plug into 220/240 volts.
Order code 5IN8OUT
£99.95

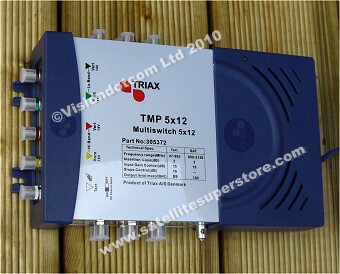

5 in 12 out Multiswitch.
Powered multiswitch. Built in power supply. Plug into 220/240 volts.
Order code 5IN12OU
£129.95
5 in 16 out Multiswitch.
Powered multiswitch. Built in power supply. Plug into 220/240 volts.
Order code 5IN16OU
£152.50

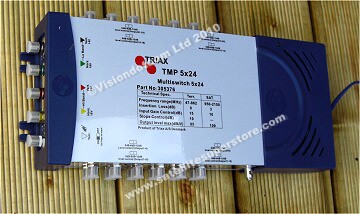

5 in 24 out Multiswitch.
Powered multiswitch. Built in power supply. Plug into 220/240 volts.
Order code 5IN24OU
£219.95
5 in 32 out Multiswitch.
Powered multiswitch. Built in power supply. Plug into 220/240 volts.
Order code 5IN32OU
£254.95

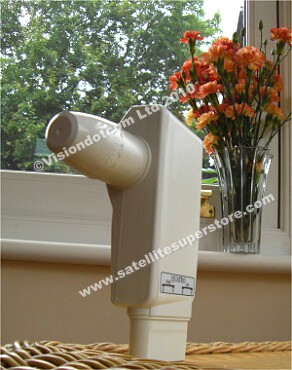

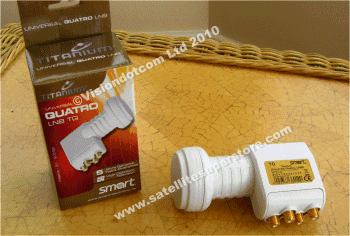

Quatro LNBs.
Click here for quatro LNBs to go with your multiswitch.

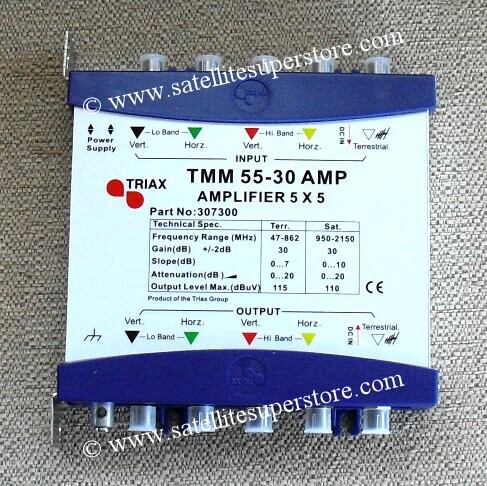

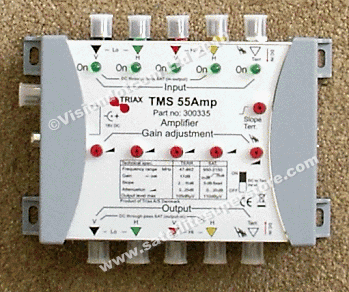

Triax 5 in and 5 out IF Amp.
Goes before the multiswitch to provide amplification. This unit is especially recommended
when a splitter (see below) is used. Takes the feeds from a quatro LNB and an aerial
feed and amplifies them. This unit takes its power from the multiswitch.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"
UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post."
shipping option
Order code 5IN5AMP
£99.95
Triax 5 in and 10 out or 20 out IF Splitters.
This unit goes before the multiswitch to split the 4 signals from a quatro LNB
and the aerial feed to two multiswitches. This then allows more than
32 outputs to be made available.
e.g. feeds two 32 out multiswitches to provive 64 outputs. When using a splitter
it is recommended that a 5 in and 5 out amp (see above) is fitted before
(in front of) the splitter.
e.g. The quatro LNB and aerial feeds the amp (1 UHF and 4 IF signals) and the
amp feeds the splitter (1 UHF and 4 IF signals) then the splitter with
(2 UHF and 8 IF signals) two sets of 1 UHF and 4 IF signals feeds two
32 output multiswitches. This unit is passive and does not need a power supply.
It is important to use it with the 5 in and 5 out amp above.
using the 5 in and 20 out splitter four 32 out multiswitches could be used OR
four of any of the other 5 input switches
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"
UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post."
shipping option
Triax 5 in and 10 out IF Splitter.
Order code 5IN10TA
£59.95
Triax 5 in and 20 out IF Splitter.
Order code 5IN20TA
£84.95

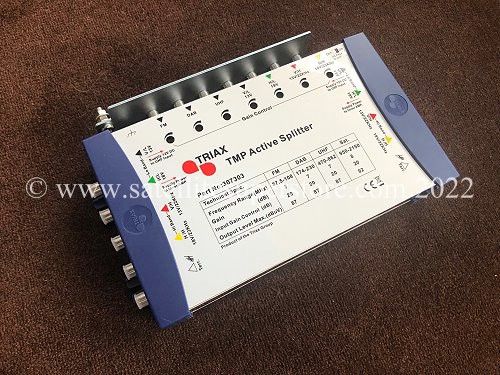

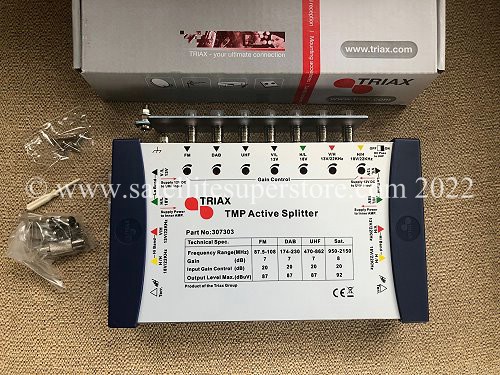

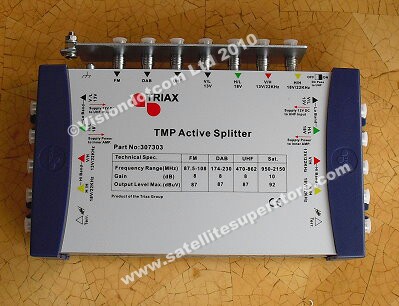

Combined amp and splitter. 7 in and 10 out active splitter
3 products in 1 unit!
Providing cable runs between this splitter / amp and the two multiswitches are less than 30m
(Cable runs from the multiswitch to the most distant room can still be up to 60m)
this unit takes the place of the 55 Amp above (5 in and 5 out) and the 5 in and 10 out
splitter and a combiner. The amp works like the 55 amp but has less gain. This unit is
ideal as it combines two units at an attracive price. The internal amp makes up for
losses in the splitter and provides a small gain. However, for longer splitter to
multiswitch cable runs the separate units above must be used as the 55 Amp has more
gain. This unit has inputs for 3 aerials, e.g. TV, FM and DAB and so this product
can take the place of the 5 by 5 amp, the 5 by 10 splitter and the aerial combiner
This makes it even better value for money and easier to install.
This unit goes in front of two multiswitches and allows one quatro LNB
to provide a signal to both multiswitches.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"
UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post."
shipping option
Order code 5X10AMP
£114.95
Important Information.
There is nothing difficult in fitting multiswitch systems. We can provide our customers with the technical
information needed. Mostly it is a wiring job and the multiswitch etc. side of it is easy to understand.
The cost of the parts is not expensive and the myths around this subject are false. It is easier
than you think. Satellite Superstore used to fit this equipment to schools, colleges,
blocks of flats etc. before we became 100% mail order. Out technical advice is based on
many years of experience with these products.

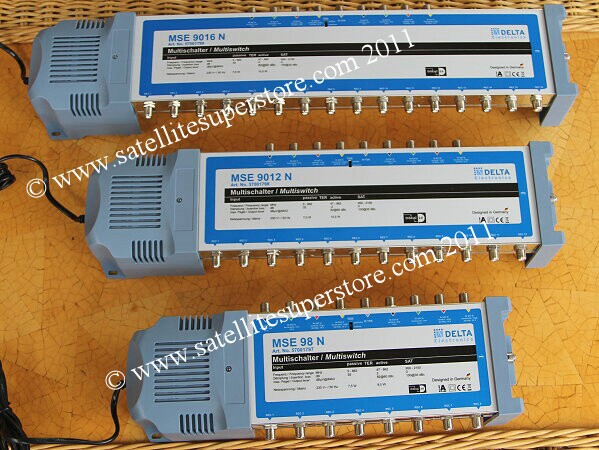

Multiswitches with 2 satellite inputs.
9 by 24 outputs and 9 by 32 outputs also available below.
If Astra 2 at 28E is connected to "quatro LNB input number 1" the switches default to this
input and so even though a Sky receiver does not have Diseqc switching, if connected
to an output (via a plate on the wall) it will receive 28E automatically. This means
that Sky receivers and CI Diseqc receivers can all be connected to any output.
Sky receivers will receive 28E (only) and CI receivers both satellites.
Our technical support line for our customers is able to provide
advice on the installation of all multiswitches.
TV, FM and DAB aerial combiners that feed several aerials into a multiswitch and UHF, Satellite
outlet plates for the wall are lower down the page. (Everything can go down one cable to a room.)
Shipping options. Discounted shipping on all web orders.
UK -
mainland UK delivery is included in the price,
so choose "
Mainland UK delivery included" - UK shipping option No 1.
Or the £15 to a "
UK offshore island (and Eire) by courier" - UK (and Eire) shipping option No 2.
Please note that, although not guaranteed, many uk deliveries are getting there next day
if the order comes in before our cut off times.
International - within the EU - choose the £38 "
up to 5Kg by courier to EU countries"
shipping option
International - outside of the EU - choose the "
International shipping quote by e-mail" shipping
option.

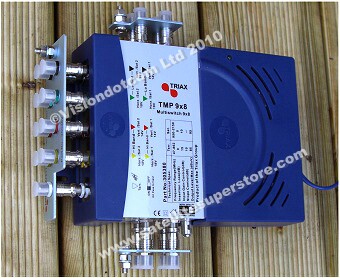

9 in 8 out Multiswitch.
Powered multiswitch. Built in power supply. Plug into 220/240 volts.
This multiswitch has 9 inputs. Two quatro LNBs (pointing at two different satellites)
feed into eight of the inputs. A terrestrial aerial feeds into the ninth input
Diseqc switching between the two satellites is built into the multiswitch.
The 8 outputs go to 8 satellite receivers. Each satellite receiver can access
both satellites. (Or, 4 twin tuner receivers)
Order code 9IN8OUT
£144.95

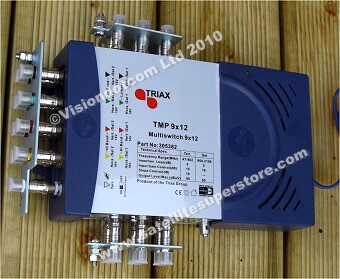

9 in 12 out Multiswitch.
This multiswitch has 9 inputs. Two quatro LNBs (pointing at two different satellites)
feed into eight of the inputs. A terrestrial aerial feeds into the ninth input
Diseqc switching between the two satellites is built into the multiswitch.
The 12 outputs go to 12 satellite receivers. Each satellite receiver can access
both satellites. (Or, 6 twin tuner receivers)
Order code 9IN12OU
£184.95

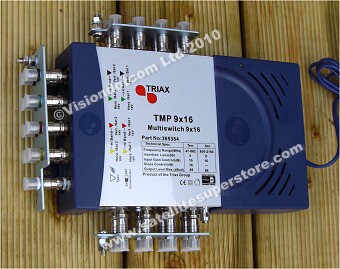

9 in 16 out Multiswitch.
This multiswitch has 9 inputs. Two quatro LNBs (pointing at two different satellites)
feed into eight of the inputs. A terrestrial aerial feeds into the ninth input
Diseqc switching between the two satellites is built into the multiswitch.
The 16 outputs go to 16 satellite receivers. Each satellite receiver can access
both satellites. (Or, 8 twin tuner receivers)
Order code 9IN16OU
£224.95
9 in 24 out Multiswitch.
This multiswitch has 9 inputs. Two quatro LNBs (pointing at two different satellites)
feed into eight of the inputs. A terrestrial aerial feeds into the ninth input
Diseqc switching between the two satellites is built into the multiswitch.
The 24 outputs go to 24 satellite receivers. Each satellite receiver can access
both satellites. (Or, 12 twin tuner receivers)
Order code 9IN24OU
£326.95
9 in 32 out Multiswitch.
This multiswitch has 9 inputs. Two quatro LNBs (pointing at two different satellites)
feed into eight of the inputs. A terrestrial aerial feeds into the ninth input
Diseqc switching between the two satellites is built into the multiswitch.
The 32 outputs go to 32 satellite receivers. Each satellite receiver can access
both satellites. (Or, 16 twin tuner receivers)
Order code 9IN32OU
£374.95

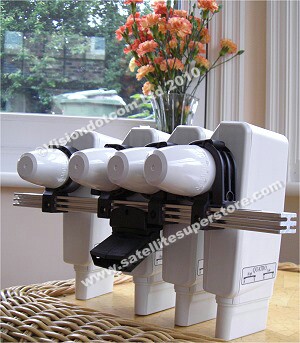

3 and 4 sat quatro LNB / dish kits.
Click here for 3 and 4 satellite quatro LNBs dish kits and multibrackets.
Multiswitches with 4 satellite inputs.
17 in multiswitches with power supply.
If Astra 2 at 28E is connected to "quatro LNB input number 1" the switches default to this
input and so even though a Sky receiver does not have Diseqc switching, if connected
to an output (via a plate on the wall) it will receive 28E automatically. This means
that Sky receivers and CI Diseqc receivers can all be connected to any output.
Sky receivers will receive 28E (only) and CI receivers all 4 satellites.
Our technical support line for our customers is able to provide
advice on the installation of all multiswitches.
TV, FM and DAB aerial combiners that feed several aerials into a multiswitch and UHF, Satellite
outlet plates for the wall are lower down the page. (Everything can go down one cable to a room.)

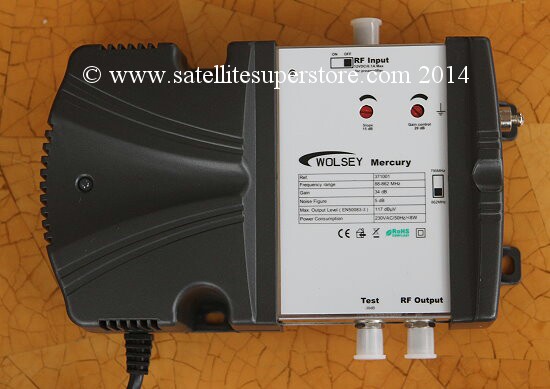

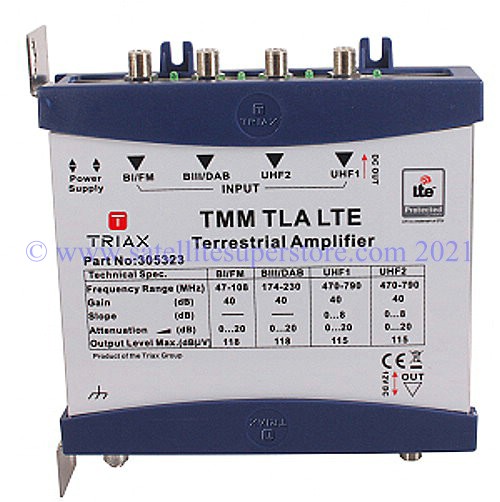

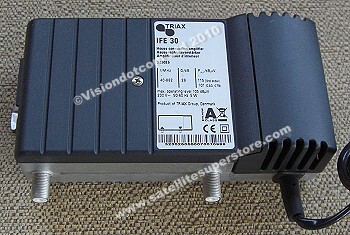

Also note that if the UHF input is to be used in a 17 in multiswitch,
the IFE30 amplifier below will also be needed.
Four quatro LNBs (pointing at four different satellites) feed into 16 inputs.
A terrestrial aerial feeds into the 17th input. Diseqc switching between the
two satellites is built into the multiswitch. The outputs go to the satellite
receivers Each satellite receiver can access all satellites.
See additional notes below.
Shipping options. Discounted shipping on all web orders.
UK -
mainland UK delivery is included in the price,
so choose "
Mainland UK delivery included" - UK shipping option No 1.
Or the £15 to a "
UK offshore island (and Eire) by courier" - UK (and Eire) shipping option No 2.
Please note that, although not guaranteed, many uk deliveries are getting there next day
if the order comes in before our cut off times.
International - within the EU - choose the £38 "
up to 5Kg by courier to EU countries"
shipping option
International - outside of the EU - choose the "
International shipping quote by e-mail" shipping
option.
17 in and 6 out multiswitch with power supply.
The 6 outputs go to 6 satellite receivers (or 3 twin tuner receivers).

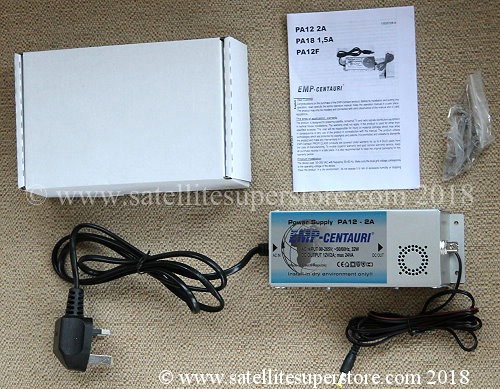

Power supply included.
Order code 17IN6OU
£179.95

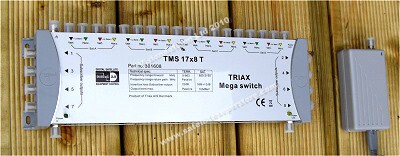

17 in and 8 out multiswitch with power supply.
The 8 outputs go to 8 satellite receivers (or 4 twin tuner receivers).
See notes above. Power supply included.
Order code 17IN8OU
£212.95
17 in 12 out Multiswitch with power supply.
The 12 outputs go to 12 satellite receivers (or 6 twin tuner receivers).
See notes above. Power supply included.
Order code 17IN12O
£264.95

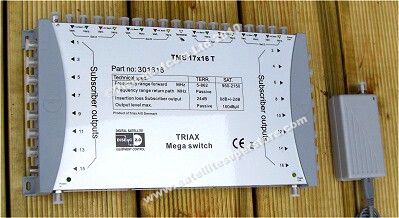

17 in 16 out Multiswitch with power supply.
The 16 outputs go to 16 satellite receivers (or 8 twin tuner receivers).
See notes above. Power supply included.
Order code 17IN16O
£314.95
Triax GHV30E (formerly IFE30) Amplifier.
Goes before the multiswitch to provide UHF amplification. The 17 input multiswitches only
have passive UHF circuitry and the loss through the unit is 24dBs. The GHV30E amplifier
makes up for this loss. In simple terms, if an aerial is routed through a 17 input multiswitch
the 24 DB loss is likely to produce poor UHF (aerial) pictures. With the GHV30E amplifier
boosting the signal before it enters the aerial input of the multiswitch, the loss through the
multiswich is fully compensated. Indeed there will even be a small gain. If the multiswitch
is only used for satellite and the aerial is not to be sent down common down leads,
the amp is not then needed.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"
UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post."
shipping option
Order code IFE30AM
£64.95
TV, FM radio and DAB combiner.
Multiswitches have an aerial input and 4 satellite inputs for the quatro LNB.
It may be that a TV aerial, an FM aerial and a DAB (digital radio aerial) need to be combined to
go into the one Aerial input of a multiswitch. This product does that (3 in and 1 out)
Since it may be preferable to combine the three aerials on the roof, this unit is designed for
outdoor use and is waterproof. If only two of the three aerials are needed, the third input
can be ignored. It is idea for feeding aerials into any of the multiswitches we sell.
Inside of the multiswitch the satellite feeds and the aerials are combined down one cable to each room.
Inside the room is the TV, radio and satellite output plate which separates satellite from the UHF aerials
These outlet plate is below.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"
UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post."
shipping option
Order code TVRADCO
£17.95
Single F connector outlet plate.
For fitting on the internal walls as a dish point socket.
A surface back box is available if required.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"
UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international
post."
shipping option
1 single output F connector outlet.
Order code, FPLATEW
£1.99
4 single output F connector outlet plates. Quantity price.
Order code, FPLATE4
£5.99
Surface Back Box.
Order code, UHFBBOX
£1.49
4 Surface Back Box. Quantity price.
Order code, UHFBBO4
£3.95
Maxview twin F connector outlet plate
For fitting on the internal walls as a dish point socket.
This is a high build quality product. Back box above if required.
The twin outlet plate is ideal for Sky + and sky HD or any twin tuner receiver.
Whilst it may be possible to buy cheaper twin outlet plates, these are the high quality "Maxview" type.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"
UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international
post."
shipping option
Double output F connector outlet plate.
Order code, FPLATET
£4.99
4 DOUBLE output F connector outlet plates. Quantity price.
Order code, FPLTWI4
£18.99
Surface Back Boxes.
Order code, UHFBBOX
£1.49
4 Surface Back Box. Quantity price.
Order code, UHFBBO4
£3.95
Low cost twin F connector outlet plate
with screws (without back box)
For fitting on the internal walls as a dish point socket.
Back box above if required.
The twin outlet plate is ideal for Sky + and sky HD or any twin tuner receiver.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"
UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international
post."
shipping option
Low cost output F connector outlet plate.
Order code, LCLATET
£2.99
4 low cost twin output F connector outlet plates. Quantity price.
Order code, LCLTWI4
£9.69
Surface Back Boxes.
Order code, UHFBBOX
£1.49
4 Surface Back Box. Quantity price.
Order code, UHFBBO4
£3.95
Triax F and UHF outlet plate.
This is not a diplexing plate for use with a multiswitch for sending the two signals down one cable.
(That plate is below.) This is two separate connections for two cables.
See above for back boxes.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"
UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post."
shipping option
Triax F and UHF outlet plate.
Order code FANDUHF
£3.50
4 Triax F and UHF outlet plate. Quantity price.
Order code TVRADS4
£11.95
Triax UHF and Satellite triplexing outlet plate.
This unit allows one cable to carry the UHF TV aerial and satellite (e.g. from a multiswitch) to a room.
There is also a connector for FM or DAB radio also carried on the same cable. See above for back boxes.
Satellite TV and radio triplexing outlet plate.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"
UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post."
shipping option
Triax TV, Radio and Satellite triplexing outlet plate
Order code TVRADSA
£6.95
4 Triax TV, Radio and Satellite triplexing outlet plate. Quantity price.
Order code TVRAUS4
£23.95
Triax UHF TWIN Satellite outlet plate.
This unit allows one cable to carry the UHF TV and DAB radio aerials and satellite (from a multiswitch)
to a room. A second cable from the multiswich carries a satellite signal for a second receiver or twin
tuner receiver. See above for back boxes.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"
UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post."
shipping option
Triax UHF and TWIN Satellite outlet plates
Order code TWINPLA
£9.49
4 Triax UHF and TWIN Satellite outlet plates. Quantity price.
Order code TWINPL4
£34.95
Triax UHF, phone and TWIN Satellite outlet plate.
This unit allows one cable to carry a UHF TV aerial signal and a VHF radio signal and satellite (from a multiswitch)
to a room. The radio signal could be FM or DAB if the appropriate aerials are fed into the multiswitch through
a combiner. A second cable from the multiswich to the outlet plate can carry a satellite signal for a second
receiver or twin tuner receiver. There is also a UHF return connector for an additional cable to take the UHF
back to a central area for distribution round the house. Or, the return can be used to bring a third UHF or VHF
signal to the room using a third cable. A telephone point is also included.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"
UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post."
shipping option
Triax UHF, phone and TWIN Satellite DOUBLE outlet plate
Order code TWINPLD
£10.95
4 Triax UHF, phone and TWIN Satellite DOUBLE outlet plates. Quantity price.
Order code 4TWINP4
£39.95
Triax 60cm, 80cm and heavy duty
70cm dishes with 0.1dB quatro
Titanium LNB.
Wall mount included. The Quatro LNB is required for mutiswitches.
The 60cm, 80cm and 70cm dishes are ideal for Astra 2 at 28E, Sky or Freesat in the UK.
Use with the 5 input multiswitches.
This is the new Titanium third edition LNB that is widely praised on many web sites.
It has the gold connections and is very low noise. An ultimate performance LNB.
Shipping options. Discounted shipping on all web orders.
UK -
mainland UK delivery is included in the price,
so choose "
Mainland UK delivery included" - UK shipping option No 1.
Or the £15 to a "
UK offshore island (and Eire) by courier" - UK (and Eire) shipping option No 2.
Please note that, although not guaranteed, many uk deliveries are getting there next day
if the order comes in before our cut off times.
International - within the EU - choose the £38 "
up to 5Kg by courier to EU countries"
shipping option
International - outside of the EU - choose the "
International shipping quote by e-mail" shipping
option.
Triax steel 60cm dish with 0.1dB quatro Titanium LNB without wall mount.
Order code TRI64MW
£72.95
Triax steel 60cm dish with 0.1dB quatro Titanium LNB with wall mount.
Order code TRI64MU
£82.95
Triax steel 80cm dish with 0.1dB quatro Titanium LNB without wall mount.
Order code TRI78MW
£82.95
Triax steel 80cm dish with 0.1dB quatro Titanium LNB with wall mount.
Order code TRI78MU
£92.95
Triax steel 90cm dish with 0.1dB quatro Titanium LNB without wall mount.
Order code TRI88MW
£92.95
Triax steel 90cm dish with 0.1dB quatro Titanium LNB with wall mount.
Order code TRI88MU
£102.95
Triax 70cm heavy duty fibre glass dish, 0.1dB quatro Titanium LNB without wall mount.
Order code TRI70MW
£132.95
Triax 70cm heavy duty fibre glass dish, 0.1dB quatro Titanium LNB with wall mount.
Order code TRI70MU
£142.95
Clear transparent 60cm dish with
quatro 0.1dB Titanium LNB
Wall mount included. The Quatro LNB is required for mutiswitches.
These are the new clearer transparent dishes. The picture above on the right shows the new dish.
Notice, even the back plate is clear and the arm slots in for very easy assembly. We have not
see a better, clearer dish than this. Wall mount included.
This is the new Titanium third edition LNB that is widely praised on many web sites.
It has the gold connections and is very low noise. An ultimate performance LNB.
Clear dishes are ideal for conservation areas or where being discrete is very important.
The 60cm dish is ideal for Astra 2 at 28E, Sky or Freesat in the UK. Use with the 5 in multiswitches.
Shipping options. Discounted shipping on all web orders.
UK -
mainland UK delivery is included in the price,
so choose "
Mainland UK delivery included" - UK shipping option No 1.
Or the £15 to a "
UK offshore island (and Eire) by courier" - UK (and Eire) shipping option No 2.
Please note that, although not guaranteed, many uk deliveries are getting there next day
if the order comes in before our cut off times.
International - within the EU - choose the £38 "
up to 5Kg by courier to EU countries"
shipping option
International - outside of the EU - choose the "
International shipping quote by e-mail" shipping
option.
Clear 60cm dish with 0.1dB quatro Titanium LNB without wall mount.
Order code TRA60MW
Only £114.85
Clear 60cm dish with 0.1dB quatro Titanium LNB with wall mount.
Order code TRA60MU
Only £124.85
4 LNB cable.
This cable could be used with quad LNBs, quatro LNBs, two twin LNBs, or 4 single LNBs.
Each cable is 7mm as so it fits our screw on F connectors and our compression fit F connectors.
Order this cable on the
satellite cable page.
Multiswitches that will work
with quad LNBs.

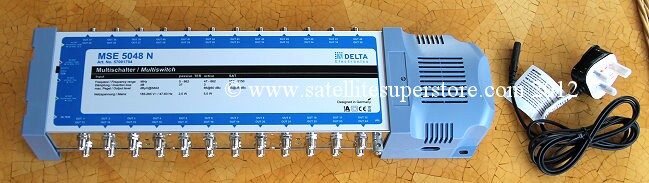

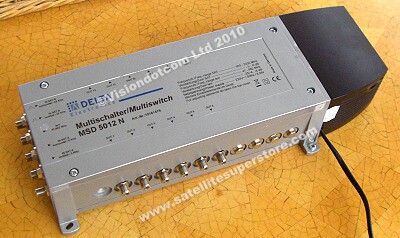

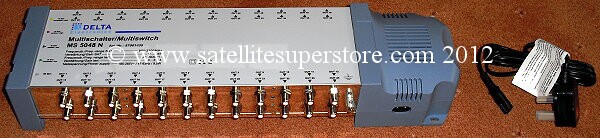

Delta 5 input multiswitches (Pro-range).
5 inputs - 1 satellite quad LNB and terrestrial. Professional range. Heavy steel case.
Most multiswitches are designed to work with quatro LNBs but these work with quad LNBs.
Also note that an internal switch can be set from quad LNB to quatro LNB if required
Advice
They can offer several advantages -
If a quad LNB is already fitted and changing it is not something that you want to do. Maybe the dish
is inaccessable. A Sky mini dish may have a quad LNB fitted and Sky do not make a quatro LNB.
Maybe it is a conservation area or block of flats and a
Selfsat flat plate antenna needs to
be fitted, These antenna are not available with quatro LNBs but are available with quad LNBs
Shipping options. Discounted shipping on all web orders.
UK -
mainland UK delivery is included in the price,
so choose "
Mainland UK delivery included" - UK shipping option No 1.
Or the £15 to a "
UK offshore island (and Eire) by courier" - UK (and Eire) shipping option No 2.
Please note that, although not guaranteed, many uk deliveries are getting there next day
if the order comes in before our cut off times.
International - within the EU - choose the £38 "
up to 5Kg by courier to EU countries"
shipping option
International - outside of the EU - choose the "
International shipping quote by e-mail" shipping
option.
DELTA 5 in and 8 out multiswitch. (Professional range.)
Order code 5IN8ODE
£189.95
DELTA 5 in and 12 out multiswitch. (Professional range.)
Order code 5IN12DE
£249.95
DELTA 5 in and 16 out multiswitch. (Professional range.)
Order code 5IN16DE
£279.95
DELTA 5 in and 20 out multiswitch. (Professional range.)
Order code 5IN20DE
£349.95
DELTA 9 in and 8 out multiswitch. (Professional range.)
Two satellite (Two quad LNB) inputs.
Order code 9IN8DEL
£199.95
Triax 5 in 8 out (and 5 out) multiswitch. Cascade type
Order code 5IN8OUC
£144.95
Triax 5 in 12 out (and 5 out) multiswitch. Cascade type
Order code 5IN12OC
£144.95
Triax 5 in 16 out (and 5 out) multiswitch. Cascade type
Order code 5IN16OC
£169.95
Triax 5 in 24 out (and 5 out) multiswitch. Cascade type
Order code 5IN24OC
£199.95
Triax 5 in 32 out (and 5 out) multiswitch. Cascade type
Order code 5IN32OC
£239.95
Triax 5 in 12 out multiswitch. Terminated type
Order code 5IN12OT
£144.95
Triax 5 in 16 out multiswitch. Terminated type
Order code 5IN16OT
£169.95
Triax Power supply for Cascade and Terminated multiswitches
Order code POWERCT
£34.95
Advice
QUESTION -
I want to have multiple satellite points around
the house and multiple receivers. I also want to
distrubute the TV from one receiver to all TVs how
can this be done.
ANSWER -
There are two parts to this question.
Input
To provide many Sky or freesat dish points around the house you either need a quatro LNB on your
dish or a quatro LNB dish kit. see
dishes with quatro LNBs
and a 5 input multiswitch (multiswitches are usually situated in a loft or cupboard or central area.)
see
multiswitchs
The quatro LNB (with 4 outputs) feeds the multiswitch using 4 LNB cable - see
4 LNB
cable
Best to put two outlets in each room as it may be that twin tuner receivers
(record one channel and watch another) may be needed.
If so use the twin wall plates see
outlet plates then scroll down to the twin
units.
Use twin cable to each room. see
Twin cable
For (e.g.) 6 rooms a 12 output multiswitch would be used. Twin cable to each room.
An aerial can be fed into the 5th input of the multiswitch if required.
Using a wall plate which has a diplexer built in, two satellite points and an aerial point is available.
The UHF Aerial signal is added to the satellite signal by the multiswitch and goes down the
same wire as the satellite signal.
If two or three aerials are required e.g. TV, FM and DAB radio, a 3 way combiner can be fitted on the roof and
the one cable from that unit goes into the 5th input of the multiswitch. Again the appropriate wall plate is
needed to separate them all out again. see
multiswitch combiner
Standard Sky, Sky+ Sky HD freesat and freesat HDR and other receivers can then be connected
to the F connector wall plate.
Output.
distribution round the house needs a 2, 3, 4, 6 amp or (preferably) professional 8 way amp and cabling.
see
Professional 8 way amp and
Offer 1
but read the whole page.
This is to distribute TV from one receiver to other TVs around the house (one channel)
This can be done by feeding a cable from the room containing the sat receiver to the multiswitch location and
into the 3 way combiner then into the multiswitch.
However, the problem with this method is that the multiswitch will not permit the 9 volts to go through and
the TV Eye or omni link system to work for control.
It is better therefore to have a completely separate output system with separate cabling for the distribution system
This would mean 3 cables to each room, two for the satellite and one for the distribution. TV eyes for Sky receivers
Sky accessories
or omni link systems for freesat receivers etc.
see
omni link kit
(and a modulator is required - same page)
This will allow full control of the Sky or freesat system from all of the rooms.
Problems of using more than one diseqc switch
with multiple LNBs
One our web site you will find 2, 3 and 4 LNBs on one fixed dish
See
2, 3 or 4 satellites on 1 fixed dish
You will also find options for the fitting of a twin or quad LNB as a substitution
with ONE of the 3 or 4 LNBs so that a popular satellite can go to several receivers.
e.g. putting a twin or quad in the 28E position so that a Sky digibox or Sky + can
be connected as well as the CI receiver to that LNB That means the CI receiver and the
Sky box both are connected to 28E but the CI receiver is also connected to other
satellites through ONE diseqc switch.
You will not find on our site 2.3 or 4 satellite kits with twin or quad LNBs and
more than one diseqc switch to either two receivers or a twin tuner receiver.
REASON.
Whilst it should all work in theory, in practice
(depending on the combination of switch positions) you can get no signal on a
satellite when it should all work. This is because twin LNBs and Quad LNB should
be fully connected to work properly. It may be OK to connect to two outputs of a quad
but you have to experiment to find out which two. With a twin, one side has a good
connection to the internal power supply circuit and the other is almost like a passive
device and relies on power from the second receiver to work properly
If you connect two or more diseqc switches, they take power away from some of the
outputs of the twin or quad LNBs (depending on the switching at the time) and
things go wrong.
IS THERE A SOLUTION?
Yes there is - a new solution - but quite expensive. It will be on our site soon as
an option on all of the twin tuner receiver pages eventually but see it at
multiswitches
The 9 in and 6 out and the 17 in an 6 out ...etc. This is a product designed to
do the job. Quatro LNBs must be used but all the switching is done inside the unit
and there are no power issues
Update April 2010. The twin lnb options with Discqc switches
all designed to work together do work without problems if
part of the "Inverto Multiconnect" 3 and 4 sat systems.
The 5 in and 16 out multiswitch
and 5 in and 5 out Amp.
(All prices on this page include VAT.)
Links to site pages,
Advice
Support
Shipping info
Multiswitches
Satellite Museum
Reviews
Links
Satellite Finder Meters
Contact Us
SKY receivers & systems
SKY accessories
Other accessories
Installation equipment
Wall mounts & ground stands
Dishes
Transparent dishes
Full systems
Motorised systems.
2, 3 or 4 satellites on 1 fixed dish
BBC systems
Linux receivers
freesat receivers
Blind search receivers
Receivers with hard drives
Twin tuner PVR receivers
High Definition Receivers
Manhattan
Cube Revo
Icecrypt
Dreambox
Technomate
Humax
Analogue Receiver
More receivers
Caravan products
Diseqc switches
LNBs
Feedhorns
Motors
V Box
Positioners
Adult cards
CAMs
All products index
Links to menu pages,
Catalogue Contents Page. A summary of all pages. More products.
ADVICE Pages. Frequently Asked Questions. (FAQs) Read and learn!
Menu pages.
Sky menu page.
Satellite systems menu page.
Satellite receivers menu page.
Satellite dishes
Clear transparent dishes
High definition receivers menu page.
LNB (and feedhorns) menu page.
Motorised systems menu page.
Enthusiast blind search receiver menu page.
Manhattan menu page.
Humax menu page.
Technomate menu page.
Topfield receivers menu page.
Dreambox receivers menu page.
Pace receivers menu page.
Triax dishes, LNBs & brackets menu page.
Mutiswitches menu page.
3/4 satellite fixed dish menu page.
Small satellite items menu page.
Audio video products
Satellite Meters menu page.
Caravan Satellite menu page.
Accessories menu page.
Installation equipment menu page.
Review centre menu page.
Index of all products menu page.
Links to pages with more detail,
Catalogue Contents Page. A summary of all pages. More products.
ADVICE Pages. Frequently Asked Questions. (FAQs) Read and learn!
Freesat and Sky.
Freesat receivers / systems / mini dishes / accessories. The Humax HDR. The Segam.
The Sky Digital receivers / systems / mini dishes / accessories. The Pace DS440N. The Sky Plus.
Sky Digital accessories handsets, TV eyes, distribution around the house, wireless, offers, leads,
etc.
Sky Digital dishes and LNBs single, twin & 4 out LNBs, Zones 1 & 2 mini dishes & larger dishes.
Freesat and Sky in Spain. 1.0m, 1.2m, 1.8m and 2.4m dishes for Spain. Satellite meters for Spain.
Satellite Systems, Complete systems menu page
Sky systems.
Motorised systems.
(motors)
Hotbird 13E systems
(2 satellite) Astra 1 & Hotbird systems
(3/4 satellite) Astra 2, Astra 1 & Hotbird etc. systems.
God channel 28E systems
Free to air 28E BBC systems
Sky systems.
Sky + systems.
Adult channel systems
Manhattan motorised systems.
Icecrypt motorised systems.
Dreambox motorised.
Technomate satellite systems.
Satellite receivers,
Receiver menu page.
Sky Digital receivers
Freesat receivers
Blind search
Sky menu page
Sky Digiboxes
Sky Digibox.
Sky Plus.
Sky HD.
Caravan receivers
Technomate TM5200
TM5400
TM5300
TM5500.
TM9100
TM6900 HD Super.
TM6800 HD Super
TM7100.
Manhattan Plaza XT-M, XT-CM
SAB500Gb Twin Tuner
Brand new Analogue Receivers
Linux receivers
Cube Revo
Dreambox 600 800 8000
TM9100
PVR hard drive receivers or PVR ready
High Definition receivers menu page.
Humax iChord Twin Tuner PVR
Cube Revo Linux twin tuner PVR.
Technomate TM-6900 Super.
Technomate TM-6800 Super
Technomate TM-7100
Icecrypt S4000.
External USB hard drive for usb receivers
Vantage HD 8000
Dreambox 800
Freesat HD Receivers
Satellite dishes,
Dish menu page
LNB menu page
Sky dishes
Wall mounts
& stands
Feedhorns
FIXED,
Sky
Triax 54, 60,80,90cm,1.1m
Orbital 1.0m
Andrews 1.0m 1.2m,1.8m, 2.4m
Clear Transparent 60,85cm
MOTORISED,
Triax 80, 90cm,
Transparent 85cm
Orbital 1.0m
Andrews 1.0m, 1.2m, 1.8m
OTHER,
Sky mini dishes
All-weather Sky dishes
Sky dishes for Spain
3/4 satellite dishes
Dish motors
Caravan dishes
Terrestrial PVR receivers,
Topfield TF5810
Humax
Satellite & Terrestrial,
Technomate TM-6900 HD Combo.
Technomate TM-7100.
Brand New Analogue Satellite Receivers
(e.g. Could be used on Astra 1 to see Eurosport in English!)
Sky menu page
Adult Cards
CAMs
freesat receivers
LNBs
Monobocks
LNBs
Feedhorns
Sky accessories
Other Accessories
Installation equipment
Satellite Meters
Caravan
AV products.
Contacting us.
Tel. (UK) 01207 544664 and 01207
544224
International Tel. + 44 1207 544664.
If you are ringing us about a product you have already purchased, you should ring the support line on your invoice.
Before sending questions via e-mail please check-out our
Frequently asked questions as this could save
time.
If you have any questions & comments regarding this site's content, please ....
contact us by e-mail.
(We only accept questions in English (no text language). We do not open attachments.)
Questions about faults or returns must include an invoice number or order number & date of purchase.
Technical questions are not a problem but questions about "channels" should be checked out first with
the satellite providers. Links to the satellite providers web sites are on our
Links Page
Copyright © 2010 Vision International. All rights reserved.
