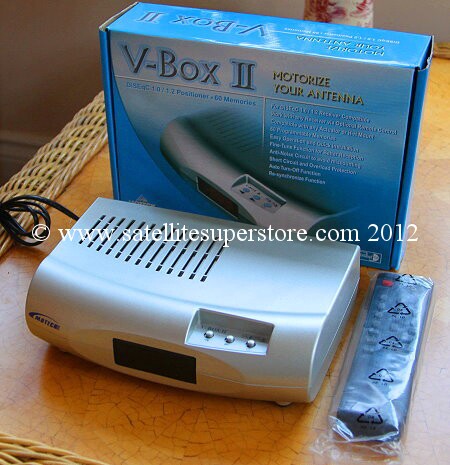

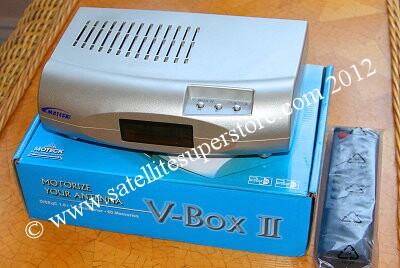

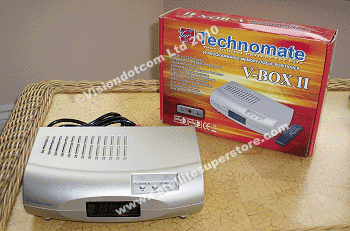

Moteck V Box with handset.
Convert Diseqc to 36 volt positioning for larger dishes.
The V Box III has been discontinued but the extra features in a Mk III are usually never needed.
There are two main differences.
1. The Mk III stored 99 satellite positions and the Mk II stores 60. Even with a large dish on
a horizon to horizon motor, it is unlikely that more than about 40 satellites will be found.

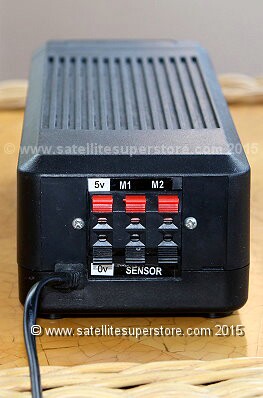

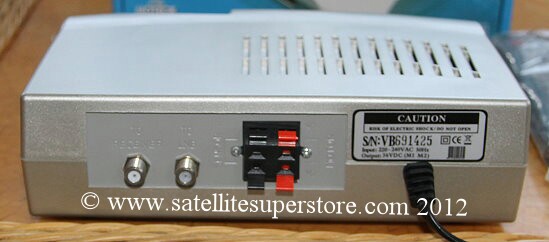

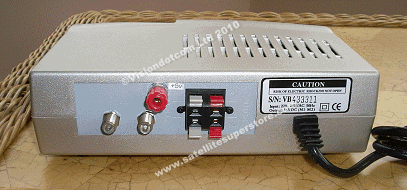

2. The Mk III had a 5 volt connection on the back for motors that included an optical sensor.
That is a 5 wire system. This V Box does not include a 5 volt output and is a 4 wire system for
reed sensors. 99% of all motors ever made use reed sensors. All motors that we sell use reed sensors.
It therefore follows that the Mk II V Box, in 99% of applications, has the same capability as a Mk III.
A V Box converts the Diseqc commands of modern digital receivers to 36 volt positioning for
larger dishes using 36 volt motors.
Remember ... Diseqc commands on an 13/18V LNB cable only provide limited voltage and up to about 300mA.
That is only 0.3 of an amp. A V Box converts this to 36V and about 2 to 3 amps for larger dishes using 36 volt
motors. Typically 1.2m dishes and larger use 36 volt motors.
Use the fully automatic option. Just select the channel on your Diseqc receiver and your
36 volt motor / dish will move to the correct satellite and channel.
That means do not use the V Box handset (manual use only) only use the receivers handset with the V Box in
automatic mode.

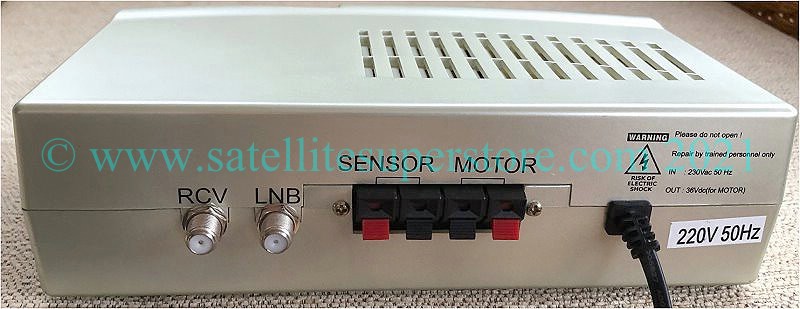

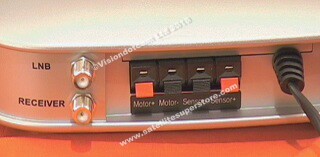

The LNB and control cable connects to the V Box. A short "fly lead" goes from the V Box
to the modern receiver, then everything is controlled by the receivers handset automatically.
Can also be used as a stand alone positioner as a handset is included.
(Again remember ... no need to use the handset in automatic mode.)
Motor control cable is available from
the cable page
Shipping options. Discounted shipping on all web orders.
UK delivery including offshore islands is included in the price,
so choose "
UK delivery included" - UK shipping option No 1.
Or the £15 to "
Southern Ireland by courier" - Eire shipping option No 2.
Please note that, although not guaranteed, many uk deliveries are getting there next day
if the order comes in before our cut off times.
International - within the EU - choose the £38 (receiver only) "
up to 5Kg by courier to EU countries"
shipping option
International - outside of the EU - choose the "
International shipping quote by e-mail" shipping
option.
Order code, TEBOXP2
Only £39.95

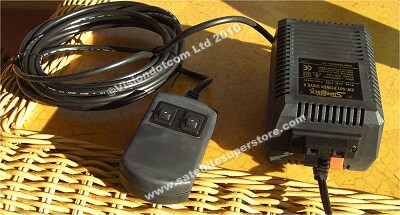

East-West Positioner
with wired handset.
An East-West positioner for 36 volt motors. Ideal for installers.
When setting up a motorised systems this unit will allow the installer adjust the motor east and west
while setting up the dish. Input 220 / 240 volts. Output + or - 36 volts.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"
UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post."
shipping option
Order code EW501PO
£34.95
