C Band and Ku Band LNBs
C band & Ku band LNB single C Band voltage switching LNB twin C Band voltage switching LNB Ku band block type LNB

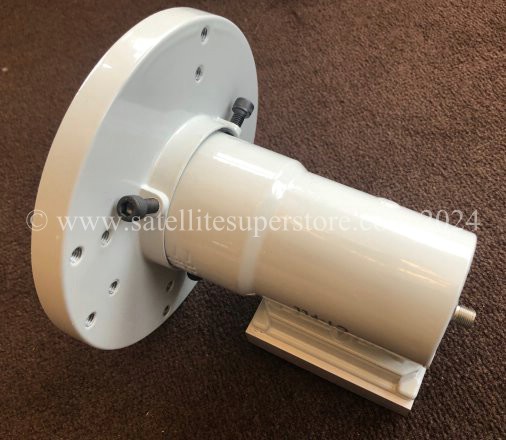

C Band offset feedhorn with feed support boss

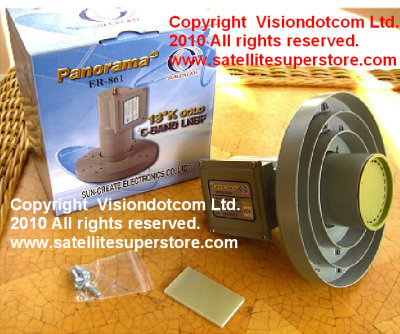

C Band Voltage switching LNB.



Very low noise - 13K. Voltage switching LNB with feedhorn.

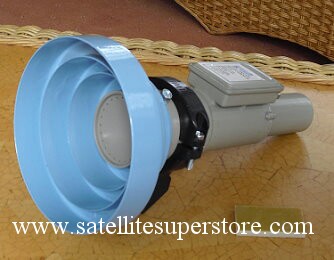

"Panorama" integrated C band LNB and feedhorn. 3.4 to 4.2 GHz, 13K, Cross Polar isolation 20dB (min)
Image rejection 45dB (min, Phase noise -85dB at 10KHz, LO frequency 5150MHz, LO stability + or - 1.5MHz)

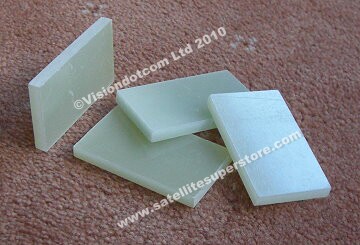

A Dielectric plate is included. For linear and circular polarisation.

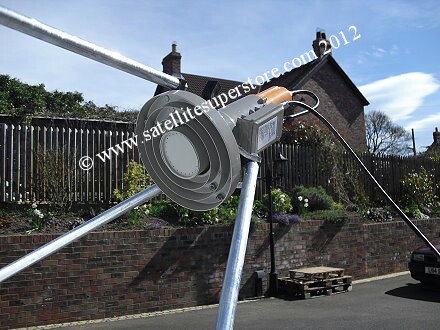

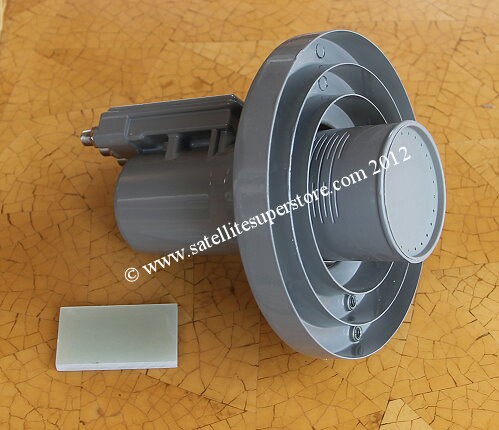

There are two feedhorn / LNB options, For prime focus dishes (see picture above)
A 1.4m prime focus dish with C Band LNB option is available from the motorised dishes page.
We hope to offer larger C band dishes soon.

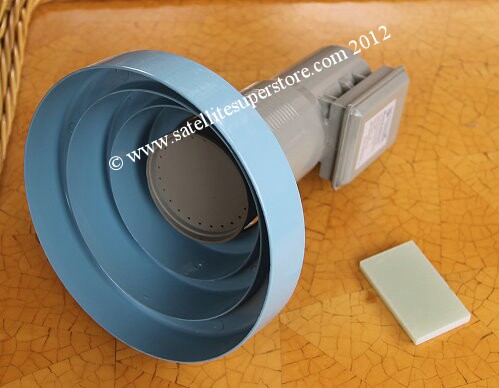

"At last we can offer an offset feedhorn for C band LNBs!"

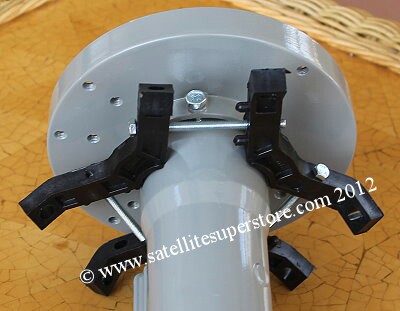

The offset version of this LNB/feedhorn kit includes a feed support boss. This should fit easily
onto a rectangular section feed support arm. The Gibertini 1.5m dish would be an
example of a dish this kit should adapt to quite easily.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." (Includes UK offshore islands) - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post."
shipping option

Prime Focus Feed - C Band voltage switching 13K LNB.
Order Code CBD13KP
£89.95

Offset Feed - C Band voltage switching 13K LNB.
Order Code CBD13KO
£119.95

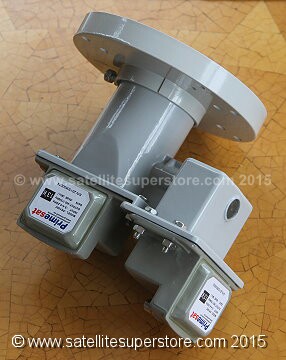

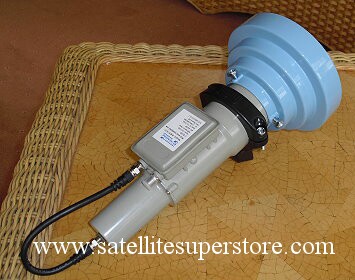

C and Ku Band (universal)
voltage switching LNB.





Super high gain - 70dBs. - Very low noise - 13K.
C band LNB 3.4 to 4.2 GHz, KU band LNB 10700 to 12750 GHx.

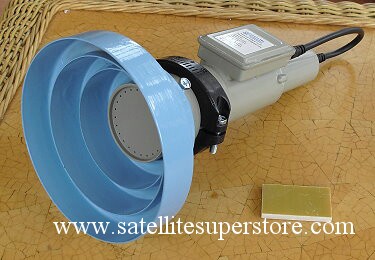

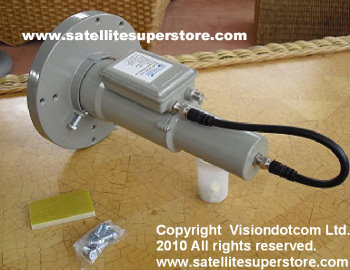

0.2dB Ku band universal LNB and 13K C Band Voltage switching LNB with feedhorn options.
This unit has two outputs. These outputs can be arranged in two configurations -
1. They can be treated as two separate outputs. They could be switched with a (e.g.) 12 volt
switch down one cable or they could come down twin cable, being kept separate, to two receivers.
2. Using the loop through cable provided, the signal from one output is routed back into the LNB.
The two signals then go through an internal Diseqc switch (inside the LNB) and using a modern
receiver's Diseqc switching control, the signal comes down one cable and a receivers menus
can then be set up for C band and Ku band using Diseqc A and B. This is a very flexible
LNB with many uses and applications.
There are two feedhorn / LNB options, For prime focus dishes (see picture above)
A Dielectric plate is included. For linear and circular polarisation.
A 1.4m prime focus dish with C Band LNB option is available from the motorised dishes page.
We hope to offer larger C band dishes soon.
"At last we can offer an offset feedhorn for C band LNBs!"
The offset version of this LNB/feedhorn kit includes a feed support boss. This should fit easily
onto a rectangular section feed support arm. The Gibertini 1.5m dish would be an
example of a dish this kit should adapt to quite easily.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." (Includes UK offshore islands) - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post."
shipping option

Prime Focus Feed - C and Ku Band (universal) voltage switching LNB.
Order Code CKULNBP
£99.95

Offset Feed - C and Ku Band (universal) voltage switching LNB.
Order Code CKULNBO
£129.95

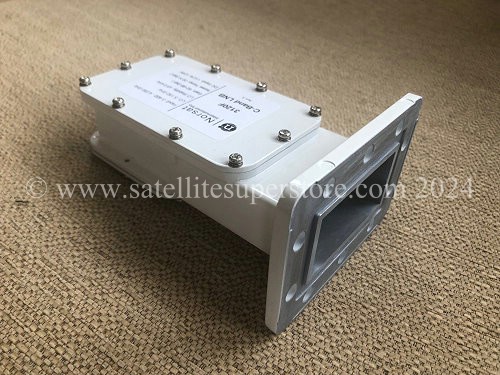

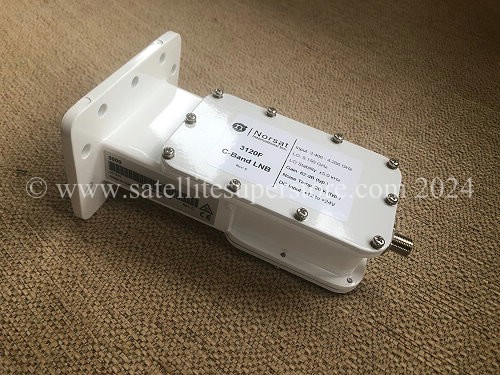

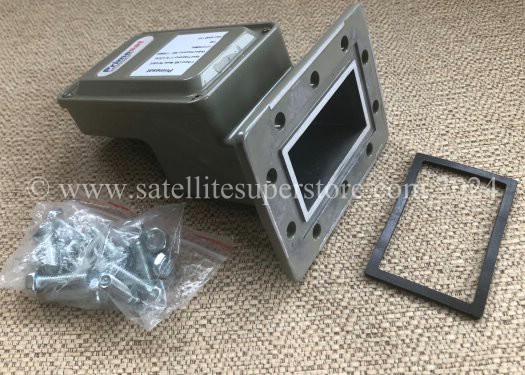

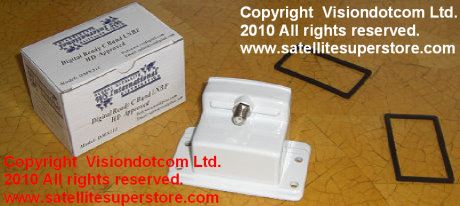

C Band block type LNB.



Super high gain - 70dBs. - Very low noise - 13K.
"WS" digital compatible block type C Band LNB. (Fits a Co-Rotor or C Band feedhorn)
Input Frequency: 3.4-4.2GHz, Output Frequency: 950-1750MHz, Gain: 70dB, Polarity: 1 (Hor. or Vert.)
LO Frequency: 5150MHz, Image Rejection 45dB Min, Output Impedance: 75Ohms, Output
Connector: F-Female, HDTV Approved: Yes, Operation Temperature: -30° C to 70° C
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." (Includes UK offshore islands) - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post."
shipping option

C Band Block type LNB 13K
Order Code CBBT13K
£64.95

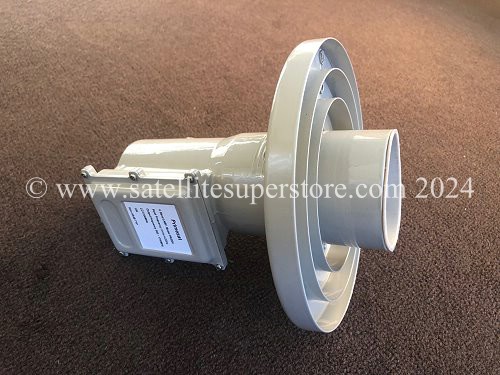

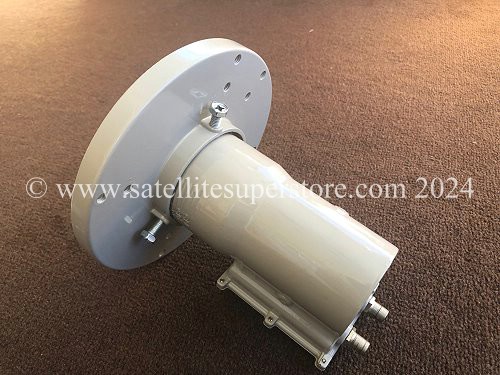

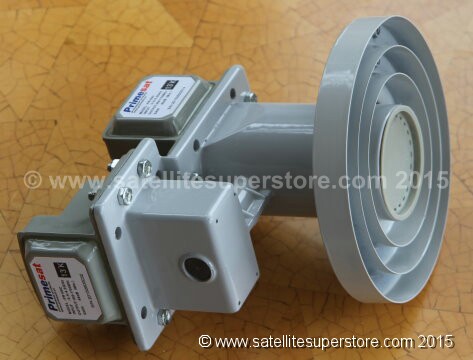

Twin C Band voltage switching LNB.





Both outputs 13K. C Band LNB Voltage switching LNB with feedhorn options. 3.4 to 4.2 GHz
Super high gain - 70dBs. - Very low noise - 13K.
There are two feedhorn / LNB options, For prime focus dishes (see picture above)
A Dielectric plate is included. For linear and circular polarisation.
A 1.4m prime focus dish with C Band LNB option is available from the motorised dishes page.
We hope to offer larger C band dishes soon.
"At last we can offer an offset feedhorn for C band LNBs!"
The offset version of this LNB/feedhorn kit includes a feed support boss. This should fit easily
onto a rectangular section feed support arm. The Gibertini 1.5m dish would be an
example of a dish this kit should adapt to quite easily.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." (Includes UK offshore islands) - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post."
shipping option

Prime Focus Feed - Twin C Band voltage switching LNB.
Order Code TWINCBP
£99.95

Offset Feed - Twin C Band voltage switching LNB.
Order Code TWINCBO
£129.95

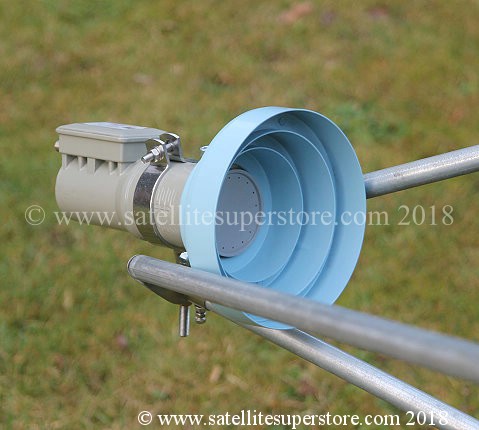

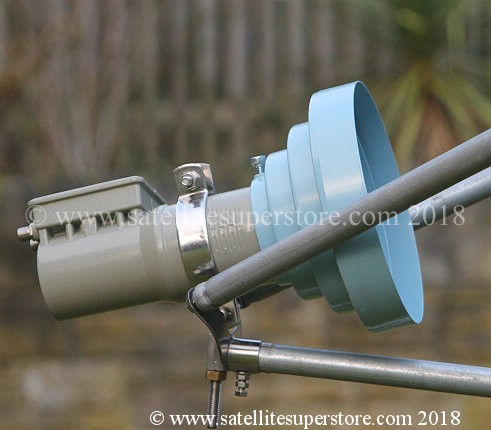

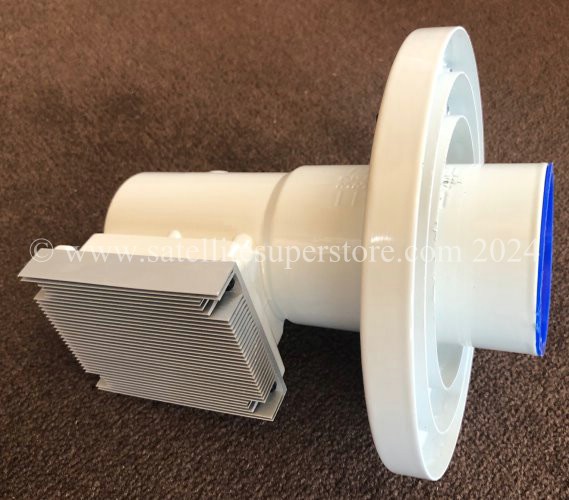

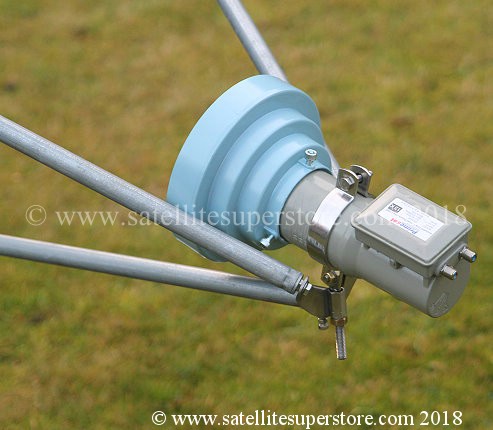

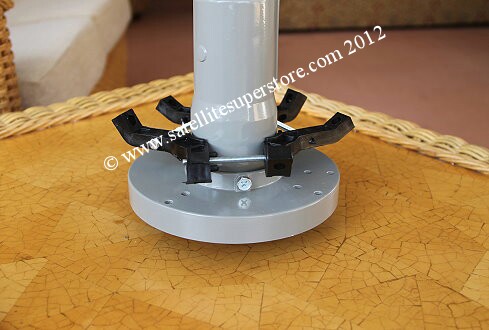

C Band offset feedhorn with
feed support boss.





This is an offset feedhorn and it will allow C Band voltage switching LNBs to be fitted to offset dishes.
The feed support boss is designed to take a 60mm LNB neck. Most C Band LNBs use a
60mm neck. The boss can be fitted to the satellite dish feed support arm.
It may be necessary to modify the end of the dish arm to fit this boss. One bolt is used
to fit this feed support boss to the arm and so a hole may need to be drilled through the arm.
If there is a single arm, or side support arms are connected to the main arm further down
the arm and there is only a single arm tube at the end, (e.g. a Gibertini dish) fitting this
support boss should be easy. If three arms all converge right at the end (e.g. a Raven dish),
the modification would be more difficult.

Discounted oprice when you buy the feedhorn and LNB together.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." (Includes UK offshore islands) - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post."
shipping option

C Band offset feedhorn with feed support boss.
Order Code CBOFFFB
IN STOCK £37.50

Prime Focus and Offset Dishes.

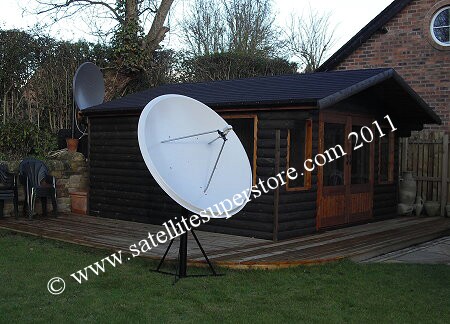

A 1.2m prime focus dish is shown above.
This type of dish is circular NOT oval. It has 3 feed support arms (some use 4 arms) and the 3 arms
converge in the centre. Each arm is 120 degrees apart. The feedhorn uses concentric scalar rings.
The concentric scalar rings reduce noise and improve signal to noise ratio with prime focus dishes.
An offset dish is oval and is higher than it is wide (some are wider than they are high). They use either
one feed support arm (at the bottom of the dish - see bottom left hand picture) or 3 feed support arms
(again all in the bottom 1/2 of the dish - see bottom right hand picture). They require a feedhorn
that is in the shape of a horn without scalar rings. When the new offset C Band feeds arrive,
pictures of these attached to offset dishes will be added.





Since larger, higher quality dishes tend to be used for C Band, a three support arm dish would normally
be used as the side support arms provide better rigidity when dish sizes exceed 1.0m. The offset dish
shown above right is the excellent high gain Raven 1.8m dish.

As a general rule the two types of dishes are simply two ways of doing the same job, however, an
the offset dish, if well engineered usually has significantly more gain than the prime focus dish.
It is never really that simple. It is true that petalised offset dishes usually have poor gain but
a one piece well engineered prime focus dish can be better than a poorly engineered offset dish.
As usual you get what you pay for. Cheap prime focus petalised dishes are to be
avoided and we don't sell them.

Update Feb. 2011 -
See our new 1.4m prime focus dishes at fixed 1.4m prime focus dish and motorised 1.4m prime focus dish
These prime focus dishes wll soon be available with C Band LNB options using the products on this page.
