Technomate TM9100 Super motorised satellite receivers, Lynex sysem, embedded CAM.
Exceptional value for money. The Satellite Superstore are authorised Technomate distributers.
We have 2 identical sites on different servers. www.satellitesuperstore.com & www.satellitesuperstore.co.uk
If there are technical difficulties, or one site is down, please use the other one. Pages are long. Please scroll down.
Select the Technomate TM9100 Super receiver then add the dish kit of your choice
from the many dish options lower down the page. (Pages are long.)
More Technomate receivers are on the
main Technomate receivers page.

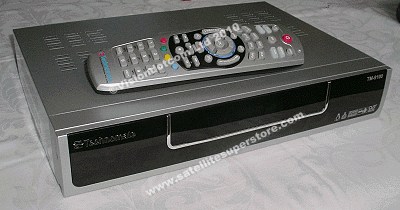

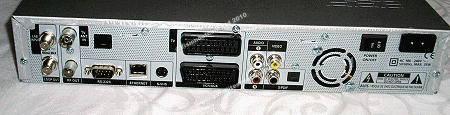

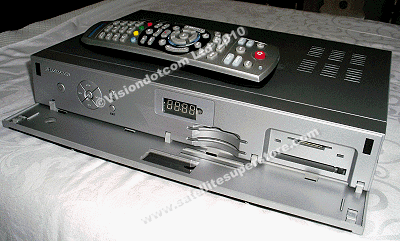

Technomate TM9100 Super
Linux Home Multimedia Center
Product information
Linux Home Multimedia Center running on Enigma PVR Ready 9in1 Memory Card Reader
Ethernet Communication Port Unlimited Channel Memory 2x Smart Card Readers
1x Common Interface (CI)
More memory in the "Super".
The TM-9100 is a PVR ready Satellite Receiver that uses a Sharp tuner which is both sensitive
and fast, having a low-threshold which enables it to find and capture weak signals.
The booting of the TM-9100 is very fast, taking less than 10 seconds from power OFF.
In Standby Mode, when the TM-9100 is turned ON, the booting is instantaneous, taking
less than 1 second.
The TM-9100 can be updated via memory card by the 9in1 card reader, being able to upload
and download (backup) data, view photos, play music, etc. This can be used simultaneously
with the Hard Drive. Multi Booting from the HDD, Memory Card and Flash is also available.
The TM-9100 has a built-in fan which is quiet and is only active when the hard drive overheats.
The TM-9100 is based on Enigma open source and is capable of: Tuxbox project, Telnet, etc.
See the excellent user (community) forum at
www.tm9100.co.uk
UK mainland delivery. Choose the £7.50 delivery option.
Offshore islands - the delivery charge is £19.95
International. Choose the international option.
If you want a complete system based on this receiver, add the dish kit of your choice.
There are many dish kits, 60cm, 80cm, 90cm, Astra and Hotbird, Astra 1, 2, and Hotbird, transparent dishes,
and Motorised dishes - all of these are lower down the page. Add a dish kit of your choice to complete the system.
See the 1 Gb SD card and preparation option below.
Availability : In stock and ready for immediate shipping.
Order code TM9100S
ONLY £139.95
Spare handsets are available for most receivers
that we sell. Usually £29.95 including shipping.
Option.

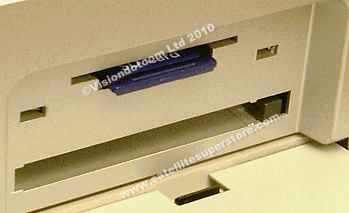

TM9100 Preparation.
(Free 1Gb SD card included).
The TM 9100 is available in, an unopened box form above. Many customers, however, prefer the box
to be properly prepared with all of the correct latest software and including a fully prepared 1 Gb SD card.
This means that the unit is all ready and any additional 3rd party software can be loaded into the SD card.
This is what we do,
1. We load in the very latest manufacturers official software into the flash memory of the box. This eliminates
the problems of damaging the flash memory by the end user if the loading is done incorrectly.
2. We then insert a free 1Gb SD card, format it and set up I boot and a 64Mb swap file so that the TM 9100 is
ready for the loading of any additional software that you may require. The additional software can then be
loaded into the SD card which offers two important advantages. The receiver accesses the SD card faster than
its own memory and this results in more speed and stability. The extra additional software is going onto the
SD card and not into the TM 9100 and so accidental damage to the receiver by incorrect loading etc. is
minimised as only the SD card is being used for this purpose. Please note that "I Boot" also needs downloading
onto a PC so that software can be loaded to the SD card in the TM9100.
This option is only available when you buy a TM9100 from us. Please note that the cost of this option
(£19.95) is for the time taken to prepare the TM9100 before shipping it.
Please note that when preparation is booked, we need time to to do the work and this may delay shipping by 24 hours.
UPDATE Oct 07 - free scanning of 5 satellites.
The following satellites will be scanned in. Astra 2 (28E), Astra 1(19E), Hotbird (13E) Thor (1W) and Hispersat (30W).
Channels are also moved in a logical order so that each satellite starts with some free channels etc.
This spread of satellites also makes it easier to set up a motorised system as satellites in the centre of
the arc and eastern and western satellites have been included.
Order code OPTPREP
ONLY £19.95
Technomate TM9100 Super
300Gb PVR
Massive 300 Gb hard drive fitted.
UK mainland delivery. Choose the £7.50 delivery option.
Offshore islands - the delivery charge is £19.95
International. Choose the international option.
If you want a complete system based on this receiver, add the dish kit of your choice.
There are many dish kits, 60cm, 80cm, 90cm, Astra and Hotbird, Astra 1, 2, and Hotbird, transparent dishes,
all of these are lower down the page below the receivers. Add a dish kit of your choice.
Availability : In stock and ready for immediate shipping.
See the 1 Gb SD card and preparation option above.
Order code TM9S300
ONLY £209.95

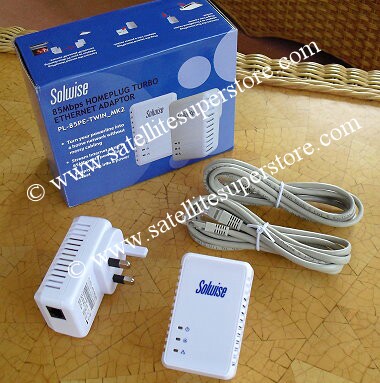

Network Sender Kit - Homeplug Turbo
Puts a network point anywhere in the house where there is a mains socket.
Each unit can both send and receive. Initially two of these units are needed. They are both identical.
Plug one into a mains socket near the router. Connect a network lead from the router to the Homeplug Turbo.
Plug a second unit into a mains socket in the room where you need the network point.
Then a network lead to the computer or satellite receiver. The data is transferred through
the mains wiring. No problems with wireless interference of wireless security problems
Additional single units can be added to other rooms - up to 200! Ideal for the Linux based
receivers like the Technomate TM 9100 and the Dreambox where the receiver may
not be near a network point but is near a mains socket. Up to 85mbps
Some cheaper units do not work at 85Mbps !!
IEEE 802.3 10/100 Ethernet, IEEE 802.3u Fast Ethernet compliant, Max. Speed 85 Mbps
OFDM 256/64/16, DQPSK, DBPSK, ROBO Modulation, Frequency band 4.3 ~ 20.9 MHz, Forward Error Correction (FEC) support,
Channel Adaptation ensures signal integrity under noisy a environment, CSMA/CA with prioritisation
and ARQ for reliable Ethernet data packets delivery
UK Customers. Choose the £7.50 shipping option,
International. Choose an international option.
Order code NETSKIT
£67.95
Homeplug Turbo single unit.
UK Customers. Choose the £3.95 or £7.50 small item shipping option.
International. Choose an international option.
Order code NETSSIN
£33.99
Complete Systems.
Select the receiver you want above and the
dish kit below for a complete system.
If you add a dish to your receiver, this will increase the shipping price but the
complete system shipping prices are all detailed below.
(If all you want is a dish and not a receiver, select through the
dishes menu page
as some dish kits below are discounted when the dish kit is ordered with a receiver
making a complete system.)
Scroll down for motorised dishes.
All motorised dishes (scroll down below fixed dishes) come with a
free fitting kit
Single satellite dish kits
Add a TD 54 51/56cm dish kit
ideal for Astra 2.

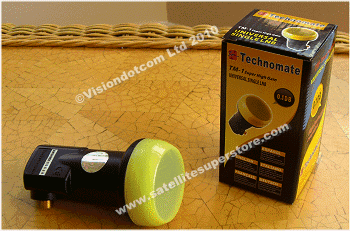

This is the new Titanium second edition LNB that is widely praised on many web sites.
It has the gold connections and is very low noise. An ultimate performance LNB.
In the May 08 issue of "What Satellite" the Titanium LNB won the group test.
For the UK and most of Europe, this dish is ideal for use for TV channels on Astra at 28E
It offers much better "all weather" capability compared to a Sky mini dish.
Triax TD 54cm dish with 0.2dB Titanium LNB and wall mount.
When you add a receiver to this dish kit, UK delivery on this complete system is £15.00
Order code ADD19E5
Add only £42.49
Add a 60cm dish kit
ideal for Astra 1 or 2.
This is the new Titanium second edition LNB that is widely praised on many web sites.
It has the gold connections and is very low noise. An ultimate performance LNB.
In the May 08 issue of "What Satellite" the Titanium LNB won the group test.
For the UK and most of Europe, this dish is ideal for use for TV channels on Astra at 19E
It is also ideal for use on Sky Digital at 28E. Here it offers much better "all weather"
capability compared to a Sky mini dish.
Triax TD 64 60cm dish with 0.2dB Titanium LNB and wall mount.
When you add a receiver to this dish kit, UK delivery on this complete system is £15.00
Order code ADD19E6
Add only £44.99

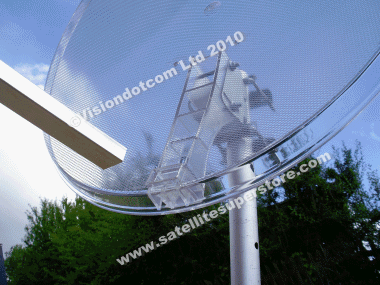

Add a 60cm transparent dish kit
ideal for Astra 1 or 2.
These are the new clearer transparent dishes. The picture above on the right shows the new dish.
Notice, even the back plate is clear and the arm slots in for very easy assembly. We have not
see a better, clearer dish than this.
This is the new Titanium second edition LNB that is widely praised on many web sites.
It has the gold connections and is very low noise. An ultimate performance LNB.
In the May 08 issue of "What Satellite" the Titanium LNB won the group test.
Transparent, 60cm dish with 0.2dB Titanium LNB and wall mount.
When you add a receiver to this dish kit, UK delivery on this complete system is £15.00
Order code ADD19ET
Add only £79.99
Add an 80cm dish kit
ideal for Hotbird at 13E.
This is the new Titanium second edition LNB that is widely praised on many web sites.
It has the gold connections and is very low noise. An ultimate performance LNB.
In the May 08 issue of "What Satellite" the Titanium LNB won the group test.
For the UK and most of Europe, this dish is ideal for use for TV channels on Hotbird at 13E and
many other satellites. Kit includes Triax TD 78, 80cm dish with 0.2dB Titanium LNB and a wall mount
is included. When you add a receiver to this dish kit, UK delivery on this complete system is £15.00
Order code ADD19E8
Add only £54.99
Add an 85cm transparent dish kit
ideal for Hotbird at 13E.
This is the new Titanium second edition LNB that is widely praised on many web sites.
It has the gold connections and is very low noise. An ultimate performance LNB.
In the May 08 issue of "What Satellite" the Titanium LNB won the group test.
The picture in the middle & on the right shows our new clear 85cm dish. This dish is clearer than
the older type on the left and is stronger with re-enforcing structures on the back of the dish.
The new dish also uses a slimmer back plate which adds to the ability to see right through it.
The older discontinued dish on the left has been included so you can size it against a person.
Transparent, 85cm dish with 0.2dB Titanium LNB and wall mount.
The kit comes with our own specially prepared dish/LNB setting up instructions.
as usual manufacturers instructions are poor and best ignored. Use ours as we have
worked out all the shortcuts.
When you add a receiver to this dish kit, UK delivery on this complete system is £15.00
Order code ADD13ET
Add only £89.99
Scroll down for motorised dishes.

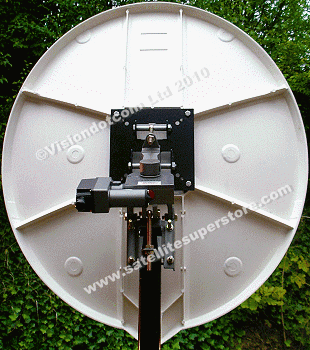

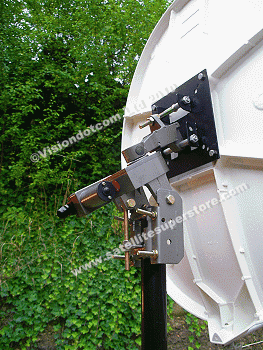

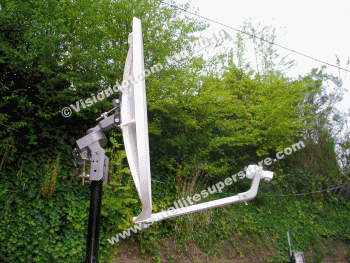

Add an 80cm Triax fibre glass dish kit.
This is the new Titanium second edition LNB that is widely praised on many web sites.
It has the gold connections and is very low noise. An ultimate performance LNB.
In the May 08 issue of "What Satellite" the Titanium LNB won the group test.
This is a heavy duty high wind load dish kit ideal for use in high salt "near the coast"
locations. Clearly the fibre glass dish cannot corrode and the mount on the back
uses a much heavier gauge steel. This is a very high quality, high gain kit.
Wall mount included.
When you add a receiver to this dish kit, UK delivery on this complete system is £15.00
Order code ADDTFIB
Add only £114.95

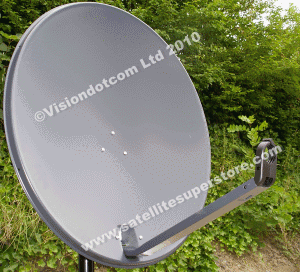

Add a 90cm dish kit
ideal for Hotbird at 13E (or 16E).
This is the new Titanium second edition LNB that is widely praised on many web sites.
It has the gold connections and is very low noise. An ultimate performance LNB.
In the May 08 issue of "What Satellite" the Titanium LNB won the group test.
For the UK and most of Europe, this dish is ideal for use for TV channels on Hotbird at 13E and
many other satellites including 16E or 30W etc.
The kit comes with our own specially prepared dish/LNB setting up instructions.
as usual manufacturers instructions are poor and best ignored. Use ours as we have
worked out all the shortcuts.
Triax TD 88, 90cm dish with a 0.2dB Titanium LNB and wall mount.
This dish kit provides more signal for "all weather" capability on 13E.
It also works well with lower power satellites like 16E etc.
When you add a receiver to this dish kit, UK delivery on this complete system is £15.00
Order code ADD19E9
Add only £64.99

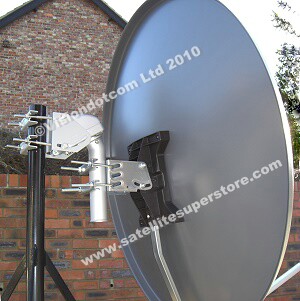

Add a Orbital 1.0m lightweight high gain
alloy dish with 0.2dB Titanium LNB
0.2dB Titanium LNB.
This is the new Titanium second Edition LNB that is widely praised on many web sites.
It has the gold connections and is very low noise. An ultimate performance LNB.
In the May 08 issue of "What Satellite" the Titanium LNB won the group test.
Fantastic value for this very high quality very high gain Aluminium dish. Wall mount included.
When you add a receiver to this dish kit, UK delivery on this complete system is £15.00
Black Orbital dish with LNB and wall mount.
Order code ORB10FK
£89.95

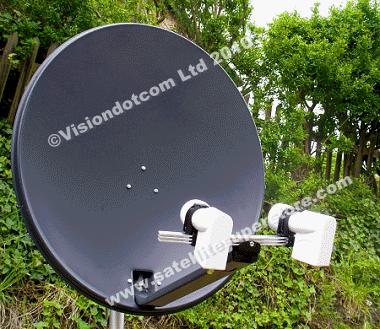

2 satellite dish kits
Add a Triax 80cm TD78 fixed dish kit ideal for 19E & 13E.
Integraded LNBs and switch - 0.3dB. Smart Titanium LNB block. Wall mount included
UK mainland delivery. Choose the standard £10 option or the £12.95 priority option.
Offshore islands - the courier delivery charge is £19.95
International. Choose the international option.
Order code 6MONO78
Only £64.95
Add a 19E & 13E clear transparent
85cm fixed dish kit.
This clear transparent dish kit includes our new clearer 85cm dish, a 6 degree 0.3dB "monoblock"
(two LNBs and diseqc switch in one easy to fit unit) and a wall mount. Smart Titanium LNB block.
The 6 degree block is held by the 40mm clamp and the weaker satellite can be prioritized
at the centre of the boom arm (e.g. Hotbird at 13E). The stronger satellite is the "side-kick"
side of the block. (When LNBs are on each side of the boom arm, the weaker satellite may not
get enough signal). Very good value for a quality kit. Ideal for conservation areas.
Integraded LNBs and switch - 0.3dB. Wall mount included.
UK mainland delivery. Choose the standard £10 option or the £12.95 priority option.
Offshore islands - the delivery charge is £19.95
International. Choose the international option.
Order code 85MONO6
Only £99.95
Add a Triax 90cm TD88 fixed dish kit ideal for 19E & 13E.
Integraded LNBs and switch - 0.3dB Smart Titanium LNB block. Wall mount included.
This 90cm kit offers "all-weather" capabilty.
UK mainland delivery. Choose the standard £10 option or the £12.95 priority option.
Offshore islands - the courier delivery charge is £19.95
International. Choose the international option.
Order code 6MONO88
Only £74.95
Add a Triax TD1.1m fixed dish kit ideal for 19E & 13E.
Integraded LNBs and switch - 0.3dB Smart Titanium LNB block. Wall mount included.
This TD1.1m kit offers "all-weather" capabilty.
UK mainland delivery. Choose the standard £10 option or the £12.95 priority option.
Offshore islands - the courier delivery charge is £19.95
International. Choose the international option.
Order code 6MONO11
Only £94.95
Add a Triax 90cm TD88 fixed dish kit ideal for
16E & 13E or 16E and 19E
Please note that from the UK, 16E needs a 90cm dish.
This kit uses a 3 degree "monoblock" type fitting. The 3 degree monoblock fits a 40mm
feed support boss and so the block can be fitted with the 16E LNB prioritised
in the middle of the boom arm for maximum signal to the weaker satellite.
The "side kick" LNB can then be set for the stronger satellite of 13E or 19E.
Some companies sell this monoblock to fit a none standard 60mm clamp.
Most dishes do not have a 60mm clamp. If fitted in a 60mm clamp, the two LNBs
sit on either side of the boom arm and equal signal is received by each LNB.
This is not ideal as 16E needs more signal and should be prioritised. Therefore, our
40mm kit is better for this 16E application. The second satellite can be either Astra 1
or Hotbird depending on what side of the boom arm the second LNB is set to.
these are integrated LNBs and switch - 0.2dB. Wall mount included.
UK mainland delivery. Choose the standard £10 option or the £12.95 priority option.
Offshore islands - the courier delivery charge is £19.95
International. Choose the international option.
Order code 3MONO88
Only £79.95
Add an 80cm dish kit with
20 degree multibracket for 2 sats
This is the new Titanium second edition LNB that is widely praised on many web sites.
It has the gold connections and is very low noise. An ultimate performance LNB.
In the May 08 issue of "What Satellite" the Titanium LNB won the group test.
Included, Triax TD78 dish, 2 way Diseqc switch, Triax 20 degree multibracket & wall mount,
Two Titanium second edition 0.2dB LNBs. Everything designed by Triax to fit and work together properly.
No universal fit (often badly fitting) products. A total design by the same manufacturer.
Ideal for 28E and 13E, or 28E and 19E etc. Other combinations are possible.
The kit comes with our own specially prepared dish/LNB setting up instructions.
as usual manufacturers instructions are poor and best ignored. Use ours as we have
worked out all the shortcuts. Extra fittings are provided so that a 3rd LNB can be added later.
When you add a receiver to this dish kit, UK delivery on this system is £18.00
Add an 80cm dish 20 degree multibracket
Order code ADD2SAM
Add only £94.95
Add an 90cm dish 20 degree multibracket
The 90cm provides more signal for combinations like 23.5E and 13E, 16E and 28E etc.
Order code ADD2S9M
Add only £104.95
Add a Triax dish with
Triax 20 degree 2 sat Multi LNB kit
This kit is for multiple receivers.
The Triax 9 in 8 out mutiswitch allows up to 2 quatro LNBs on up to 2 satellites to be accessed
on up to 8 satellite receivers (or 4 twin tuner units) One of the inputs is an aerial input
and 8 inputs are for the 2 quatro LNBs. Other professional Triax multiswitches are available
Including 9 in and 16 out and 17 in (for 4 satellites) and 6 out or 16 out) for more
information see the
multiswitch satellite page.
Triax TD 80cm or 90cm dish with 2 quatro LNBs, Triax perfect fit rigid multi bracket, Triax 9
in and 8 out multiswitch, wall mount, instructions. Unlike flexible difficult to set up,
universal fit brackets, this is a dream to use as it is well engineered and designed by
Triax for their own TD dishes. The 80cm kit is ideal for Astra (19E ) and Hotbird (13E).
The 90cm option could be used for 28E and 19E, 13E and 28E, 23.5E and 28E, 23.5E and 13E,
28E and 16E etc. Indeed could also be used for many combinations of satellites.
Every receiver can access any channel on any satellite.
The kit comes with our own specially prepared dish/LNB setting up instructions.
as usual manufacturers instructions are poor and best ignored. Use ours as we have
worked out all the shortcuts. A version of this kit is available with 16 outputs.
A 2 satellite programming option is available above.
More information on these 2, 3, 4 LNB satellite systems is on the
multi sat systems page.
Also read the advice notes lower down the mage after the motorised dish kits to find out why
you need the multiswitch and why twin LNBs or Quad LNBs with several Diseqc switches
is not a good idea when several receivers are to be used.
When you add a receiver to this dish kit, UK, select the "by weight delivery option, it will be £18.00
80cm kit.
Order Code ADDMU79
Add only £274.95
90cm kit.
Order Code ADDMU99
Add only £284.95
Scroll down for motorised dishes.
3 and 4 satellite dish kits
Add a Triax 80cm dish with
Triax 20 degree Multi LNB kit
This is the new Titanium second edition LNB that is widely praised on many web sites.
It has the gold connections and is very low noise. An ultimate performance LNB.
In the May 08 issue of "What Satellite" the Titanium LNB won the group test.
Triax TD 78, 80cm dish with 3 LNBs, Triax perfect fit rigid multi bracket, 4 way Diseqc switch,
wall mount, instructions. Unlike flexible difficult to set up, universal fit brackets, this is
a dream to use as it is well engineered and designed by Triax for their own TD dishes.
We have tested this ourselves. Using a Lacuna meter, a ground stand and Triax TD 78
with the Multi LNB kit. They were set up it our testing area. It took 10 minutes to get prefect
results from all 3 satellites including setting up the stand and dish! (Testing was done with
the Fortec star 5100 receiver) Location - Newcastle - UK
20 degree look angle means that a dish combinations of, Astra 2 (28E), Astra 1 (19E), and Hotbird (13E)
can be received.
The kit comes with our own specially prepared dish/LNB setting up instructions.
as usual manufacturers instructions are poor and best ignored. Use ours as we have worked out all
the shortcuts. Wall mount included.
To summarise, it is possible to receive from Astra 2 to the Hotbird on one fixed dish.
(Could also be used for other combinations of satellites)
A 3 satellite programming option is available above.
A twin LNB option is available below so that a Sky Digibox can also be used all on the same dish
More information on these 3, 4 LNB satellite systems is on the
multi satellite page.
When you add a receiver to this dish kit, UK, select the "by weight delivery option, it will be £18.00
Order Code ADDULT8
Add only £114.95
Add a clear transparent 85cm dish with
Vision 20 degree Multi LNB kit.
This is the new Titanium second edition LNB that is widely praised on many web sites.
It has the gold connections and is very low noise. An ultimate performance LNB.
In the May 08 issue of "What Satellite" the Titanium LNB won the group test.
Three 0.2dB Titanium LNBs, 4 way Diseqc switch and wall mount are included.
Clear Transparent 85cm dish with 3 Titanium 0.3dB LNBs, perfect fit rigid multi bracket, 4 way Diseqc switch,
instructions. Unlike flexible difficult to set up, universal fit brackets, this is a dream to use as it is
well engineered and adapted by the Satellite Superstore for the clear 85cm dishes.
This product is exclusive to the satellite Superstore.
20 degree look angle means that a dish combinations of, Astra 2 (28E), Astra 1 (19E), and Hotbird (13E)
can be received. Note. exact dish dimensions are,
usable area, 85cm high by 80cm wide. Including dish edge they are 89cm high by 84cm wide.
To summarise, it is possible to receive from Astra 2 to the Hotbird on one fixed dish.
(Could also be used for other combinations of satellites)
Twin LNB options are below.
The kit comes with our own specially prepared dish/LNB setting up instructions.
as usual manufacturers instructions are poor and best ignored. Use ours as we have
worked out all the shortcuts. Wall mount included.
When you add a receiver to this dish kit, UK, select the "by weight delivery option, it will be £18.00
International. Choose the international option.
Order Code ADDCL20
Add £169.95
Add a Triax 90cm dish with
Triax 20 degree Multi LNB kit
Triax TD 88, 90cm dish with 4 LNBs, Triax perfect fit rigid multi bracket, 4 way Diseqc switch,
instructions. Unlike flexible difficult to set up, universal fit brackets, this is a dream to use as it is
well engineered and designed by Triax for their own TD dishes.
20 degree look angle means that on one dish, Astra 2 (28E), Astra 2 (19E) and Hotbird (13E)
can be received. With the larger 90cm dish, other combinations of up to 4 satellites are possible
Narrow feedhorn LNBs are used so that satellites that are only 3 degrees apart can be received.
To summarise, it is possible to receive from Astra 2 to the Hotbird on one fixed dish.
(Could also be used for other combinations of satellites)
We have tested this ourselves. Using a Lacuna meter, a ground-stand and Triax TD 78
(the TD 88 will provide more signal) with the Multi LNB kit.
They were set up it our testing area. It took 10 minutes to get prefect results from all 4 satellites including
setting up the stand and dish! (Testing was done with the Fortec star 5100 receiver) Location - Newcastle - UK
Another combination would be 23.5 degrees east, 28, 19 and 13 east. This works will on the 90cm dish.
With a small modification, 28E, 19E, 16E and 13E is also possible.
A 3 satellite programming option is available above.
The kit comes with our own specially prepared dish/LNB setting up instructions.
as usual manufacturers instructions are poor and best ignored. Use ours as we have
worked out all the shortcuts. Wall mount included.
More information on these 3, 4 LNB satellite systems is on the
multi satellite page.
When you add a receiver to this dish kit, UK, select the "by weight delivery option, it will be £18.00
Order Code ADDULT9
Add only £129.95
LNB substitution options,
Upgrade a single LNB to Titanium 0.2dB twin LNB
These are the new Titanium second edition 0.2dB LNBs that are widely praised on many web sites.
The second edition has the gold connections and is very low noise. An ultimate performance LNB.
Dish kit option. - Include a Titanium 0.2dB twin output LNB instead of the single LNB with my system.
If the twin LNB option is to be used with the 3 or 4 multibracket LNB dish kits,
(e.g. Sky Digibox option.)
System option - Include a Titanium 0.2dB LNB twin output LNB instead of the LNB with my 3/4 LNB dish kit.
With the 20 degree multibracket dish kits, if you want to run a Sky Digibox and a free to air
or CI receiver using the one Triax dish fitted with a multibracket, you need to add this option.
The normal CI receiver will pick up the signal from the all 3 or 4 satellites including from
one output from the twin LNB. This will all go through the switch down one cable to the receiver.
The second output of the twin LNB can go down a second cable to the Sky Digibox. The two receiver
can then be watched on (e.g.) AV 1 and AV 2 (or e.g. channel 7 and 8) on the TV. This puts
both systems onto one dish. See the twin LNB on Astra 2 in the picture below.
System option - Include a Titanium 0.2dB twin output LNB instead of the single LNB with my system.
Order code OPT05TW
Add only £10.00
Upgrade a single LNB to a QUAD Titanium 0.2dB LNB
These are the new Titanium second edition 0.2dB LNBs that are widely praised on many web sites.
The second edition has the gold connections and is very low noise. An ultimate performance LNB.
If the quad LNB option is to be used with the 3 or 4 multibracket LNB dish kits.
(e.g. Sky Plus option.)
If you want to run a Sky Plus and a free to air or CI receiver using the one Triax dish fitted
with a multibracket, you need to add this option. The normal receiver will pick up the signal
from the Astra 1 and Hotbird LNB and one output from the quad (4 output) LNB. This will all go
through the switch down one cable to the receiver. The second and third outputs of the quad LNB
can go down two more cables to the Sky Digibox. The two receiver can then be watched on
(e.g.) AV 1 and AV 2 (or e.g. channel 7 and 8) on the TV. This puts both systems onto
one dish.
System option - Include a Titanium 0.2dB quad LNB instead of the LNB with my system.
Order code OPT02QU
Add only £28.00
Add a Triax 90cm dish with
Triax 20 degree 4 sat Multi LNB kit
This kit is for multiple receivers.
The Triax 17 in 6 out mutiswitch allows up to 4 quatro LNBs on up to 4 satellites to be accessed
on up to six satellite receivers (or 3 twin tuner units) One of the inputs is an aerial input
and 16 inputs are for the 4 quatro LNBs. Other professional Triax multiswitches are available
Including 17 in and 16 out and 9 in (for 2 satellites) and 8 out or 16 out) for more
information see the
multiswitch satellite page.
Triax TD 88, 90cm dish with 4 quatro LNBs, Triax perfect fit rigid multi bracket, Triax 17
in and 6 out multiswitch, wall mount, instructions. Unlike flexible difficult to set up,
universal fit brackets, this is a dream to use as it is well engineered and designed by
Triax for their own TD dishes. We have tested this ourselves. Using a Lacuna meter,
a ground stand and Triax TD 78 with the Multi LNB kit. They were set up it our testing area.
It took 10 minutes to get prefect results from all 3 satellites including setting up the
stand and dish! (Testing was done with the Fortec star 5100 receiver) Location - Newcastle - UK
20 degree look angle means that a dish combinations of, Astra 2 (28E), Astra 1 (19E),
and Hotbird (13E) can be received. Could also be used for other combinations of satellites
maybe including 23.5E. Since then we have tested and sold many 4 LNB kits as well.
With a multiswitch, every receiver can access any channel on any satellite.
The kit comes with our own specially prepared dish/LNB setting up instructions.
as usual manufacturers instructions are poor and best ignored. Use ours as we have
worked out all the shortcuts. Wall mount included.
A 3 satellite (or full) programming option is available above.
More information on these 3, 4 LNB satellite systems is on the
multi LNB satellite page.
Also read the advice notes lower down the mage after the motorised dish kits to find out why
you need the multiswitch and why twin LNBs or Quad LNBs with several Diseqc switches
is not a good idea when several receivers are to be used.
When you add a receiver to this dish kit, UK, select the "by weight delivery option, it will be £18.00
Order Code ADDMUL9
Add only £499.95
