2, 3 and 4 LNB brackets with dish options.
20 degree look angle. Bracket shown above left shows 3 standard LNBs. Narrow feed
twin LNB shown above right. The bracket shown above is fitted with 3 LNBs but can be
fitted with 2 or 4 LNBs. All brackets come with 4 LNB holders.
These brackets fit our Primesat 60cm, 80cm, 1.0m and 1.1m dishes but are most commonly used with 80cm and 1.0m dishes.
If 4 satellite are required or 16E is included we recommend you use a Primesat 1.0m dish otherwise use an Primesat
80cm dish. You can add an 80cm dish or a 1.0m dish below including a wall mount.
How to configure your bracket options -
Narrow feed LNBs are required when satellites are only 3 degrees apart. we only sell twin narrow feed LNBs.
Possible satellites - 28E (Astra 2), 19E (Astra 1), 13E (Hotbird), 23.5E (Astra 3b) , 16E (Eutelsat) on one fixed dish
Common 2-satellite combinations - 28E (Astra 2) and 19E (Astra 1). 2 standard LNBs required.
Common 2-satellite combinations - 28E (Astra 2) and 13E (Hotbird). 2 standard LNBs required.
Common 2-satellite combinations - 16E (Eutelsat) and 13E (Hotbird). Narrow feed LNBs required.
Common 3-satellite combinations - 28E (Astra 2), 19E (Astra 1), 13E (Hotbird). 3 Standard LNBs required.
Common 3-satellite combinations - 19E (Astra 1), 16E (Eutelsat), 13E (Hotbird). 3 narrow feed LNBs required
Common 4-satellite combinations - 28E (Astra 2), 19E (Astra 1), 16E (Eutelsat), 13E (Hotbird)
1 standard LNB for 28E and 3 narrow feed LNBs required.
Common 4-satellite combinations - 28E (Astra 2), 23.5E (Astra 3B), 19E (Astra 1), 13E (Hotbird). 4 standard LNBs required.
Single LNBs need 1 diseqc switch, twins need 2 and quads need 4.
Twin LNBs need 2 diseqc switches and quad LNBs need 4 diseqc switches.

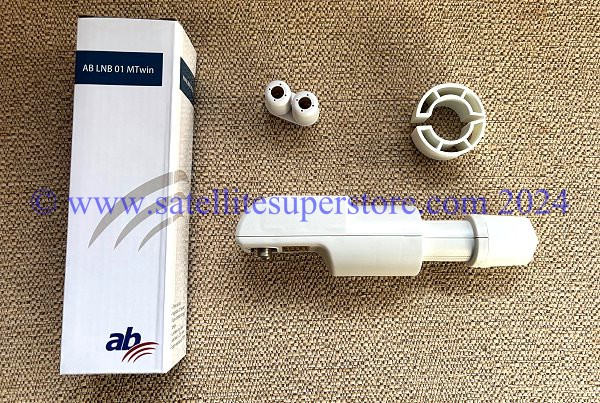

Very high quality products. 20 degree look angle. The narrow feed twin LNBs have very narrow feedhorns. The LNB neck is only 23mm and
the feedhorn cap is only a fraction larger. It is easy to achieve 3 degrees of separation. 23mm to 40mm spacers are included.
Shipping information and options. (
VAT info.) (
Stock levels.)
Choose either "
free mainland UK delivery" - UK shipping
option No 1 or
priority options 4-7.
For "
UK offshore islands including Northern Ireland by courier" dishes up
to 80cm choose the £15 - UK shipping option No 2.
International - Republic of Ireland - dishes up to 80cm - choose the £15 "fixed price
multiple items to Eire" shipping option.
International - within the EU - dishes up to 80cm - choose the £38 "1 box up to 20Kg by
courier
to EU countries" shipping option.
International - outside of the EU - all dishes/sizes - choose the "
International shipping
quote by e-mail" shipping option.

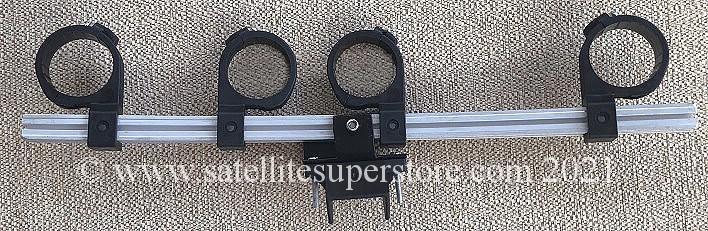

Primesat LNB bracket only. Without LNBs. You can customise your options below.
Fits the 60cm, 80cm, 1.0m and 1.1m Primesat dishes. 4 LNB holders included.
Order Code PBRACKET
£54.95
Options, only if required, will be automatically added to the LNB bracket when you "add to cart" below.
