(After clicking on a link below ..........) System dish options (..use the back button to return here)
Add a dish kit to your receiver.

Add a 1 sat dish - 54cm 60cm 60cm transparent 80cm 85cm transparent 60,70,90cm heavy duty 90cm 1.0m 1.1m
Add a 2 sat dish - 6 degree 19E & 13E 4.3 degree 9E & 13E 3 degree 16E & 13E or 19E & 13E 20 deg. e.g. 28E & 13E or 19E
Add a 3/4-sat dish - 3-sat 80cm, 90cm 85cm Transparent 4-sat 90cm 1m 3/4-sat Multiswitch 80, 90, 85cm, 1.0m
Add a motorised dish kit - 80cm 85cm transparent 90cm 90cm heavy duty 1.0m aluminium 1.1m 1.2m 1.4m 1.5m 1.8m
We can scan / load detailed channel data for you - 1 sat 2 sat 3 sat 4 sat motorised all sats.
Click on a link above or scroll down. Links go to the start of a section. Pages are long. Scroll down.

Single satellite dish kits

Add a Primesat 60cm easy-fit dish kit.
Ideal for Astra 2, freesat, Sky or Astra 1.


Primesat 60cm easy fit dish. Primesat 60cm easy fit dish.

Primesat 60cm easy fit dish. Primesat 60cm easy fit dish.

Galvanised wall mount Twin LNB option Titanium boxed

The first time we assembled this dish it took less than 60 seconds. It would be even faster if we had done it before.
The bolts that go through the dish reflector screw into captive threads so nuts on the back are not needed. The elevation
adjuster clips on and two nuts adjust and hold it tight. The push fit LNB support arm takes one seconds to locate.
Corrosion protection is provided using a Polyester RAL7035 powder coating dish reflector. The one piece back plate
is an ABS type of injection moulded strong plastic integrated design. The elevation adjuster and pole clamps are
galvanised. The LNB support arm (boom arm) is made of aluminium. Many dishes these days now only use one U clamp
to save costs. This dish uses two U clamps. The double U clamping design ensures a more rigid opposition to high
winds and prevents turning on the pole. This dish will clamp to poles from 25-50mm diameter. Gain 36.4dB. A version of this
dish is available with wing nuts for mobile caravan / motorhome use and as a full mobile dish kit with stand, cable etc.
This dish is ideal for freesat or Sky TV from Astra 2 at 28E. It will work on this satellite in the UK and Northern France.
It will provide more signal than a Sky mini dish. It can also be used for Astra 1 at 19E from the UK and most of western Europe.
Read about the problems and disadvantages of "Sky mini dishes". This is a standard dish which offers many advantages.

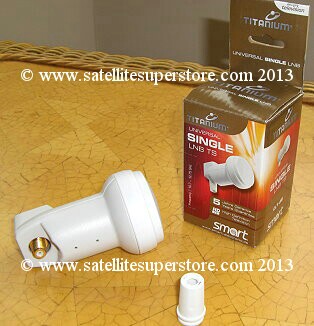

A single Smart Titanium third edition LNB from Smart Electronic in Germany is included. It is widely praised on many
web sites and has an excellent reputation. It has the gold screw in connections which are longer lasting and is very low noise.
An ultimate performance LNB. In the May 08 issue of "What Satellite" magazine the 2nd edition Titanium LNB won the group
test. This is the new third edition model which is even better. Below you will see very good prices for such high quality equipment.
To sumarise, a quality brandname "Primesat" 60cm dish with single 0.1dB Titanium LNB and optional galvanised wall mount.
It is possible to upgrade the single LNB to a twin, quad, octo or quatro LNB
using the LNB upgrade options

Also see the heavy duty dishes below for high wind and high salt locations.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add a Primesat 60cm easy fit dish with 0.1dB Titanium LNB and wall mount.
A standard wall mount is included.
Order code ADP60LWB
49.95

Add a Primesat 60cm easy fit dish with 0.1dB Titanium LNB without wall mount.
If an above the gutter long pole wall mount is required instead of a standard mount,
choose this kit "without wall mount" and click here to see the other mount options.
Order code ADP60LNB
39.95



Add a Primesat 85cm "easy fit"
high gain dish.


Titanium boxed Primesat 1.0m aluminium dish.

Primesat 60cm easy fit dish. Primesat 60cm easy fit dish.

High quality high gain easy fit.
This is a quality precision made dish at an excellent price.
The first time we assembled this dish it took less than 60 seconds. It would be even faster if we had done it before.
The bolts that go through the dish reflector screw into captive threads so nuts on the back are not needed. 2 bolts hold the
dish to the back plate using 2 wing nuts and they adjust it tight. The push fit LNB support arm takes one seconds to locate.
Corrosion protection is provided using a Polyester RAL7035 powder coating dish reflector. The one piece back plate
is an ABS type of injection moulded strong plastic integrated design. The elevation adjuster and pole clamps are
galvanised. The LNB support arm (boom arm) is made of aluminium. Many dishes these days now only use one U clamp
to save costs. This dish uses two U clamps. The double U clamping design ensures a more rigid opposition to high
winds and prevents turning on the pole. This dish will clamp to poles from 25-50mm diameter. Gain 39.1dB. A version of this
dish is available with wing nuts for mobile caravan / motorhome use and as a full mobile dish kit with stand, cable etc.
A high quality product. Very good value considering the higher grade materials used and the superb performance.
This is the new Titanium third edition LNB from Smart Electronic in Germany. It is widely praised on many web sites and
has an excellent reputation. It has the gold connections and is very low noise. An ultimate performance LNB. In the May 08 issue
of "What Satellite" magazine the 2nd edition Titanium LNB won the group test. This is the new third edition which is even better.
The 85cm dish is ideal for Astra 2 at 28E for freesat and Sky TV in the uk and offers "all weather" capability in north Scotland.
Also suitable for Astra 1 at 19E and Hotbird at 13E. Use also for Astra 2 from northern France and and central France
(and most eu countries) but the weaker channels would be lost in the south of France. A 1.25m dish
is needed in southern France for Astra 2. (Check out www.satbeams.com/footprints for more details.)
Quality brandname "Primesat" 85cm dish with 0.1dB Titanium LNB and optional wall mount.
It is possible to upgrade the single LNB to a twin, quad, octo or quatro LNB
using the LNB upgrade options
.
These upgrade options only apply if you are ordering a dish with a single LNB (you pay the difference in price - or less) They do
not apply if you are ordering a dish without an LNB. 1m and 2m pole "above the gutter" wall mounts are available.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add a Primesat easy fit 85cm dish with Titanium LNB and wall mount.
A standard wall mount is included.
In stock and ready for immediate shipping
Order code ADP85LW
69.95

Add a Primesat easy fit 85cm dish with Titanium LNB (without wall mount).
If an above the gutter long pole wall mount is required instead of a standard mount,
choose this kit "without wall mount" and see other mount options below.
In stock and ready for immediate shipping
Order code ADP85LN
59.95



Add an 85cm Primesat transparent dish kit.
e.g. Ideal for Astra 1 or 2 & Hotbird at 13E.


85cm Clear dish 85cm Clear dish

85cm Clear dish 60cm and 85cm clear dishes

This new 85cm dish is clearer than the older type we used to sell and is stronger with re-inforcing structures on the back of the
dish. The new dish also uses a slimmer back plate which adds to the ability to see right through it. A motorised clear 85cm
dish is also available. Transparent 85cm dish with 0.1dB Titanium LNB and optional wall mount.
(See more of our Pimesat products at www.primesat.eu)
Also see above the new Titanium third edition LNB from Smart Electronic in Germany. It is widely praised on many web sites and
has an excellent reputation. It has the gold connections and is very low noise. An ultimate performance LNB. In the May 08 issue
of "What Satellite" magazine the 2nd edition Titanium LNB won the group test. This is the new third edition which is even better.
It is possible to upgrade the single LNB to a twin, quad, octo or quatro LNB
using the LNB upgrade options

These upgrade options only apply if you are ordering a dish with a single LNB (you pay the difference in price - or less) They do
not apply if you are ordering a dish without an LNB. 1m and 2m pole "above the gutter" wall mounts are also available.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add an 85cm Primesat clear dish kit, LNB and wall mount to my receiver.
A standard wall mount is included.
Order code AD85FIL
Add only 109.95

Add an 85cm Primesat clear dish kit with LNB without wall mount
If an above the gutter long pole wall mount is required instead of a standard mount,
choose this kit "without wall mount" and click here to see the other mount options.
Order code AD85FIN
Add only 99.95



Add a Heavy Duty 60cm/70cm/90cm
Triax fibre glass dish kit.


Triax heavy duty fibre glass dish Titanium third edition single LNB Triax heavy duty fibre glass dish

Ideal for high wind and high salt areas.
Available in black or cream.
It is easy to peel off the stickers from the dish face if preferred. The 70cm dish is shown above. This is a heavy duty high wind load
dish kit ideal for use in high salt "near the coast" locations. Clearly the fibre glass dish cannot corrode and the mount on the back uses
a much heavier gauge steel and is dipped galvanised. Stainless steel nuts, bolts and U clamps are included. A very high quality dish kit.
Included is the new Titanium third edition LNB from Smart Electronic in Germany. It is widely praised on many web sites and
has an excellent reputation. It has the gold connections and is very low noise. An ultimate performance LNB. In the May 08 issue
of "What Satellite" magazine the 2nd edition Titanium LNB won the group test. This is the new third edition which is even better.
Kit includes Triax heavy duty fibre glass dish with 0.1dB Titanium LNB and a optional wall mount. A heavy duty galvanised
wall mount is also available instead of the normal wall mount option. Choose the dish WITH wall mount and add the HD mount option.
It is possible to upgrade the single LNB to a twin, quad, octo or quatro LNB
using the LNB upgrade options

These upgrade options only apply if you are ordering a dish with a single LNB (you pay the difference in price - or less) They do
not apply if you are ordering a dish without an LNB. 1m and 2m pole "above the gutter" wall mounts are available.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add a heavy duty 60cm Triax fibre glass dish kit with wall mount.
A standard wall mount is included.
You can upgrade to a heavy duty dipped galvanised mount. Click here to upgrade.

In black - Order code AD60FFL
Add 115.00

In cream - Order code AD60FFLC
Add 115.00

Add a heavy duty 60cm Triax fibre glass dish kit without wall mount.
an above the gutter long pole wall mount is required instead of a standard mount,
choose this kit "without wall mount" and click here to see the other mount options.

In black - Order code AD60FF0
Add 105.00

In cream - Order code AD60FF0C
Add 105.00

Add a heavy duty 70cm Triax fibre glass dish kit with wall mount.
A standard wall mount is included.
You can upgrade to a heavy duty dipped galvanised mount. Click here to upgrade.

In black - Order code AD70FFL
Add 125.00

In cream - Order code AD70FFLC
Add 125.00

Add a heavy duty 70cm Triax fibre glass dish kit without wall mount
If an above the gutter long pole wall mount is required instead of a standard mount,
choose this kit "without wall mount" and click here to see the other mount options.

In black - Order code AD70FF0
Add 115.00

In cream - Order code AD70FF0C
Add 115.00

Add a heavy duty 90cm Triax fibre glass dish kit with wall mount.
A standard wall mount is included.
For a a higher level of corrosion protection you can upgrade to the 340mm stand off heavy duty dipped galvanised mount
providing the dish is on a south facing wall and does not need a large stand off distance (to point up or down the street),
however, if a large stand off distance is required, the T mount option also offers a higher level
of corrosion protection than the standard mount.

In black - Order code AD90FFLB
Add 175.00

In cream - Order code AD90FFLC
Add 175.00

Add a heavy duty 90cm Triax fibre glass dish kit without wall mount
If an above the gutter long pole wall mount is required instead of a standard mount,
choose this kit "without wall mount" and see other mount options below.

In black - Order code AD90FF0
Add 165.00

In cream - Order code CFG90TI
Add 165.00



Dish option - Upgrade the standard wall mount to a
50mm dipped galvanised mount.


340mm galvanised wall mount

340mm stand off.
This mount is "dipped galvanised" and is designed for high salt areas.
It uses heavy gauge steel and is galvaised which is the best method available for a thick coating.
Ideal for dishes up to 70cm. Also fine for 80cm dishes where the wall is mainly south facing.
With a stand off of only 340mm it is not ideal for 80cm dishes or larger on south eastern or south western.
walls as the dish would not have the clearance to point up or down the street. 4 bolt fixing.
Coach bolts and plugs for fixing on the wall are available from the satellite cable page (4 required)

Dish option - Upgrade the standard wall mount to a dipped galvanised mount.
This is a dish option only. To buy this wall mount without buying a dish click here.
Order code OPTW34G
Add only 14.95



Dish option, Upgrade the standard wall mount to a
galvanised T mount.


T Mount

480mm stand off.
Constructed with galvanised steel, 50mm (2") dia. mast. 480mm stand-off. Suitable for dishes up to 1.1m. 6 bolt fixing.
Better for high salt areas.
Dish kit option only.

Dish option - Upgrade the standard wall mount to a dipped galvanised T mount.
This is a dish option only. To buy this wall mount without buying a dish click here.
Order code OPTTMOF
Add ONLY 19.95



Dish option - Primesat wall mount S1D
for all dishes up to 90cm


Wall Mount S1D Wall Mount S1D

Suitable for Triax TD 54, 64cm, 80cm, 90cm and 85cm transparent dishes if facing south. Ideal if the wall
is south facing and the dish needs a minimum stand off distance of 150mm. Do not use this wall mount if
the dish has to poiint up or down the street as more stand off distance would be needed.
Material - Aluminium. Construction. Welded Aluminium. Very high quality aluminium welds.
Stand off distance 150mm to inside of pole. Pole diameter 48mm
Coach bolts and plugs for fixing on the wall are available from the satellite cable page (4 required)
This wall mount not suitable for Raven (formall Andrews and before that Channel Master) dishes as they need a 76mm (3-inch) pole.
This wall mount is not suitable for the Primesat transparent 60cm dish. (Clamps will not fit). Use wall mount 1E or 1J

Primesat elbow (small) S1D. 4 bolt fixing. 15cm stand off.
This option is only applicable if you have already added a dish with wall mount to your shopping cart and you want to upgrade
the wall mount from a standard mount to this one. To buy this wall mount separatly go to the wall mounts page.
Order code OPTES1D
Only 4.95



Add a 90cm dish kit.
e.g. Ideal for Hotbird at 13E (or 16E).


1D wall mount Triax dishes now black Titanium boxed

The 90cm dish is ideal for Astra 2 at 28E for freesat and Sky TV in the uk and offers "all weather" capability even in the north.
Also suitable for Astra 1 at 19E, Hotbird at 13E, 16E, 30W and other medium to low power satellites. Use also for Astra 2 in northern
and middle France and Germany. (Check out www.satbeams.com/footprints for more details.) A motorised Triax 90cm
is also available. Quality brandname "Triax" TD88, 90cm dishes with 0.1dB Titanium LNB and optional wall mount.
This is the new Titanium third edition LNB from Smart Electronic in Germany. It is widely praised on many web sites and
has an excellent reputation. It has the gold connections and is very low noise. An ultimate performance LNB. In the May 08 issue
of "What Satellite" magazine the 2nd edition Titanium LNB won the group test. This is the new third edition which is even better.
It is possible to upgrade the single LNB to a twin, quad, octo or quatro LNB
using the LNB upgrade options

These upgrade options only apply if you are ordering a dish with a single LNB (you pay the difference in price - or less) They do
not apply if you are ordering a dish without an LNB. 1m and 2m pole "above the gutter" wall mounts are available.
If you live in an area that receives regular snowfall, you may be interested in a satellite dish heater.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add a Triax 90cm dish kit with LNB and wall mount
A standard wall mount is included.
Order code AD88FIL
Add only 74.95

Add a Triax 90cm dish kit with LNB without wall mount
If an above the gutter long pole wall mount is required instead of a standard mount,
choose this kit "without wall mount" and click here to see the other mount options.
Order code AD88FIN
Add only 64.95



Add a Primesat 1.0m aluminium dish. Low
cost, high quality, high gain.


Titanium boxed Primesat 1.0m aluminium dish. Primesat 1.0m aluminium dish, quad LNB option

Primesat 1.0m aluminium dish. Primesat 1.0m aluminium.

New product. High Quality. High Gain. Aluminium. Easy adjust.
0.1dB Smart Titanium LNB included and optional Primesat 450mm wall mount. This aluminium
dish has a total weight of only 8.3Kg. (A steel 1.0m weighs 10Kg.) The gain is a massive 40.3dB at 12.75GHhz
and the finish is Polyester RAL7035 powder coating.This 1.0m dish is ideal for many satellites when used in the UK.
The easy adjust AZEL mount on the back of the dish (where elevation is adjusted) is galvanised. It will clamp to poles
from 35mm to 60mm diameter. Smart Titanium LNB from "Smart Electronic GmbH" in Germany. Smart also make
professional meters and Diseqc switches. This is the new Titanium third edition LNB that is widely praised on many
web sites. It has the gold connections and is very low noise. An ultimate performance LNB. Ideal for situations where
the maximum dish size cannot be increased. This LNB has a high output and so it is also very good for long cable runs,
e.g. longer than 35m. In the comparative LNB test in April 08 What Satellite magazine, the second edition (0.2dB) LNB
performed best of all. This new Titanium 0.1dB third edition LNB improves on the previous model.
It is possible to upgrade the single LNB to a twin, quad, octo or quatro LNB
using the LNB upgrade options


Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add a Primesat 1.0m high gain aluminium dish with Smart Titanium 0.1dB LNB
and Primesat wall mount included.

A standard wall mount is included.
Order code ADP100LWB
Only 109.90.

Add a Primesat 1.0m high gain aluminium dish without Smart Titanium 0.1dB LNB
without wall mount.

If an above the gutter long pole wall mount is required instead of a standard mount,
choose this kit "without wall mount" and click here to see the other mount options.
Order code ADP100LNB
Only 99.90.



Add a Primesat 1.1m aluminium dish.
Low cost, high quality, high gain.


Primesat 1.1m aluminium dish. Titanium boxed Primesat 1.1m aluminium dish with wing nuts.

Primesat 1.1m aluminium dish with wing nuts. Primesat 1.1m aluminium dish with wing nuts.

New product. Coming soon. First stocks - 20th November.
Optional 0.1dB LNB and Smart Titanium LNB and optional Primesat 430mm wall mount (or see option).
This aluminium dish has a total weight of only 7.5Kg. (A steel 1.1m weighs 11Kg.) The gain is a massive 41.2dB at
12.75GHhz and the coating is Polyester RAL7035 powder coating. It is available in light grey or very dark grey (almost black).
The easy adjust AZEL mount on the back of the dish (where elevation is adjusted) is galvanised. It will clamp to poles
from 35mm to 60mm diameter. Smart Titanium LNB from "Smart Electronic GmbH" in Germany. Smart also make
professional meters and diseqc switches. This is the new Titanium third edition LNB that is widely praised on many
web sites. It has the gold connections and is very low noise. An ultimate performance LNB. Ideal for situations where
the maximum dish size cannot be increased. This LNB has a high output and so it is also very good for long cable runs,
e.g. longer than 35m. In the comparative LNB test in April 08 What Satellite magazine, the second edition (0.2dB) LNB
performed best of all. This Titanium 0.1dB third edition LNB improves on the previous model. This 1.1m dish is ideal for
many satellites when used in the UK. Extensive testing shows this dish to work very well for the Sky or freesat channels
from Astra 2 when used by customers in the south of France where signal levels are weak.
It is possible to upgrade the single LNB to a twin, quad, octo or quatro LNB
using the LNB upgrade options

These upgrade options only apply if you are ordering a dish with a single LNB (you pay the difference in price - or less) They do
not apply if you are ordering a dish without an LNB. 1m and 2m pole "above the gutter" wall mounts are available.
Shipping information.
Please note that due to the large size (volume) of the 1.1m dish there are extra (top up) delivery charges for "out of area UK postcodes".
Most UK postcodes have no extra charges. Areas like the Scottish highlands are not covered. Therefore delivery
is included to selected mainland UK postcodes. There is a 15.00 delivery charge to offshore islands including Northern
Ireland to selected postcodes. If your postcode is not on the list, this may be because it is "outside of main city areas" and
so click on the link here to see if your post code is covered. If your postcode is on the list, delivery charges are in "included to
mainland destinations" (but remember to select the 15 option for offshore islands). Postcodes are provided by "Parcelforce".
If your postcode is not on the list, you will need a shipping quotation. If you place an order, the shipping quote will be emailed
to you. You can then either accept the quote and pay at the link provided, or decline the quote and your order will be refunded, or,
you may prefer to email us for a quote on the contact page. If your postcode is on the list please also note that next day
delivery is not available. This is a 48 hour "large item delivery service". Most UK postcodes are on the list.

Shipping options. Discounted shipping on all internet orders. (VAT info.) (Stock levels.)
UK - mainland UK delivery (selected postcodes only) is included in the price,
so choose "UK mainland delivery included" - UK shipping option No 1. Click here for selected postcodes.
For "UK offshore islands including Northern Ireland by courier" to selected postcodes choose the 15 - UK shipping option No 2.
For all other UK destinations - choose shipping option 1. A shipping quotation will be emailed to you for a top up payment.
International - within the EU - 1.1m and 1.2m dishes - choose the 69 "Oversized item to an EU destination" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add a black Primesat 1.1m high quality aluminium dish with Smart Titanium 0.1dB LNB
and Primesat wall mount.

A standard wall mount with a 430mm stand off is included.
If the dish is to be at right angles to the wall, the 480mm stand off heavy duty wall mount upgrade option should be selected here.
New product. 1st stocks due on the 20th Nov 2013 but you can pre-order now.
Order code OPTP11F
Add only 109.95.

Add a black Primesat 1.1m high quality aluminium dish with Smart Titanium 0.1dB single
LNB without wall mount.

If an above the gutter long pole wall mount is required instead of a standard mount,
choose this kit "without wall mount" and click here to see the other mount options.
New product. 1st stocks due on the 20th Nov 2013 but you can pre-order now.
Order code ADP11SW
Add only 99.95



2 satellite dish kits

Add a Primesat 85cm "Easy Fit" and clear dish kits
ideal for 19E & 13E.


Primesat 60cm easy fit dish. 85cm Clear dish monoblock

The first time we assembled the "Easy Fit" dish it took less than 60 seconds. It would be even faster if we had done it before.
The bolts that go through the dish reflector screw into captive threads so nuts on the back are not needed. 2 bolts hold the
dish to the metal back plate clamps and 2 nuts provide adjustment. The push fit LNB support arm takes one seconds to locate.
Corrosion protection is provided using a Polyester RAL7035 powder coating dish reflector. The one piece back plate
is an ABS type of injection moulded strong plastic integrated design. The elevation adjuster and pole clamps are
galvanised. The LNB support arm (boom arm) is made of aluminium. Many dishes these days now only use one U clamp
to save costs. This dish uses two U clamps. The double U clamping design ensures a more rigid opposition to high
winds and prevents turning on the pole. This dish will clamp to poles from 25-50mm diameter. Gain 39.1dB. (Plenty of signal.)
The Primesat clear transparent dish kit includes our new clearer 85cm dish. We have not seen a transparent dish as clear as
this one. Ideal for conservation areas or where appearance is a prime concern. Again plenty of signal.
Integrated LNBs and diseqc switch. This is the 0.1dB Titanium monoblock from Smart Electronic in Germany. It is widely praised
on many web sites and has an excellent reputation. An ultimate performance monoblock. Smart Titanium also make high quality
diseqc switches and one of these switches is built into this monoblock. They also make professional meters.
Quality brandname "Primesat" 85cm easy fit and transparent dishes. Optional standard wall mount.
The monoblock can be upgraded to a twin or quad monoblock below.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add a Primesat 85cm "Easy Fit" fixed dish kit ideal for 19E & 13E.
Wall mount included.

A standard wall mount is included. If an above the gutter long pole wall mount is required
instead of a standard mount, you can deduct the wall mount from your dish kit. See below.
Order code AD85EF6
Only 79.95

Add a Primesat transparent 85cm fixed dish kit ideal for 19E & 13E.
Wall mount included.

A standard wall mount is included. If an above the gutter long pole wall mount is required
instead of a standard mount, you can deduct the wall mount from your dish kit. See below.
Order code AD85TR6
Only 119.95

Remove wall mount from dish kit.
Order code DEDUCT
Deduct 10.00

Twin and quad monoblock dish options for 19E & 13E.

Titanium 6 degree twin monoblock Inverto 6 degree quad monoblock

Inverto black Pro monoblocks also have a very high reputation.
If you are ordering a 19E and 13E monoblock dish kit, you can upgrade the kit to a twin or quad monoblock using these
upgrade options. This will enable more than one receiver to be used, or twin tuner receivers. These are 6 degree
monoblocks.Here we are taking out the single monoblock and replacing it with a twin or quad. You pay The difference
in price. This is a DISH OPTION ONLY. To buy these monoblocks separately go to the Monoblock page.

Upgrade to twin monoblock option for 19E & 13E.
"Replace the single monoblock in my dish order for a twin Titanium monoblock"
Order code OPTTWMO
Only 17.50

Upgrade to quad monoblock option for 19E & 13E.
"Replace the single monoblock in my dish order for a quad Inverto Black Pro monoblock"
Order code OPTQUMO
Only 39.95



Monoblock LNBs

6 degree kit monoblock 6 degree twin monoblock

Monoblock LNBs to look at two satellites (6 degree and 3 degree) are on the Monoblock page.
Multibrackets for 2 LNBs that are up to 20 degrees apart are on the multibracket page.



Add a Lightweight Primesat aluminium
1.0m fixed dish kit ideal for 19E & 13E.


6 degree kit Primesat 1.0m aluminium dish. Primesat 1.0m aluminium.

Aluminium dishes are lighter, don't rust and are higher quality.
Very high gain well designed dishes. They produces more gain than any other dish we know of for their size. These are precision made
aluminum dishes at an excellent price. Since they are made of aluminium and not steel they are much lighter than much smaller steel
dishes. A high quality product range. Very good value considering the higher grade materials used and the superb performance.
This aluminium dish has a total weight of only 8.3Kg. The gain is a massive 40.3dB at 12.75GHhz and the finish is Polyester
RAL7035 powder coating.This 1.0m dish is ideal for many satellites when used in the UK. The easy adjust AZEL mount
on the back of the dish (where elevation is adjusted) is galvanised. It will clamp to poles from 35mm to 60mm diameter.
This dish would be ideal for Scotland and in the north or for "all weather" capability in the worst of the winter.
Integrated LNBs and Diseqc switch. This is the 0.1dB Titanium monoblock from Smart Electronic in Germany. It is widely praised
on many web sites and has an excellent reputation. An ultimate performance monoblock. Smart Titanium also make high quality
diseqc switches and one of these switches is built into this monoblock. They also make professional meters. Quality
brandname "Primesat" 1.0m dish. Optional standard wall mount. This dish kit offers "all-weather" capability even
in northern Scotland. The monoblock can be upgraded to a twin or quad monoblock above.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add a Primesat 1.0m fixed dish kit ideal for 19E & 13E. Wall mount included.
A standard wall mount is included. If an above the gutter long pole wall mount is required
instead of a standard mount, you can deduct the wall mount from your dish kit. See below.
Order code AD100P6
Only 119.95

Remove wall mount from dish kit.
Order code DEDUCT
Deduct 10.00



Add a Primesat 85cm Easy Fit and transparent dish kits
ideal for 9E & 13E


Primesat 60cm easy fit dish. 85cm Clear dish monoblock

The first time we assembled the "Easy Fit" dish it took less than 60 seconds. It would be even faster if we had done it before.
The bolts that go through the dish reflector screw into captive threads so nuts on the back are not needed. 2 bolts hold the
dish to the metal back plate clamps and 2 nuts provide adjustment. The push fit LNB support arm takes one seconds to locate.
Corrosion protection is provided using a Polyester RAL7035 powder coating dish reflector. The one piece back plate
is an ABS type of injection moulded strong plastic integrated design. The elevation adjuster and pole clamps are
galvanised. The LNB support arm (boom arm) is made of aluminium. Many dishes these days now only use one U clamp
to save costs. This dish uses two U clamps. The double U clamping design ensures a more rigid opposition to high
winds and prevents turning on the pole. This dish will clamp to poles from 25-50mm diameter. Gain 39.1dB. (Plenty of signal.)
The Primesat clear transparent dish kit includes our new clearer 85cm dish. We have not seen a transparent dish as clear as
this one. Ideal for conservation areas or where appearance is a prime concern. Again plenty of signal.
Integrated LNBs and diseqc switch. This is the 0.1dB Titanium monoblock from Smart Electronic in Germany. It is widely praised
on many web sites and has an excellent reputation. An ultimate performance monoblock. Smart Titanium also make high quality
diseqc switches and one of these switches is built into this monoblock. They also make professional meters.
Quality brandname "Primesat" 85cm easy fit and transparent dishes. Optional standard wall mount.
The monoblock can be upgraded to a quad monoblock below.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Primesat 85cm "Easy Fit" fixed dish kit ideal for 9E & 13E. Wall mount included.
A standard wall mount is included. If an above the gutter long pole wall mount is required
instead of a standard mount, you can deduct the wall mount from your dish kit. See below.
Order code AD85EF4
Only 79.95

Add a Primesat 85cm clear transparent dish kit ideal for Hotbird at 9E & 13E.
Wall mount included

A standard wall mount is included. If an above the gutter long pole wall mount is required
instead of a standard mount, you can deduct the wall mount from your dish kit. See below.
Order code AD85TR4
119.95

Remove wall mount from dish kit.
Order code DEDUCT
Deduct 10.00

Quad monoblock dish options for 9E & 13E.

4.3 degree quad monoblock

Unfortunately there are no twin 4.3 degree monoblocks. Only Quad output.
If you are ordering a 9E and 13E monoblock dish kit, you can upgrade the kit to a quad monoblock using this
upgrade option. This will enable more than one receiver to be used, or twin tuner receivers. This is a 4.3 degree
monoblock. Here we are taking out the single monoblock and replacing it with a quad. You pay The difference
in price. This is a DISH OPTION ONLY. To buy this monoblock separately go to the Monoblock page.

Upgrade to quad Maximum monoblock option for 9E & 13E.
"Replace the single monoblock in my dish order for a quad monoblock"
Order code OPTTWMO4
Only 44.95



Add a Primesat 1.0m fixed dish kit
ideal for 16E & 13E or 16E and 19E


Primesat 1.0m aluminium dish. 6 degree kit Primesat 1.0m aluminium.

Very high gain well designed dishes. They produces more gain than any other dish we know of for their size. These are precision made
aluminum dishes at an excellent price. Since they are made of aluminium and not steel they are much lighter than much smaller steel
dishes. A high quality product range. Very good value considering the higher grade materials used and the superb performance.
This aluminium dish has a total weight of only 8.3Kg. The gain is a massive 40.3dB at 12.75GHhz and the finish is Polyester
RAL7035 powder coating.This 1.0m dish is ideal for weaker satellites like 16E when used in the UK. The easy adjust AZEL mount
on the back of the dish (where elevation is adjusted) is galvanised. It will clamp to poles from 35mm to 60mm diameter. From
the UK, 16E needs at least a 90cm dish. This 1.0m kit provides plenty of signal and uses a 3 degree monoblock. The 3 degree
monoblock fits a 40mm feed support boss and so the block can be fitted with the 16E LNB prioritised in the middle of the
boom arm for maximum signal to the weaker satellite. The "side kick" LNB can then be set for the stronger satellite of 13E
or 19E. Some companies sell this monoblock to fit a none standard 60mm clamp. Most dishes do not have a 60mm clamp. If
fitted in a 60mm clamp, the two LNBs sit on either side of the boom arm and equal signal is received by each LNB. This
is not ideal as 16E needs more signal and should be prioritised. Therefore, our 40mm kit is better for this 16E
application. The second satellite can be either Astra 1 or Hotbird depending on what side of the boom arm the second
LNB is set to. Integrated LNBs and diseqc switch. Optional wall mount. This is the Inverto Black Pro monoblock.
It has an excellent reputation. An ultimate performance monoblock. You can upgrade to a twin monoblock below.
The kit comes with our own specially prepared dish/LNB setting up instructions. As usual manufacturers
instructions are poor and best ignored. Use ours as we have worked out all the shortcuts.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add a Primesat 1.0m fixed dish kit (e.g. for 16E & 13E). Wall mount included.
A standard wall mount is included. If an above the gutter long pole wall mount is required
instead of a standard mount, you can deduct the wall mount from your dish kit. See below.
Order code AD100P3
Only 119.95

Remove wall mount from dish kit.
Order code DEDUCT
Deduct 10.00

Twin Inverto 3 degree monoblock dish option.

4.3 degree quad monoblock

Unfortunately there are no twin 4.3 degree monoblocks. Only Quad output.
If you are ordering a 3 degree monoblock dish kit, you can upgrade the kit to a twin monoblock using this
upgrade option. This will enable more than one receiver to be used, or a twin tuner receiver. This is a 3 degree
monoblock. Here we are taking out the single monoblock and replacing it with a twin. You pay The difference
in price. This is a DISH OPTION ONLY. To buy this monoblock separately go to the Monoblock page.

Twin Inverto 3 degree monoblock dish option.
"Replace the single monoblock in my dish order for a twin monoblock"
Order code OPTTWMO2
Only 8.55



Add a Primesat 85cm solid and transparent
dish kits with 20 degree multibracket for
2 satellites. (e.g. 28E & 19E, 28E & 13E)


Transparent 85cm dish Titanium third edition single LNB 20 degree 2 sat dish kit

The two satellites could be, Astra 2 (28E) and Astra 1 (19E), Astra 2 (28E) and Hotbird (13E), 23.5E and 10E, 23.5E and 13E
and many other options. The "East Fit" dish only takes a couple of minutes to assemble. It has a gain of 39.1dBs. More details.
The clear transparent dish is ideal for conservation areas and is very clear. The sunlight and background can shine through.
Included are the new Titanium third edition LNB from Smart Electronic in Germany. They are widely praised on many web sites and
have an excellent reputation. they have the gold connections and are very low noise. Ultimate performance LNBs. In the May 08 issue
of "What Satellite" magazine the 2nd edition Titanium LNB won the group test. This is the new third edition which is even better.
Quality brandname "Primesat" dishes, 2-way Titanium diseqc switch, 20 degree aluminium multibracket,
2 Titanium third edition 0.1dB LNBs and (optional) wall mount (You can deduct the wall mount)
The kit comes with our own specially prepared dish/LNB setting up instructions. (as usual manufacturers instructions are poor and
best ignored). Use ours as we have worked out all the shortcuts. Extra fittings are provided so that a 3rd LNB can be added later.
Options - for twin tuner receivers or more receivers,
You can change the 2 single LNB to 2 twin, 2 quad, 2 quatro or 2 octo LNBs (add these options twice for two LNBs).
When using 2 twin LNBs, you need an extra 2-way diseqc switch. With two quad LNBs you need 2 extra 2-way diseqc switches etc.
Scroll down for an 85cm dish for 2 satellites including a multiswitch to provide multiple satellite points in every room.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add a Primesat East Fit 85cm dish, 20 degree multibracket with 2 LNBs,
diseqc switch and wall mount.

A standard wall mount is included. If an above the gutter long pole wall mount is required
instead of a standard mount, you can deduct the wall mount from your dish kit.
Order code AD85EF20
124.95

Add a Primesat Transparent 85cm dish, 20 degree multibracket with 2 LNBs,
diseqc switch and wall mount.

A standard wall mount is included. If an above the gutter long pole wall mount is required
instead of a standard mount, you can deduct the wall mount from your dish kit.
Order Code AD85TR20
164.95

Remove wall mount from dish kit.
Order code DEDUCT
Deduct 10.00

Add a Primesat 85cm solid and transparent
dish with multiswitch, 20 degree, 2 satellite
multi-LNB kit. (e.g. 28E & 19E, 28E & 13E)


Transparent 85cm dish Titanium third edition quatro LNB 20 degree 2 sat dish kit

EMP-Centauri 9 input, 26 output multiswitch

This kit is for multiple receivers.
This kit is ideal for providing multiple satellite points in various rooms and then viewing channels from 2 satellite.
The EMP 9 in 8 out mutiswitch takes 2 quatro LNBs on 2 satellites to be accessed using up to 8 satellite receivers
(or 4 twin tuner units) One of the inputs is an aerial input and 8 inputs are for the 2 quatro LNBs. Other professional EMP Centauri
multiswitches are available Including 9 in and 16 out and 13 in (for 3 satellites) and 17 (for 4 satellites) for more information
see the multiswitch satellite page. Primesat 85cm dish with 2 quatro LNBs, and 20 degree aluminium multibracket, EMP
9 in and 8 out multiswitch, optional wall mount, instructions. The Primesar 85cm and "Easy Fit" and clear transparent
dishes are ideal for Astra 2 at 28E and Hotbird at 13E or Astra 1 at 19E and other satellite combination options.
(e.g. 23.5E and 28E, 23.5E and 13E). Indeed it could also be used for many combinations of satellites. Every receiver can
access any channel on any satellite. The kit comes with our own specially prepared dish/LNB setting up instructions. As usual
manufacturers instructions are poor and best ignored. Use ours as we have worked out all the shortcuts. A version of this kit is
available with 16 outputs. These are the new Titanium third edition LNB from Smart Electronic in Germany. They are widely
praised on many web sites and have an excellent reputation. they have the gold connections and are very low noise. Ultimate
performance LNBs. In the May 08 issue of "What Satellite" magazine the 2nd edition Titanium LNB won the group test. This is
the new third edition which is even better. You can upgrade the multiswitch from 8 outputs from 12 outputs to 26 outputs below.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add a Primesat "East" Fit 85cm dish, 20 degree multibracket with 2 quatro
LNBs. 9 X 8 EMP Centuari multiswitch and wall mount.

A standard wall mount is included. If an above the gutter long pole wall mount is required
instead of a standard mount, you can deduct the wall mount from your dish kit.
Order code AD85E20M
289.95

Add a Primesat Transparent 85cm dish, 20 degree multibracket with 2 quatro
LNBs. 9 X 8 EMP Centuari multiswitch and wall mount.

A standard wall mount is included. If an above the gutter long pole wall mount is required
instead of a standard mount, you can deduct the wall mount from your dish kit.
Order Code AD85T20M
329.95

Remove wall mount from dish kit.
Order code DEDUCT
Deduct 10.00



System Multiswitch Options.

Upgrade an EMP Centauri 9 X 8 multiswitch to an EMP Centauri 9 X 12 multiswitch.
If you want to buy a 9 by 12 multiswitch only, order it from the multiswitch page
Order code OPT9X12
Add 25.00

Upgrade an EMP Centauri 9 X 8 multiswitch to an EMP Centauri 9 X 16 multiswitch.
If you want to buy a 9 by 16 multiswitch only, order it from the multiswitch page
Order code OPT9X16
Add 65.00

Upgrade an EMP Centauri 9 X 8 multiswitch to an EMP Centauri 9 X 20 multiswitch
This is a system option only. We take out one multiswitch from the kit and substitute another.
If you want to buy a 9 by 20 multiswitch only, order it from the multiswitch page
Order code OPT9X20
Add 90.00

Upgrade an EMP Centauri 9 X 8 multiswitch to an EMP Centauri 9 X 26 multiswitch
This is a system option only. We take out one multiswitch from the kit and substitute another.
If you want to buy a 9 by 26 multiswitch only, order it from the multiswitch page
Order code OPT9X26
Add 190.00



3 and 4 satellite dish kits

Add a Primesat 3-sat dish kit, 3 Titanium LNBs,
85cm Easy Fit or 85cm transparent dish.


3 LNB, 3 satellite kit 3 LNB, 3 satellite kit

Primesat Easy Fit 85cm dish 85cm Clear dish

The three satellites could be, Astra 2 (28E), Astra 1 (19E), and Hotbird (13E), or 28E, 23.5E, 19E, or 28E, 23.5E, 19E and many
other options. The "East Fit" dish only takes a couple of minutes to assemble. It has a high gain of 39.1dBs. More details.
The clear transparent dish is ideal for conservation areas and is very clear. The sunlight and background can shine through.
Included are the new Titanium third edition LNB from Smart Electronic in Germany. They are widely praised on many web sites and
have an excellent reputation. they have the gold connections and are very low noise. Ultimate performance LNBs. In the May 08 issue
of "What Satellite" magazine the 2nd edition Titanium LNB won the group test. This is the new third edition which is even better.
Quality brandname "Primesat" dishes, 4-way Titanium Diseqc switch, 20 degree aluminium multibracket,
3 Titanium third edition 0.1dB LNBs and (optional) wall mount (You can deduct the wall mount)
The kit comes with our own specially prepared dish/LNB setting up instructions. (as usual manufacturers instructions are poor and
best ignored). Use ours as we have worked out all the shortcuts. Extra fittings are provided so that a 4th LNB can be added later.
Options - for twin tuner receivers or more receivers,
You can change the 3 single LNB to 3 twin, 3 quad, 3 quatro or 3 octo LNBs (add these options three times for three LNBs).
When using 3 twin LNBs, you need one extra 4-way Diseqc switch. With three quad LNBs you need three extra 4-way Diseqc switches.
If extra outputs are needed for even more additional receivers check out the multiswitch options below.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add a Primesat 85cm Easy Fit dish, 20 degree multibracket, 3 Titanium LNBs,
4 way Diseqc switch, wall mount.

A standard wall mount is included. If an above the gutter long pole wall mount is required
instead of a standard mount, you can deduct the wall mount from your dish kit.
Order Code AD85EF3S
Add only 139.95

Add a Primesat 85cm transparent dish, 20 degree multibracket, 3 Titanium LNBs,
4 way Diseqc switch, wall mount.

A standard wall mount is included. If an above the gutter long pole wall mount is required
instead of a standard mount, you can deduct the wall mount from your dish kit.
Order Code AD85TR3S
Only 179.95

Remove wall mount from dish kit.
Order code DEDUCT
Deduct 10.00



Add a Primesat 1.0m 3 or 4-sat dish kit, Inverto
MultiConnect LNB kit and wall mount option.


Inverto 3 satellite Multiconnect Kit Inverto 4 satellite Multiconnect Kit Inverto 4 satellite Multiconnect Kit

Primesat 1.0m aluminium dish. Inverto 4 satellite Multiconnect Kit. Easy to adjust LNBs Primesat 1.0m aluminium.

The 3 or 4 satellites could be from the following list - 28E (Astra 2), 19E (Astra 1), 13E (Hotbird), 16E, 23.5E or
other combinations. Very high quality products. 20 degree look angle. Even the LNBs have been specially designed for
this bracket and have very narrow feedhorns. The LNB neck is only 23mm and the feedhorn cap is only a fraction larger.
It is easy to achieve 3 degrees of separation. 23mm to 40mm spacers are included so that the centre LNB can attach to
a standard 40mm LNB boss on the end of the main feed support arm. Unlike some other systems one LNB can be at the
centre of the boom arm to maximise signal on a weak satellite. Universal dish interface. LNBs designed for a 3 degree
separation or larger. The Diseqc switches cleverly clip onto the main bracket. The leads are all factory made-up and
included to join all parts of the system together. Everything is supplied in quality presentation cases. This is very
impressive kit. 3 or 4 LNBs are included. This kit includes TWO Diseqc switches and so if FOUR twin LNB upgrades are
added below, two receivers or a twin tuner receiver can be connected. They will see all 4 sats. This aluminium
dish has a total weight of only 8.3Kg. (Higher quality than steel.) The gain is a massive 40.3dB at 12.75GHhz and
the finish is Polyester RAL7035 powder coating. This Primesat 1.0m dish is ideal for many satellites when used in
the UK. The easy adjust AZEL mount on the back of the dish (where elevation is adjusted) is galvanised. The
lower centre picture shows how easily these LNBs can be adjusted. One easy to turn screw allows the LNB to be adjusted
sideways or up and down. It is only when you set up this kit that you realise the quality of the design and engineering.
Options - extra outputs, e.g. for twin tuner receivers,
This kit includes TWO 4-way Diseqc switches and connecting cables. It is "twin LNB ready". If THREE twin LNB
upgrades are added below, a twin tuner receiver (or two single tuner receivers can be connected. They will see
all 3 satellites. If this is required see the Twin LNB options below. The twin LNB option must then be added 3 times.
Also see the Quad LNB and Quatro LNB options below. One quad LNB may be needed
If extra outputs are needed for even more additional receivers check out the multiswitch options below.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add a Primesat 1.0m dish. Inverto multiConnect kit, 3 Inverto single narrow LNBs,
Diseqc switches and wall mount

A standard wall mount is included. If an above the gutter long pole wall mount is required
instead of a standard mount, you can deduct the wall mount from your dish kit.
Order Code AD1003LNB
Add only 209.95

Add a Primesat 1.0m dish. Inverto multiConnect kit, 4 Inverto single narrow LNBs,
Diseqc switches and wall mount

A standard wall mount is included. If an above the gutter long pole wall mount is required
instead of a standard mount, you can deduct the wall mount from your dish kit.
Order Code AD1004LNB
Add only 219.95

Remove wall mount from dish kit.
Order code DEDUCT
Deduct 10.00



Add an Inverto MultiConnect 3 or 4 satellite kit.
Triax 90cm heavy duty fibre glass dish.

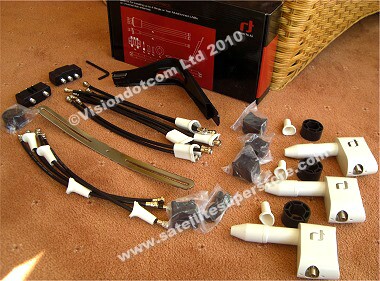

Inverto 3 satellite Multiconnect Kit Inverto 4 satellite Multiconnect Kit Inverto 4 satellite Multiconnect Kit

Triax heavy duty fibre glass dish Inverto 4 satellite Multiconnect Kit. Easy to adjust LNBs

Dish available in black or cream. Possible satellite conbinations -
Use on - Astra 2 at 28E, Astra 1 at 19E, 16E, 23.5E, Hotbird at 13E or other combinations. These are very
high quality products. 24 degree look angle. Even the LNBs have been specially designed for this bracket and
have very narrow feedhorns. The LNB neck is only 23mm and the feedhorn cap is only a fraction larger. It is
easy to achieve 3 degrees of separation. 23mm to 40mm spacers are included so that the centre LNB can attach
to a standard 40mm LNB boss on the end of the main feed support arm. Unlike some other systems one LNB can be
at the centre of the boom arm to maximise signal on a weak satellite. Universal dish interface. LNBs designed
for a 3 degree separation or larger. The Diseqc switches cleverly clip onto the main bracket. The leads are
all factory made-up and included to join all parts of the system together. Everything is supplied in quality
presentation cases. This is very impressive kit. 3 or 4 LNBs are included. This kit includes TWO Diseqc switches
and so if FOUR twin LNB upgrades are added below, two receivers or a twin tuner receiver can be connected. They
will see all 4 sats. Options. Choose a black or a cream dish. (The dish in the picture is the black version). The
dish is a heavy duty high wind load kit ideal for use in high salt "near the coast" locations. Clearly the fibre
glass dish cannot corrode and the mount on the back uses a much heavier gauge steel and is dipped galvanised.
Stainless steel nuts, bolts and U clamps are included. A very high quality dish kit.
Options - for twin tuner receivers,
This kit includes TWO 4-way Diseqc switches and connecting cables. It is "twin LNB ready". If THREE twin LNB
upgrades are added below, a twin tuner receiver (or two single tuner receivers can be connected. They will see
all 3 satellites. If this is required see the Twin LNB options below. The twin LNB option must then be added 3 times.
Also see the Quad LNB and Quatro LNB options below. One quad LNB may be needed
if extra outputs are needed for additional receivers looking at Sky or Freesat in the 28E position.
Also check out the quatro LNB multiswitch options below if required.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add an Inverto MultiConnect 3 sat system kit with 3 LNBs,
Triax heavy duty fibre glass 90cm dish with wall mount.

A standard wall mount is included. If an above the gutter long pole wall mount is required
instead of a standard mount, you can deduct the wall mount from your dish kit.

Black 90cm dish -
Order Code AD90D3SB
Add only 239.95

Cream 90cm dish -
Order Code AD90D3SC
Add only 239.95

Add an Inverto MultiConnect 4 sat system kit with 4 LNBs,
Triax heavy duty fibre glass 90cm dish with wall mount.

A standard wall mount is included. If an above the gutter long pole wall mount is required
instead of a standard mount, you can deduct the wall mount from your dish kit.

Black 90cm dish -
Order Code AD90D4SB
Add only 249.95

Cream 90cm dish -
Order Code AD90D4SC
Add only 249.95

Remove wall mount from dish kit.
Order code DEDUCT
Deduct 10.00



Using multiple output multiswitches.

Add a 3-sat dish kit. 13 input multiswitch,
85cm Easy Fit & 85cm transparent dishes


3 LNB, 3 satellite kit 3 LNB, 3 satellite kit

85cm Clear dish EMP-Centauri 13 input, 12 output multiswitch

The three satellites could be, Astra 2 (28E) and Astra 1 (19E), and Hotbird (13E) or 28E, 23.5E, 19E or 28E, 23.5E and 13E
and many other options. The "East Fit" dish only takes a couple of minutes to assemble. It has a gain of 39.1dBs. More details.
The clear transparent dish is ideal for conservation areas and is very clear. The sunlight and background can shine through.
Included are the new Titanium third edition LNB from Smart Electronic in Germany. They are widely praised on many web sites and
have an excellent reputation. they have the gold connections and are very low noise. Ultimate performance LNBs. In the May 08 issue
of "What Satellite" magazine the 2nd edition Titanium LNB won the group test. This is the new third edition which is even better.
The 13 input EMP multiswitch is from the excellent EMP Professional range. More details here. Below you can increase the number
of outputs from 8 to 12, 16 and 26 outputs using the upgrade options below. Quality brandname "Primesat" dishes, 4-way Titanium
diseqc switch, 20 degree aluminium multibracket, 3 Titanium third edition 0.1dB LNBs and (optional) wall mount (You can deduct
the wall mount). This kit provides LNB points to be situated in many rooms in a house, depending on the size of multiswitch selected.
Diseqc switching receivers can then access any of the 3 satellites from any room. Dedicated receivers will see the main satellite.
The kit comes with our own specially prepared dish/LNB setting up instructions. (as usual manufacturers instructions are poor and
best ignored). Use ours as we have worked out all the shortcuts. Extra fittings are provided so that a 3rd LNB can be added later.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add a 3 satellite dish kit. 13 input emp-centauri 8 output multiswitch, 85cm Easy Fit
dish, 20 degree multibracket, 3 quatro LNBs and wall maunt.

A standard wall mount is included. If an above the gutter long pole wall mount is required
instead of a standard mount, you can deduct the wall mount from your dish kit.
You can substitute the 8 output multiswitch for a multiswitch with more outputs below.
Order Code AD85EF3M
Add only 369.95

Add a 3 satellite dish kit. 13 input emp-centauri 8 output multiswitch, 85cm transparent
dish, 20 degree multibracket, 3 quatro LNBs and wall maunt.

A standard wall mount is included. If an above the gutter long pole wall mount is required
instead of a standard mount, you can deduct the wall mount from your dish kit.
You can substitute the 8 output multiswitch for a multiswitch with more outputs below.
Order Code AD85TR3M
Add only 419.95

Remove wall mount from dish kit.
Order code DEDUCT
Deduct 10.00

Kit option - Upgrade 13 x 8 multiswitch to an EMP 13 x 12 multiswitch.
(i.e. We take out the multiswitch normally included and replace it with a larger one. You pay the difference in price.)
Order code UP13X12
39.95

Kit option - Upgrade 13 x 8 multiswitch to an EMP 13 x 16 multiswitch.
(i.e. We take out the multiswitch normally included and replace it with a larger one. You pay the difference in price.)
Order code UP13X16
79.95

Kit option - Upgrade 13 x 8 multiswitch to an EMP 13 x 26 multiswitch.
(i.e. We take out the multiswitch normally included and replace it with a larger one. You pay the difference in price.)
Order code UP13X26
199.95



Add a Inverto MultiConnect 4-sat dish kit with
4 quatro LNBs, Primesat 1.0m dish, EMP
17 input multiswitch, and wall mount.


Primesat 1.0m aluminium dish. Inverto 4 satellite Multiconnect Kit. Easy to adjust LNBs Primesat 1.0m aluminium.

ALT= EMP-Centauri 17 input, 16 output multiswitch

This high gain high quality aluminium dish has a total weight of only 8.3Kg. (A steel 1.0m weighs 10Kg.) The
gain is a massive 40.3dB at 12.75GHhz and the finish is Polyester RAL7035 powder coating.This Primesat 1.0m
dish is ideal for many satellites when used in the UK. The easy adjust AZEL mount on the back of the dish (where
elevation is adjusted) is galvanised. The 4 satellites could be from the following list -
28E (Astra 2), 19E (Astra 1), 13E (Hotbird), 23.5E and 16E on one fixed dish (or other combinations.) Very high quality
products. 24 degree look angle. Even the LNBs have been specially designed for this bracket and have very narrow
feedhorns. The LNB neck is only 23mm and the feedhorn cap is only a fraction larger. It is easy to achieve 3 degrees of
separation. 23mm to 40mm spacers are included so that the centre LNB can attach to a standard 40mm LNB boss on the end
of the main feed support arm. Unlike other systems one LNB can be at the centre of the boom arm to maximise signal on
a weak satellite. Universal dish interface. LNBs designed for a 3 degree separation or larger. A 17 input multiswitch
is included. The leads in the picture are all factory made-up and included to join all parts of the system together.
(However, the leads and Diseqc switches in the kit are not needed in a quatro LNB, multiswitch installation). Everything
is supplied in quality presentation cases. This is very impressive kit. 4 quatro LNBs are included. This kit provides LNB
points to be situated in many rooms in a house, depending on the size of multiswitch selected. Diseqc switching receivers
can then access any of the 3 satellites from any room. Dedicated receivers will see the main satellite. The lower centre
picture shows how easily these LNBs can be adjusted. One easy to turn screw allows the LNB to be adjusted sideways or up
and down. It is only when you set up this kit that you realise the quality of the design and engineering. The kit comes
with our own specially prepared dish/LNB setting up instructions. (as usual manufacturers instructions are poor and best
ignored). Use ours as we have worked out all the shortcuts.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add an Inverto MultiConnect 4 quatro LNB kit, Primesat 1.0m dish,
EMP 17 X 8 multiswitch and wall mount.

A standard wall mount is included. If an above the gutter long pole wall mount is required
instead of a standard mount, you can deduct the wall mount from your dish kit.
You can substitute the 8 output multiswitch for a multiswitch with more outputs below.
Order Code ADP1004M
Add only 399.95

Remove wall mount from dish kit.
Order code DEDUCT
Deduct 10.00

Kit option - Upgrade 17 x 8 multiswitch to an EMP 17 x 16 multiswitch.
(i.e. We take out the multiswitch normally included and replace it with a larger one. You pay the difference in price.)
Order code UP17X16
99.95

Kit option - Upgrade 17 x 8 multiswitch to an EMP 17 x 26 multiswitch.
(i.e. We take out the multiswitch normally included and replace it with a larger one. You pay the difference in price.)
Order code UP17X26
249.95



Motorised Systems,

FREE INSTALLATION KIT WORTH about 40.00 included
with all motorised systems. For full details of kit contents, CLICK HERE
Included in our motorised kits is what we consider to be the best Diseqc motors available. The Technomate motors.
We have used these motors for many years and they have been utterly reliable. Even though the TM2300 has worked
perfectly with the larger 1.0m dish we are now packaging the 90cm and 1.0m dishes with the TM2600 motor.
The TM2300 motor uses ultra QUIET gears and unlike some motors there is no play in the Technomate motor from new.
Technomate motors also hang from above giving better dish clearance. The TM2600 uses metal gears and so it is now
packaged with the larger dishes. That being said the TM2300 was never a problem but for exposed locations the TM2600
should offer more strength. With dishes below 90cm we still believe that the best option is the very quite TM2300
motor which has already proved it's long term reliability in the past with dishes up to 1.0m Also note that we do
not recommend the use of Diseqc motors on steel dishes over 90cm or aluminium dishes over 1.0m.
For larger dishes use a 36-volt motor and a V Box.
The heavier duty 36-volt motor dish kits (1.2m, 1.5m and 1.8m dishes) are below the Diseqc motor dishes.



Add a Primesat 85cm aluminium
motorised dish.


Primesat 85cm aluminium motorised dish. Primesat 1.0m aluminium dish.

High quality high gain ALUMINIUM dish.
Aluminium dishes are lighter, don't rust and are more expensive.
This is a precision made aluminum dish at an excellent price.

The first time we assembled this (fixed) dish it took less than 60 seconds (setting up the motor takes longer).
The bolts that go through the dish reflector screw into captive threads so nuts on the back are not needed. 2 bolts hold the
dish to the metal back plate clamps and 2 nuts provide adjustment. The push fit LNB support arm takes one seconds to locate.
Corrosion protection is provided using a Polyester RAL7035 powder coating dish reflector. The one piece back plate
is an ABS type of injection moulded strong plastic integrated design. The elevation adjuster and pole clamps are
galvanised. The LNB support arm (boom arm) is made of aluminium. Many dishes these days now only use one U clamp
to save costs. This dish uses two U clamps. The double U clamping design ensures a more rigid opposition to high
winds and prevents turning on the pole. This dish will clamp to poles from 25-50mm diameter. Gain 39.1dB. A version of this
dish is available with wing nuts for mobile caravan / motorhome use and as a full mobile dish kit with stand, cable etc.
Since this dish is made of aluminium and not steel it is much lighter than much smaller steel dishes.
A high quality product. Very good value considering the higher grade materials used and the superb performance.
The quiet, reliable Technomate TM2300 motor is included.
Included is the new Titanium third edition LNB from Smart Electronic in Germany. It is widely praised on many web sites and
has an excellent reputation. It has the gold connections and is very low noise. An ultimate performance LNB. In the May 08 issue
of "What Satellite" magazine the 2nd edition Titanium LNB won the group test. This is the new third edition which is even better.
It is possible to upgrade the single LNB to a twin, quad, octo or quatro LNB
using the LNB upgrade options

It is worthwhile checking out our support page page (especially if you plan to do the fitting yourself) and the
wall mounts and ground stands page. The motor requires a 50-76mm diameter pole. Also see the special offer wall mount .

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - within the EU - systems up to 1.0m - choose the 69 "3 boxes up to 60Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add a Primesat 85cm aluminium motorised dish kit with
Titanium 0.1dB LNB and quiet Technomate TM2300 motor

Click here to see a special offer, discounted wall mount or check out other wall mounts & ground stands.
Order code OPT85PRS
Only 99.95



Add a Primesat transparent 85cm Diseqc
motorised dish kit to my receiver.

Clear 85cm motorised dish with Technomate motor and 0.1dB LNB.

85cm Clear dish TM-2600 motor.

Titanium boxed

The Primesat clear dish is ideal for conservation areas or customers who would like a motorised dish that is not very noticeable.
Included is the Smart Titanium LNB from "Smart Electronic GmbH" in Germany. Smart also make professional meters and
diseqc switches. This new Titanium LNB is the third edition that is widely praised on many web sites. It has the gold
connections and is very low noise. An ultimate performance LNB. Ideal for situations where the maximum dish size cannot
be increased. This LNB has a high output and so it is also very good for long cable runs, e.g. longer than 35m
In the comparative LNB test in April 08 What Satellite magazine, the second edition (0.2dB) LNB performed
best of all. This new Titanium 0.1dB third edition LNB improves on the previous model.
Also included is the very reliable Technomate motor.
It is possible to upgrade the single LNB to a twin, quad, octo LNB
using the LNB upgrade options

A free fitting kit with detailed instructions is included with all full motorised systems.
It is worthwhile checking out our support page page (especially if you plan to do the fitting yourself)
and the wall mounts and ground stands page. This dish requires a 50mm diameter pole,
wall mount (or ground stand) but also see the special offer T Mount below.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - within the EU - systems up to 1.0m - choose the 69 "3 boxes up to 60Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add a Primesat clear 85cm motorised dish kit, Technomate motor and
Titanium LNB to my receiver.

Click here to see a special offer, discounted wall mount or check out other wall mounts and ground stands.
Order code AD85CMO
Add only 144.95



Add a 90cm motorised dish
kit to my receiver.

Triax TD88 90cm motorised dish with Technomate TM2600 motor & 0.1dB LNB.

Triax dish against sky TM-2600 motor.

Titanium boxed

Included is the Smart Titanium LNB from "Smart Electronic GmbH" in Germany. Smart also make professional meters and
diseqc switches. This new Titanium LNB is the third edition that is widely praised on many web sites. It has the gold
connections and is very low noise. An ultimate performance LNB. Ideal for situations where the maximum dish size cannot
be increased. This LNB has a high output and so it is also very good for long cable runs, e.g. longer than 35m
In the comparative LNB test in April 08 What Satellite magazine, the second edition (0.2dB) LNB performed
best of all. This new Titanium 0.1dB third edition LNB improves on the previous model.
Also included is the very reliable Technomate motor.
It is possible to upgrade the single LNB to a twin, quad, octo LNB
using the LNB upgrade options

A free fitting kit with detailed instructions is included with all full motorised systems.
It is worthwhile checking out our support page page (especially if you plan to do the fitting yourself)
and the wall mounts and ground stands page. This dish requires a 50mm diameter pole,
wall mount (or ground stand) but also see the special offer T Mount below.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - within the EU - systems up to 1.0m - choose the 69 "3 boxes up to 60Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add an 90cm motorised dish kit, Technomate TM2600 motor and
Titanium LNB to my receiver.

Click here to see a special offer, discounted wall mount or check out other wall mounts & ground stands.
Order code AD88MOT
Add only 119.95



Add a 1.0m Primesat motorised dish kit.
Primesat 1.0m motorised dish with Technomate TM2600 motor & 0.1dB Titanium LNB.

TM-2600A Titanium boxed Primesat 1.0m aluminium.

New product. High Quality. High Gain. Aluminium. Easy adjust.
0.1dB Smart Titanium LNB
This aluminium dish has a total weight of only 7.5Kg. (A steel 1.1m weighs 11Kg.) The gain is a massive 40.3dB at
12.75GHhz and the coating is Polyester RAL7035 powder coating. It is available in very dark grey (almost black).
The easy adjust AZEL mount on the back of the dish (where elevation is adjusted) is galvanised. It will clamp to poles
from 35mm to 60mm diameter. Smart Titanium LNB from "Smart Electronic GmbH" in Germany. Smart also make
professional meters and diseqc switches. This is the new Titanium third edition LNB that is widely praised on many
web sites. It has the gold connections and is very low noise. An ultimate performance LNB. Ideal for situations where
the maximum dish size cannot be increased. This LNB has a high output and so it is also very good for long cable runs,
e.g. longer than 35m. In the comparative LNB test in April 08 What Satellite magazine, the second edition (0.2dB) LNB
performed best of all. This Titanium 0.1dB third edition LNB improves on the previous model. The Technomate 2600
motor with metal gears is a very reliable motor. This 1.0m dish is ideal for many satellites when used in the UK.
It is possible to upgrade the single LNB to a twin or quad LNB using the LNB upgrade options
A free fitting kit with detailed instructions is included with all full motorised systems.
It is worthwhile checking out our support page page (especially if you plan to do the fitting yourself)
and the wall mounts and ground stands page. This dish requires a 50mm diameter pole,
wall mount (or ground stand) but also see the special offer wall mount below. (Discounted.)

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 59 "2 boxes up to 40Kg by courier to EU countries" shipping option
International - within the EU - systems up to 1.0m - choose the 69 "3 boxes up to 60Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add a 1.0m Primesat motorised dish. Technomate TM2600 motor and Titanium LNB.
Click here to see a special offer, discounted wall mount or check out other wall mounts & ground stands.
Order code ADP100MO
Only 149.95



Add a Primesat 1.1m aluminium dish.
Low cost, high quality, high gain.


TM-2600A Titanium boxed Primesat 1.1m aluminium dish with wing nuts.

New product. High Quality. High Gain. Aluminium. Easy adjust.
0.1dB and Smart Titanium LNB included.
This aluminium dish has a total weight of only 7.5Kg. (A steel 1.1m weighs 11Kg.) The gain is a massive 41.2dB at
12.75GHhz and the coating is Polyester RAL7035 powder coating. It is available in very dark grey (almost black).
The easy adjust AZEL mount on the back of the dish (where elevation is adjusted) is galvanised. It will clamp to poles
from 35mm to 60mm diameter. Smart Titanium LNB from "Smart Electronic GmbH" in Germany. Smart also make
professional meters and diseqc switches. This is the new Titanium third edition LNB that is widely praised on many
web sites. It has the gold connections and is very low noise. An ultimate performance LNB. Ideal for situations where
the maximum dish size cannot be increased. This LNB has a high output and so it is also very good for long cable runs,
e.g. longer than 35m. In the comparative LNB test in April 08 What Satellite magazine, the second edition (0.2dB) LNB
performed best of all. This Titanium 0.1dB third edition LNB improves on the previous model. The Technomate 2600
motor with metal gears is a very reliable motor. This 1.1m dish is ideal for many satellites when used in the UK.
It is possible to upgrade the single LNB to a twin or quad LNB using the LNB upgrade options
A free fitting kit with detailed instructions is included with all full motorised systems.
It is worthwhile checking out our support page page (especially if you plan to do the fitting yourself)
and the wall mounts and ground stands page. This dish requires a 50mm diameter pole,
wall mount (or ground stand) but also see the special offer wall mount below. (Discounted.)
Shipping information.
Please note that due to the large size (volume) of the 1.1m dish there are extra (top up) delivery charges for "out of area UK postcodes".
Most UK postcodes have no extra charges. Areas like the Scottish highlands are not covered. Therefore delivery
is included to selected mainland UK postcodes. There is a 15.00 delivery charge to offshore islands including Northern
Ireland to selected postcodes. If your postcode is not on the list, this may be because it is "outside of main city areas" and
so click on the link here to see if your post code is covered. If your postcode is on the list, delivery charges are in "included to
mainland destinations" (but remember to select the 15 option for offshore islands). Postcodes are provided by "Parcelforce".
If your postcode is not on the list, you will need a shipping quotation. If you place an order, the shipping quote will be emailed
to you. You can then either accept the quote and pay at the link provided, or decline the quote and your order will be refunded, or,
you may prefer to email us for a quote on the contact page. If your postcode is on the list please also note that next day
delivery is not available. This is a 48 hour "large item delivery service". Most UK postcodes are on the list.

Shipping options. Discounted shipping on all internet orders. (VAT info.) (Stock levels.)
UK - mainland UK delivery (selected postcodes only) is included in the price,
so choose "UK mainland delivery included" - UK shipping option No 1. Click here for selected postcodes.
For "UK offshore islands including Northern Ireland by courier" to selected postcodes choose the 15 - UK shipping option No 2.
For all other UK destinations - choose shipping option 1. A shipping quotation will be emailed to you for a top up payment.
International - within the EU - 1.1m dishes - choose the 89 "Oversized item to an EU destination" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add a Primesat 1.1m aluminium dish with Technomate TM2600 motor
and 0.1dB Titanium LNB

Click here to see a special offer, discounted wall mount or check out other wall mounts & ground stands.
Order code ADPR11M
Only 159.95



Add a Triax 90cm heavy duty fibre glass
dish with Technomate TM2600 motor.
and 0.1dB LNB.


Triax fibre glass dish TM-2600A

Titanium boxed

Included is the Smart Titanium LNB from "Smart Electronic GmbH" in Germany. Smart also make professional meters and
diseqc switches. This new Titanium LNB is the third edition that is widely praised on many web sites. It has the gold
connections and is very low noise. An ultimate performance LNB. Ideal for situations where the maximum dish size cannot
be increased. This LNB has a high output and so it is also very good for long cable runs, e.g. longer than 35m
In the comparative LNB test in April 08 What Satellite magazine, the second edition (0.2dB) LNB performed
best of all. This new Titanium 0.1dB third edition LNB improves on the previous model.
Also included is the very reliable Technomate motor. This is a heavy duty high wind load dish kit ideal
for use in high salt "near the coast" locations. Clearly the fibre glass dish cannot corrode and the mount
on the back uses a much heavier gauge steel. This is a very high quality dish kit. The kit includes Triax
heavy duty fibre glass dish with 0.1dB LNB and Technomate TM2600 motor.
It is possible to upgrade the single LNB to a twin, quad, octo LNB
using the LNB upgrade options

A free fitting kit with detailed instructions is included with all full motorised systems.
It is worthwhile checking out our support page page (especially if you plan to do the fitting yourself)
and the wall mounts and ground stands page. This dish requires a 50mm diameter pole,
wall mount (or ground stand) but also see the special offer T Mount below.
Available in black or cream

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" systems up to 1.0m choose the 15 - UK shipping option No 2.
International - Republic of Ireland - systems up to 1.0m - choose the 15 "fixed price multiple items to Eire" shipping option
International - within the EU - systems up to 1.0m - choose the 69 "3 boxes up to 60Kg by courier to EU countries" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add a Black Triax 90cm heavy duty fibre glass motorised dish with
Technomate TM2600 motor and Titanium 0.1dB LNB.

Click here to see a special offer, discounted wall mount or check out other wall mounts and ground stands.
In BlackOrder code ADHD9FG
Add only 199.95

Add a Cream Triax 90cm heavy duty fibre glass motorised dish with
Technomate TM2600 motor and Titanium 0.1dB LNB.

Click here to see a special offer, discounted wall mount or check out other wall mounts and ground stands.
In creamOrder code ADHC9FG
Add only 199.95



Heavy duty motorised dish kits and larger dishes.

In exposed locations and with larger dishes it is best to use heavier duty 36-volt motors. 36-volt
motors are larger and more powerful. This extra power comes from the V Box (a type of power supply) and a 4-wire
control cable. It all works automatically with the receivers own remote control.
Our recommendations.
1. In very high wind load situations use a 36-volt motor kit.
2. In all other situations the excellent Technomate Diseqc motor shown in the kits above is fine up
to 90cm steel dishes and up to 1.0m aluminium dishes but for larger dishes, heavier 36-volt motors
must be used. Remember, with big dishes, big lumps of metal (heavy motors) are needed to withstand winds,
not software and promises!

These are 36-volt motorised dish kits.



Add a 1.2m Raven (Andrews) dish.
with heavy duty motor.


Raven 1.2m dish Primesat Polar Mount with actuator

Primesat Polar Mount with actuator

The Raven (Formally "Andrews" and before that "Channel Master") 1.2m dish. "Probably the best 1.2m dish in the world"
The one piece reflector is thermoset-molded glass fiber reinforced polyester for strength and rigidity and surface accuracy.
An ultimate dish system for enthusiasts. Gain 42.0 dBi at 11.95Ghz. 3dB beamwidth - 1.6 degrees. Cross polarisation - 30dB.
The new Primesat CH12MK4 heavy duty polar mount and actuator is designed for the 1.2m Raven dish.
The new Mk 4 has been completely redesigned compared to earlier versions. This mount is produced by our sister company
www.primesat.eu for the Satellite Superstore. It is designed for the 1.2m Raven dish (dish not included). This mount
is very well designed. The dish does not stand a long was away from the pole. With this latest Mk 4 version, the mount is a
close and well balanced assembly. The framework is very strong and well engineered. Fine adjustment is easy with a spanner.
Primesat CH12MK4 heavy duty polar mount and actuator. The polar mount is "dipped galvanised". The "dish back plate frame"
is now also dipped galvantised. This provides a long term durable finish especially in high salt areas. All of the nuts
and bolts are made of stainless steel except the main elevation and declination adjusters which are made of brass.
The polar mount includes a frame that is designed to fit on the back of the Raven 1.2m dish using the 4 bolts
that come with the Raven dish. An genuine Jaeger Superjack 18" actuator is included. This dish / polar mount motor unit
is designed to clamp onto a 76mm (3-inch) diameter pole. An ideal ground stand is the Primesat GS761FW3 stand but see a
discounted option below. An ideal wall mount is the Primesat WMS45076 mount. 4 core motor control cable for
this motor is in the free fitting kit. This heavy duty polar mount and actuator can take high wind loads.

Titanium boxed V Box front.

The Titanium 0.1dB LNB is a high performance low noise LNB. This is the new third edition LNB that is widely praised on many
web sites. It has the gold connections and is very low noise. An ultimate performance LNB. In the May 08 issue of "What Satellite" the
2nd edition Titanium LNB won the group test. The 3rd edition is even better. Using a Diseqc receiver, a V box is also needed. See more
details at V Box This converts Diseqc commands to 36 volt positioning and is fully automatic. It also introduces more power to drive
heavier duty 36 volt motors. See Wall mount options and the discounted ground stand below. Also see the matched feedhorn options
below. The Raven (Andrews) matched feed options below work very well with this dish. They should provide the best possible signal.
See the Twin, Quad, and quatro C120 LNB feedhorn options below. This dish kit is discounted compared to buying the items separately.
Shipping information.
Please note that due to the large size (volume) of the 1.2m dish there are extra (top up) delivery charges for "out of area UK postcodes".
Most UK postcodes have no extra charges. Areas like the Scottish highlands are not covered. Therefore delivery
is included to selected mainland UK postcodes. There is a 15.00 delivery charge to offshore islands including Northern
Ireland to selected postcodes. If your postcode is not on the list, this may be because it is "outside of main city areas" and
so click on the link here to see if your post code is covered. If your postcode is on the list, delivery charges are in "included to
mainland destinations" (but remember to select the 15 option for offshore islands). Postcodes are provided by "Parcelforce".
If your postcode is not on the list, you will need a shipping quotation. If you place an order, the shipping quote will be emailed
to you. You can then either accept the quote and pay at the link provided, or decline the quote and your order will be refunded, or,
you may prefer to email us for a quote on the contact page. If your postcode is on the list please also note that next day
delivery is not available. This is a 48 hour "large item delivery service". Most UK postcodes are on the list.

Shipping options. Discounted shipping on all internet orders. (VAT info.) (Stock levels.)
UK - mainland UK delivery (selected postcodes only) is included in the price,
so choose "UK mainland delivery included" - UK shipping option No 1. Click here for selected postcodes.
For "UK offshore islands including Northern Ireland by courier" to selected postcodes choose the 15 - UK shipping option No 2.
For all other UK destinations - choose shipping option 1. A shipping quotation will be emailed to you for a top up payment.
International - within the EU - 1.1m and 1.2m dishes - choose the 69 "Oversized item to an EU destination" shipping option
International - outside of the EU - all dishes/sizes - choose the "International shipping quote by e-mail" shipping option.

Add a 1.2m Raven dish, h/duty polar mount, 18-inch actuator, Titanium LNB with V box.
Order code ADPM12V
Add 474.95

Dish option - Raven (Andrews) feedhorn
with Inverto C120 LNB


Feed and LNB 0.2dB C120 flange twin

23mm to 40mm spacers included. In stock and ready for immediate shipping. Andrews feedhorn for
all Andrews offset dishes. works best with the 1.2m, 1.8m and 2.4m Andrews dishes. Highly recommended
with these dishes. Use this feedhorn with a C120 flange LNB for better matching & higher gain than a
40mm clamp LNB of equivalent noise level. Why buy a high quality Raven dish and use a compromise
40mm mass market LNB where the feed is made for ANY dish?
Taking a 1.2m dish as an example - A 40mm LNB may only illuminate 1.1m of dish area or perhaps 1.3m
of dish area (i.e. including noise round the edges) but with a matched feedhorn, exactly 1.2m of dish
area is illuminated. This feedhorn is for offset dishes and can also be used on other makes of offset
dish. It comes with adapters for either 23mm or 40mm clamps and it comes with the ultimate 0.3 dB
Inverto LNB. The best combination money can buy. And YES !! We do have Raven feedhorns in stock.
Inverto LNBs are high output LNBs and work better than Invacom LNBs when the cable run is long.
(Under 20m the performance is the same but over 20m it is better)
This is a dish Option.
NO NOT buy from this page unless you are buying an Raven dish kit.
Include a matched Raven Feedhorn with C 120 Inverto 0.3dB LNB instead of a single 40mm LNB
Discounted option price. To buy this feed and LNB separately, go to the Feedhorn page.

Dish Option - Andrews matched feed option with single C120 LNB.
Order code SOFEOPT
Add only 69.95

Dish Option - Raven matched feed option with twin C120 LNB.
Order code TWFEOPT
Add only 85.00

Dish Option - Raven matched feed option with quad C120 LNB.
Order code QUFEOPT
Add only 99.00

Dish Option - Raven matched feed option with quatro C120 LNB.
Order code QOFEOPT
Add only 99.00

System option. Add a 76mm 1m high ground stand to this system.
(Discounted.)


76mm, 1.0m high ground stand with 6 feet. 3 of the feet are optional. close up of feet

Manufactured by the Satellite Superstore.
This option is only available if you are buying the dish kit above.
For 1.2 - 1.5m dishes use 6 feet (studs). 6 adjustable feet are included. Discounted price when ordered with dish.
To buy this ground stand on it's own (not with a system) go to the ground stand page
Order code OPTGR76
149.95



Add a Primesat 1.4m 36v motorised
dish with feedhorn & Invacom LNB.


Primesat 1.4m Dish Primesat 1.4m Dish

Primesat 1.4m Dish Primesat 1.4m motorised Dish

At last a high gain high quality prime focus dish.
In the early days of satellite most dishes were prime focus. These days most dishes are offset.
It is two ways of doing the same job but prime focus dishes point upwards and look purposeful.
From the appearance point of view they are usually the enthusiast favorite. This one is
made of aluminuim and is one piece. (As a general rule, aluminium is preferable to steel
and 1-piece tends to be more efficient that "petalised" or segments.) This attractive dish
comes complete with a very heavy duty fixed mount, a prime focus Invacom adjustable feedhorn
with yellow cap and Invacom LNB. This dish fits on a 76cm diameter pole.
The polar mount is "dipped galvanised" which is the best possible type of treatment for
withstanding corrosion in high salt areas. Everything about this dish is high quality.
All of the nuts and bolts are made of stainless steel except the main elevation adjuster which is made of brass.
This heavy duty polar mount comes complete with an 18 inch actuator and a V Box.
A suitable 1m high 76mm diameter pole ground stand is on our ground stands page
A possible wall mount (depending on stand off distance required) is on our wall mounts page
The dish is availble with a single, twin, quad, or quatro LNB. See options below.
Shipping information.
Please note that due to the large size (volume) of the 1.4m dish there are extra (top up) delivery charges for "out of area UK postcodes".
Most UK postcodes have no extra charges. Areas like the Scottish highlands are not covered. Therefore delivery
is included to selected mainland UK postcodes. There is a 15.00 delivery charge to offshore islands including Northern
Ireland to selected postcodes. If your postcode is not on the list, this may be because it is "outside of main city areas" and
so click on the link here to see if your post code is covered. If your postcode is on the list, delivery charges are in "included to
mainland destinations" (but remember to select the 15 option for offshore islands). Postcodes are provided by "Parcelforce".
If your postcode is not on the list, you will need a shipping quotation. If you place an order, the shipping quote will be emailed
to you. You can then either accept the quote and pay at the link provided, or decline the quote and your order will be refunded, or,
you may prefer to email us for a quote on the contact page. If your postcode is on the list please also note that next day
delivery is not available. This is a 48 hour "large item delivery service". Most UK postcodes are on the list.

Shipping options. Discounted shipping on all internet orders. (VAT info.) (Stock levels.)
UK - mainland UK delivery (selected postcodes only) is included in the price,
so choose "UK mainland delivery included" - UK shipping option No 1. Click here for selected postcodes.
For "UK offshore islands including Northern Ireland by courier" to selected postcodes choose the 15 - UK shipping option No 2.
For all other UK destinations - choose shipping option 1. A shipping quotation will be emailed to you for a top up payment.
International - all destinations - choose the "International shipping quote by e-mail" shipping option.

Add a Primesat 1.4m dish 36v motorised with V Box, Invacom feedorn
and Invacom single C120 LNB.

Order code ADDPRIV
Only 569.95

1.4m motorised dish feedhorn options.
Invacom feedhorn with Invacom C120 LNB options


Invacom feedhorn with twin Invacom c120 flange LNB

When ordering the 1.4m dish above which includes a matched feedhorn you may wish to change
the LNB from a single C120 LNB in your order option to a twin, a quad or a quatro LNB.
We can take out the single C120 LNB, change it and charge you the difference in price.
Buying these LNBs separately without also buying the 1.4m dish kit should only be done from the LNB page.

Dish Option - Change the single C120 LNB to a twin Invacom C120 LNB.
Order code OPTC1MT
Add only 5.00

Dish Option - Change the single C120 LNB to a quad Invacom C120 LNB.
Order code OPTC1MQ
Add only 20.00

Dish Option - Change the single C120 LNB to a quatro Invacom C120 LNB.
Order code OPTC1MM
Add only 12.00

System option. Add a 76mm 1m high ground stand to this system.
(Discounted.)


76mm, 1.0m high ground stand with 6 feet. 3 of the feet are optional. close up of feet

Manufactured by the Satellite Superstore.
This option is only available if you are buying the dish kit above.
For 1.2 - 1.5m dishes use 6 feet (studs). 6 adjustable feet are included. Discounted price when ordered with dish.
To buy this ground stand on it's own (not with a system) go to the ground stand page
Order code OPTGR76
149.95



Add a Primesat 1.8m 36v motorised
dish with feedhorn & Invacom LNB.
(Or scroll down for Raven 1.8m.)


Primesat 1.8m Dish Primesat 1.8m Dish

Primesat 1.8m Dish Primesat 1.8m motorised Dish

At last a high gain high quality prime focus 1.8m dish.
In the early days of satellite most dishes were prime focus. These days most dishes are offset.
It is two ways of doing the same job but prime focus dishes point upwards and look purposeful.
From the appearance point of view they are usually the enthusiast favorite. This one is
made of aluminium and is one piece. (As a general rule, aluminium is preferable to steel
and 1-piece tends to be more efficient that "petalised" or segments.) This attractive dish
comes complete with a very heavy duty polar mount, a prime focus Invacom adjustable feedhorn
with yellow cap and Invacom LNB. This dish fits on a 76cm diameter pole.
The polar mount is "dipped galvanised" which is the best possible type of treatment for
withstanding corrosion in high salt areas. Everything about this dish is high quality.
All of the nuts and bolts are made of stainless steel except the main elevation adjuster which is made of brass.
Technical - F/D Ratio - 0.41, Gain @ 10.95 GHz 44.8 dB, Gain @ 11.70 GHz 45.6 dB, Gain @ 12.70 GHz 46.4 dB
This heavy duty polar mount comes complete with an 18 inch actuator and V Box.
A suitable stand for the 1.8m dish is a 1.25m high 76mm diameter pole ground stand is on our ground stands page
These dishes are available with a single, twin, quad, or quatro LNB. See options below.

Shipping options. Discounted shipping on all web orders.
UK - When you add a this dish kit to your receiver choice, mainland UK delivery is still included in the price,
so choose "Mainland UK delivery included" - UK shipping option No 1.
Or for "UK offshore islands (and Eire) by courier" - oversized delivery - quote by e-mail (or ring us).
All internationals - Within the EU or outside of the EU - choose the "International quote by e-mail" shipping option.

Add a Primesat 1.8m dish 36v motorised with V Box, Invacom feedorn
and Invacom single C120 LNB.

Order code OPTP18V
Only 899.95

1.8m motorised dish feedhorn options.
Invacom feedhorn with Invacom C120 LNB options


Invacom feedhorn with twin Invacom c120 flange LNB

When ordering the 1.8m dish above which includes a matched feedhorn you may wish to change
the LNB from a single C120 LNB in your order option to a twin, a quad or a quatro LNB.
We can take out the single C120 LNB, change it and charge you the difference in price.
Buying these LNBs separately without also buying the 1.8m dish kit should only be done from the LNB page.

Dish Option - Change the single C120 LNB for a twin Invacom C120 LNB.
Order code OPTC1MT
Add only 5.00

Dish Option - Change the single C120 LNB for a quad Invacom C120 LNB.
Order code OPTC1MQ
Add only 20.00

Dish Option - Change the single C120 LNB for a quatro Invacom C120 LNB.
Order code OPTC1MM
Add only 12.00

Dish option - Primesat C Band and Ku band option.
Change the Invacom feedhorn and c120 LNB for a combined C Band and Ku band feedhorn and KNB kit.
Note. The feed support boss on this dish is adjustable from 23mm through 40mm to 60mm and so fitting
60mm C band LNBs or combined C and KU band LNBs is not a problem.
The Ku band LNB is a universal LNB. More details on the C Band Page.

Primesat 1.4m dish C Band and Ku band option Primesat 1.4m dish C Band and Ku band option

Primesat 1.4m dish C Band and Ku band option Primesat 1.4m dish C Band and Ku band option

Order code OPTCKUP
Add only 140.00

Option - Ground Stand for the
1.8m motorised Primesat dish


1.8m ground stand for motorised 1.8m dish

1.8m ground stand for motorised 1.8m dish 1.8m ground stand for motorised 1.8m dish

Manufactured by the Satellite Superstore.
This is our own stand. It is 1.25m high and uses a 76mm (3.0") pole.
Heavy 6mm thick angle is used along the base and the angle dimensions are 60mm by 60mm.
There are 12 holes for fixing down to concrete or paving. 4 in each angle. See bottom left picture.
It is etch-primed and pained black. The final coat of paint is baked in an oven for a hard finish.
The stand is bolted together to make it easy to ship. Multiple bolts are used for maximum rigidity.
The stand is heavy but it needs to be. This stand is designed for our motorised version of the 1.8m
Primesat dish. This stand is at a discounted price when you buy it with the 1.8m motorised dish kit.

Dish option. Ground Stand for the 1.8m Primesat dish. 76mm (3.0-inch) diameter pole
Order code OPT18GM
299.95

Option. 3 adjustable feet for motorised use.

Feet

This is a worthwhile option (discounted price) when ordering a 76mm (3-inch) ground stand. Feet are not included as
standard with the stand above. Using the 1.8m stand above, for motorised use, to make the pole plumb, we would
recommend at least 6 feet and preferable 9 although up to 12 can be used. It will therefore be necessary to add
this option more than once. Manufactured by the Satellite Superstore. An exclusive high quality product.
Order code EXTRAF3
Add only 30.00 for 3 feet

Add a heavy duty Raven 1.8m
motorised dish kit to my receiver.


1.8m dish Polarmount 1.8m dish

Polarmount Polarmount

Raven feedhorn V Box front.

Heavy duty Raven 1.8m motorised dish kit including a polar mount which is designed and built by the
Satellite Superstore, heavy duty actuator and Raven matched feedhorn with C120 0.2dB Inverto LNB.
This is a Raven (formerly Andrews and before that Channel Master) 1.8m dish.
Very high gain one piece proven design. The motor unit is a Primesat CH18MK2 polar mount and Jaeger
Superjack actuator. The polar mount is dipped galvanised with a steel back plate to fit the Raven 1.8m dish.
All of the bolts and nuts are stainless steel and the elevation adjusters are made of brass.
A 24-inch heavy duty Jaeger Superjack QARL3624 actuator is included.
The complete motor kit is also available separately on our motors page

Raven Feedhorn 0.2dB C120 flange single

A matched Raven feedhorn is highly recommended for this Raven 1.8m dish. Using this feedhorn with a
C120 flange LNB provides better matching and more good signal (a higher signal to noise ratio) than
a standard 40mm clamp LNB. It is best not to invest in a high quality Raven dish and use a compromise
40mm mass market LNB where the integrated feedhorn is designed for ANY dish but is not matched?
Taking this 1.8m dish as an example, a 40mm LNB may only illuminate 1.7m of dish area or perhaps
1.9m of dish area (i.e. including noise from round the edges) but with a matched feedhorn, exactly
1.8m of dish area is illuminated. A high output 0.2dB C120 Inverto LNB included
(good for longer cable runs). Twin, quad and quatro C120 LNBs are optional. The one piece reflector
is thermoset-molded glass fiber reinforced polyester for strength and rigidity and surface
accuracy. An ultimate dish system for enthusiasts.
For use with a Diseqc receiver, a V Box is also included. This converts Diseqc commands to 36-volt
positioning and is fully automatic. it also introduces more power to drive the heavier duty 36 volt motor.
We include a V box option below at a discounted price. The polar mount collar fits a 3 inch (76mm) pole
or ground stand. Also see the discounted heavy duty ground stand option below.
You can change the single c120 LNB to a twin, a quad, or a quatro C120 LNB with one of the options below.
Free fitting kit with detailed instructions included with all full motorised systems included.
It is worthwhile checking out our support page page (especially if you plan to do the fitting yourself)

Shipping options. Discounted shipping on all web orders.
UK - When you add a this dish kit to your receiver choice, mainland UK delivery is still included in the price,
so choose "Mainland UK delivery included" - UK shipping option No 1.
Or for "UK offshore islands (and Eire) by courier" - oversized delivery - quote by e-mail (or ring us).
All internationals - Within the EU or outside of the EU - choose the "International quote by e-mail" shipping option.
Note that to most international EU destinations (including Eire,) delivery is about 225.00

Add a Raven (Andrews) 1.8m dish, polar mount, 18-inch H/D actuator,
feed and C120 LNB & V Box

Order code AD18M36
Add only 1279.95

1.8m motorised dish feedhorn options.
Raven feedhorn with Inverto C120 LNB options


Feed and LNB 0.2dB C120 flange twin

When ordering the 1.8m dish above which includes a matched feedhorn you may wish to change
the LNB from a single C120 LNB in your order option to a twin, a quad or a quatro LNB.
We can take out the single C120 LNB, change it and charge you the difference in price.
Buying these LNBs separately without also buying the 1.8m dish kit should only be done from the LNB page.

Feedhorn Option - Change the single C120 LNB for a twin Inverto C120 LNB.
Order code OPTC12T
Add only 12.00

Feedhorn Option - Change the single C120 LNB for a quad Inverto C120 LNB.
Order code OPTC12Q
Add only 27.00

Feedhorn Option - Change the single C120 LNB for a quatro Inverto C120 LNB.
Order code OPTC12M
Add only 27.00

Option - Ground Stand for the
1.8m motorised Raven dish


1.8m ground stand for motorised 1.8m dish

1.8m ground stand for motorised 1.8m dish 1.8m ground stand for motorised 1.8m dish

Manufactured by the Satellite Superstore.
This is our own stand. It is 1.25m high and uses a 76mm (3.0") pole.
Heavy 6mm thick angle is used along the base and the angle dimensions are 60mm by 60mm.
There are 12 holes for fixing down to concrete or paving. 4 in each angle. See bottom left picture.
It is etch-primed and pained black. The final coat of paint is baked in an oven for a hard finish.
The stand is bolted together to make it easy to ship. Multiple bolts are used for maximum rigidity.
The stand is heavy but it needs to be. This stand is designed for our motorised version of the 1.8m
Raven dish. This stand is at a discounted price when you buy it with the 1.8m motorised dish kit.

Dish option. Ground stand for the 1.8m Raven dish. 76mm (3.0-inch) diameter pole
Order code OPT18GM
Add only 299.95

Option. 3 adjustable feet for motorised use.

Feet

This is a worthwhile option (discounted price) when ordering a 76mm (3-inch) ground stand. Feet are not included as
standard with the stand above. Using the 1.8m stand above, for motorised use, to make the pole plumb, we would
recommend at least 6 feet and preferable 9 although up to 12 can be used. It will therefore be necessary to add
this option more than once. Manufactured by the Satellite Superstore. An exclusive high quality product.
Order code EXTRAF3
Add only 30.00 for 3 feet



Discounted wall mount options.

50mm diameter pole south facing wall mount (T Mount).

T Mount

480mm stand off.
This mount is ideal for use with fixed or motorised dishes of 90cm, 1.0m or 1.1m and for use with Diseqc motors.
This mount is not manufactured by Satellite Superstore (the heavy duty mounts are) but it is one of the best
mounts we have seen. Not as heavy duty as our own but in all but the most exposed locations it will be fine.
It is protected by a good galvanising process. It only uses 6 bolt holes and it is a strong low cost solution
for most situations. 50mm (2") diameter mast and 480mm stand-off. Suitable for dishes up to 1.1m. 6 bolt fixing.
This is ideal for use with the Technomate Diseqc motor in the motorised kits above. If you are NOT adding this
item to a dish system (Or you need a heavy duty mount or ground stand) then order it separately from the
wall mounts and ground stands page. Note. THIS IS A SYSTEM OR DISH KIT OPTION ONLY

Dish kit or system option. 50mm Diameter south facing wall mount (T Mount).
System or dish kit option only. To order separately, order from the wall mounts and ground stands page.
Order code OPTTMOU
Add only 19.95 (Discounted)

System option Only. Elbow 1D. Ideal for dishes up to 85cm.

Wall Mount 1D Wall Mount 1D

4 bolt fixing. 50mm pole diameter. 43cm stand off.
System or dish kit option only. To order separately, order from the wall mounts and ground stands page.
Order code ADD1DOP
Add only 12.95



50mm Diameter Pole South facing wall mount (Large Elbow).

Large Elbow Large Elbow

480mm stand off.
(If used with a 90cm - 1.1m dish this larger stand off allows the dish to be at right angles to the wall.)
This mount is not manufactured by Satellite Superstore (the heavy duty mounts are) but it is one of the best mounts we have seen.
Not as heavy duty as our own but in all but the most exposed locations it is fine. The square plate is larger than plates fitted
to most elbow mounts. It is constructed with electroplated steel It only uses 6 bolt holes and it is a strong low cost solution
for most situations. 50mm (2") dia. mast. 480mm stand-off. Suitable for dishes up to 1.1m. 6 bolt fixing. Coach bolts and plugs
for fixing on the wall are available from the satellite cable page (6 required) This mount is also ideal for use
with the Technomate diseqc motor in the motorised dish kits.
50mm Diameter south facing wall mount (Large 6 bolt fixing Elbow).

Dish kit or system option. Large Elbow 1DL. 6 bolt fixing. 48cm stand off.
Order code ADD1DLA
ONLY 19.95



Channel Data Programming options

Option. Astra 2 programming option.

Programming option. Astra 2 at 28E Digital receivers are normally empty of all channels.
You scan them in when you connect to the satellite. We can take the receiver out of the box,
connect it to a dish and tune in the satellite for only 11.95
If you are buying a complete system, this option also helps take some of the work
out of the system setting up process as to tune channels a dish first needs setting up.
The pre-programmed channels are useful to help set up the dish if you are using a budget meter.
You are not on satellite to scan the channels and you cannot find the satellite as there are no
channels scanned in to help you.
A programmed receiver breaks the circle and helps to set up and install a system.
Astra 2 plug in and use programming option
Order code PRO1SAT
Add only 11.95



Option. Hotbird programming options.

Digital receivers are normally empty of all channels. You scan them in when you connect to the satellite.
We can take the receiver out of the box, connect it to a dish and tune in two satellites for only
11.95 We then move and arrange the channels into a logical order.
Some good free channels are moved to the start of each satellite.
Channels are moved into their packages.
If required, adult channels are grouped together near the start of the Hotbird list.
If you are buying a complete system, this option also helps take some of the work out
of the system setting up process as to tune channels a dish first needs setting up,
But the channels are useful to help set up the dish! Chicken and egg situation.
You are not on satellite to scan the channels and you cannot find the satellite
as there are no channels scanned in!
A programmed receiver breaks the circle and helps to set up and install a system.

Plug in and use channel data programming option

Hotbird programming option 1.
Order code HOTPROG
ADD only 11.95

Hotbird programming option 2.
Adult channels grouped at the start of the list.
Order code HOTPROA
ADD only 11.95



Option. Astra 1 programming option.

Programming option. Astra 1 at 19E Digital receivers are normally empty of all channels.
You scan them in when you connect to the satellite. We can take the receiver out of the box,
connect it to a dish and tune in the satellite for only 11.95
If you are buying a complete system, this option also helps take some of the work
out of the system setting up process as to tune channels a dish first needs setting up.
The pre-programmed channels are useful to help set up the dish if you are using a budget meter.
You are not on satellite to scan the channels and you cannot find the satellite as there are no
channels scanned in to help you.
A programmed receiver breaks the circle and helps to set up and install a system.
Astra 1 plug in and use programming option
Order code PROAST1
Add only 11.95



Option. 2 satellite channel data programming options.

Digital receivers are normally empty of all channels. You scan them in when you connect to
the satellite. We can take the receiver out of the box, connect it to a dish and tune in two
satellites for only 11.95 We then move and arrange the channels into a logical order. Some
good free channels are moved to the start of each satellite. Channels are moved into their
packages. If you are buying a complete system, this option also helps take some of the work
out of the system setting up process as to tune channels a dish first needs setting up.
The pre-programmed channels are useful to help set up the dish if you are using a budget meter.
You are not on satellite to scan the channels and you cannot find the satellite as there are no
channels scanned in to help you.
A programmed receiver breaks the circle and helps to set up and install a system.
2 SAT plug in and use programming options -

Load channel data for Astra 1 at 19E and Hotbird at 13E
Order code PRO2SAT
Add only 11.95

Load channel data for 19E and 16E
Order code 1916CHD
Add only 11.95

Load channel data for 13E and 16E
Order code 1316CHD
Add only 11.95

Load channel data for 13E and 9E
Order code 1309CHD
Add only 11.95

Load channel data for Astra 2 at 28E and Hotbird at 13E
Order code 2813CHD
Add only 11.95

Load channel data for Astra 2 at 28E and Astra 1 at 19E
Order code 2819CHD
Add only 11.95

Load channel data for Astra 2 at 28E and 16E
Order code 2816CHD
Add only 11.95



Option. Astra 2, Astra 1 & Hotbird programming option.

Programming option. 28E, 19E and 13E. Digital receivers are normally empty of all channels.
Channels are scanned in when you connect the receiver to the satellite dish. We can take the
receiver out of the box, connect it to a dish and tune in three satellites for only 14.95. We
then move and arrange the channels into a logical order. Some good free channels are moved to
the start of each satellite. Channels are moved into their packages. Adult channels are grouped
together near the start of the Hotbird. If you are buying a complete system, this option also
helps take some of the work out of the system setting up process as to tune channels a dish
first needs setting up. The pre-programmed channels are useful to help set up the dish if you
are using a budget meter. You are not on satellite to scan the channels and you cannot find the
satellite as there are no channels scanned in to help you.
A programmed receiver breaks the circle and helps to set up and install a system.
3 SAT plug in and use programming option
Order code PR3SATE
Add only 14.95


Option. 28E, 19E, 16E & 13E programming option.

Programming option. 28E, 19E, 16E and Hotbird. Digital receivers are normally empty of all channels.
You scan them in when you connect to the satellite. We can take the receiver out of the box,
connect it to a dish and tune in 4 satellites for only 16.95 We then move and arrange the
channels into a logical order. Some good free channels are moved to the start of each satellite.
Channels are moved into their packages. Adult channels are grouped together near the start of
the Hotbird. If you are buying a complete system, this option also helps take some of the work
out of the system setting up process as to tune channels a dish first needs setting up.
The pre-programmed channels are useful to help set up the dish if you are using a budget meter.
You are not on satellite to scan the channels and you cannot find the satellite as there are no
channels scanned in to help you.
A programmed receiver breaks the circle and helps to set up and install a system.
2 SAT plug in and use programming option
Order code PR4SAT1
Add only 16.95


Option. 28E, 19E, 13E, 9E programming option.

Programming option. 28E, 19E, 9E and Hotbird. Digital receivers are normally empty of all channels.
You scan them in when you connect to the satellite. We can take the receiver out of the box,
connect it to a dish and tune in 4 satellites for only 16.95 We then move and arrange the
channels into a logical order. Some good free channels are moved to the start of each satellite.
Channels are moved into their packages. Adult channels are grouped together near the start of
the Hotbird. If you are buying a complete system, this option also helps take some of the work
out of the system setting up process as to tune channels a dish first needs setting up.
The pre-programmed channels are useful to help set up the dish if you are using a budget meter.
You are not on satellite to scan the channels and you cannot find the satellite as there are no
channels scanned in to help you.
A programmed receiver breaks the circle and helps to set up and install a system.
2 SAT plug in and use programming option
Order code PR4SAT2
Add only 16.95


Buying a fully loaded (programmed)
satellite receiver for motorised use.


This service is available for any motorised dish. If you are buying a system, or just a receiver
and you already have a motorised dish, we can take the receiver out of its box and fully program
it on one of our demonstration dishes. This would mean that the new programmed receiver can be
connected up by the customer and all the satellites channels will work straight away.
(Providing it is connected to a dish that is properly fitted, set up, and tracking the arc)
It would take a customer about many hours to program a receiver (since there would be
unfamiliarity with the installation menu system). After programming, the channels are then organised
in a logical order. (This is what takes the most time.) We make sure the first channel on every
satellite is a clear free to air unscrambled channel. Channels are organised into a logical order.
e.g. Adult channels all together etc. Movie packages .. etc. Moving all of the channels into a
logical order can take days. This programming is ONLY 19.95 This service is entirely optional
but for mail order customers it can take a great deal of the worry and uncertainty out of a
purchase. The programmed receiver is supplied without dish positions to be used with any dish.
Only the positions and the limits need to be added. This is a 10 minute job. This option is
ideal if you are buying a full motorised system and you intend to fit it yourself.
This option helps a great deal. It also makes it easier to install a motorised dish as channels
already loaded can help identify the satellite if a budget satellite meter is being used. Detailed
installation notes written by us are included and we can talk you through the installation
over the phone if required. See our support package on our support page.
Our notes guide you through how to connect a programmed receiver, and setting the positions.
In addition, useful easy to follow notes on blind searching written by us are included for
future reference. For international orders, this option has one other worthwhile purpose.
The receiver is fully tested before shipping while it is being programmed.
Motorised receiver full programming option
Order code MOTPROG
Add only 19.95


LNB Upgrades.

These options are for standard dishes (including clear dishes) not Sky mini dishes.

Change the single LNB to a different make

Titanium 0.1dB LNB quad boxed Technomate 0.1dB LNB quad boxed

(Please note that we can't put a zero into the shopping cart so the option is charged at 1p)
This is a system option where we take out one LNB and substitute in a different one.
If you want to buy this LNB but you are not buying a system as well, DO NOT add to cart.
The LNB must be bought from the LNB page at the correct price. These are system options.

Change my 0.1dB LNB from the one quoted in my system to a Titanium 0.1dB single LNB
Order code OPTTIRM
00.01
Change my 0.1dB LNB from the one quoted in my system to a Technomate 0.1dB LNB
Order code OPTCHTE
00.01
Change my 0.1dB LNB from the one quoted in my system to an Icecrypt 0.1dB LNB
Order code OPTCHIC
00.01


Upgrade a single LNB to 0.1dB Titanium award winning twin LNB

Titanium boxed

Award winning Titanium twin LNB - an ultimate performance LNB.
(e.g. Sky Plus / HD or freesat HDR twin tuner option.)
For use with multiple receivers on one fixed dish and also for a Triax multibracket option.
Using a twin LNB, a signal can be provided to 2 single tuner receivers or 1 twin tuner receivers.
This is the new Titanium third edition LNB that is widely praised on many web sites. It has the gold connections
and is very low noise. An ultimate performance LNB. Ideal for situations where the maximum dish size cannot be
increased. This LNB has a high output and so it is also very good for long cable runs, e.g. longer than 35m
In the comparative LNB test in April 08 What Satellite magazine, the second edition (0.2dB) LNB performed best
of all. This new Titanium 0.1dB third edition LNB improves on the previous model with an outstanding performance.

System option - Include an award winning Titanium 0.1dB LNB twin output LNB
instead of the LNB with my system.

Order code OPT0TTW
Add only 10.00


Upgrade a single LNB to a QUAD 0.1dB LNB

Titanium boxed

Award winning Titanium quad LNB - an ultimate performance LNB.
(e.g. Sky Plus / HD or freesat HDR twin tuner option.)
For use with multiple receivers on one fixed dish and also for a Triax multibracket option.
Using a quad LNB, a signal can be provided to 4 single tuner receivers or 2 twin tuner receivers.
This is the new Titanium third edition LNB that is widely praised on many web sites. It has the gold connections
and is very low noise. An ultimate performance LNB. Ideal for situations where the maximum dish size cannot be
increased. This LNB has a high output and so it is also very good for long cable runs, e.g. longer than 35m
In the comparative LNB test in April 08 What Satellite magazine, the second edition (0.2dB) LNB performed best
of all. This new Titanium 0.1dB third edition LNB improves on the previous model with an outstanding performance.

System option - Include an award winning Titanium 0.1dB quad LNB
instead of the LNB with my system.

Order code OPTT014
Add only 24.00


Upgrade a single LNB to a QUATRO LNB

Titanium 0.1dB LNB quatro boxed

This is the new Titanium third edition LNB that is widely praised on many web sites. It has the gold connections
and is very low noise. An ultimate performance LNB. Ideal for situations where the maximum dish size cannot be
increased. This LNB has a high output and so it is also very good for long cable runs, e.g. longer than 35m
In the comparative LNB test in April 08 What Satellite magazine, the second edition (0.2dB) LNB performed best
of all. This new Titanium 0.1dB third edition LNB improves on the previous model with an outstanding performance.
Dish kit option. - Include a Titanium 0.1dB Quatro LNB instead of the single LNB with my system.
Quatro LNBs are used to provide satellite signals to multiswitches
System option - Include a Titanium quatro LNB instead of the single LNB with my dish or system.

System option - Include an award winning Titanium 0.1dB quatro LNB
instead of the single LNB with my system.

Order code OPTT01M
Add only 18.00



Upgrade a single LNB to an
Octo Titanium LNB


Titanium  0.1dB 8 output LNB

Award winning Smart Titanium octo 0.1dB LNB.
This is the new Titanium third edition LNB that is widely praised on many web sites. It has the gold connections
and is very low noise. An ultimate performance LNB. Ideal for situations where the maximum dish size cannot be
increased. This LNB has a high output and so it is also very good for long cable runs, e.g. longer than 35m
In the comparative LNB test in April 08 What Satellite magazine, the second edition (0.2dB) LNB performed best
of all. This new Titanium 0.1dB third edition LNB improves on the previous model with an outstanding performance.
Using an octo LNB, a signal can be provided to 8 single tuner receivers or 4 twin tuner receivers.
(e.g. Sky HD or freesat HDR or other twin tuner receivers option.)
Also for use with multiple receivers on one fixed dish, also for a multibracket option

Supply up to 8 receivers with a signal from one satellite, or 4 twin tuner receivers like Sky + HD or freesat HDR.

System option - Include a Titanium 0.1dB Octo LNB
instead of the single LNB with my system.

Order code OPTT8OC
Add only 40.00



Upgrade a single Inverto narrow LNB to a twin narrow LNB
You may wish to upgrade every single LNB in the kit above. If so add this option more than once.
Additional Sky or Freesat option -
If you want to run a Sky Digibox or a Freesat box as well a standard multi-satellite receiver
using the one dish fitted with a multiconnect system, you need to add this twin option.
The twin LNB will be fitted in the Astra 2 (28E) position only. The standard multi-satellite receiver
will pick up the signal from the all 3 or 4 LNBs / satellites which would include one output from the
twin LNB. These will all go through the switch down one cable to that receiver. A second output of
the twin LNB can go down a another cable to the Sky or Freesat box.
The multisat system and Sky or freesat receivers then all work from one fixed dish.
This option is only available if you are also buying a kit above. To buy this LNB separely - go to the twin LNB page.
Order code OPTNATW
Add only 10.00

Upgrade a single Inverto narrow LNB to a quad narrow LNB
You may wish to upgrade every single LNB in the kit above. If so add this option more than once.
Please note that if you are adding quad LNBs you also need the expansion kit below.
Additional Sky or Freesat option -
If you want to run a Sky Digibox or a Freesat box as well a standard multi-satellite receiver
using the one dish fitted with a multiconnect system, you need to add this quad option.
The quad LNB will be fitted in the Astra 2 (28E) position only.
The standard multi-satellite receiver will pick up the signal from the all 3 or 4 LNBs / satellites
which would include one output from the quad LNB. These will all go through the switch down one
cable to that receiver. A second output of the quad LNB can go down a another cable to the Sky
or Freesat box. (or 2 outputs to a twin tuner Sky or Freesat box).
The multisat system and Sky or Freesat receivers then all work from one fixed dish.
This option is only available if you are also buying a kit above. To buy this LNB separely - go to the quad LNB page.
Order code OPTNAQU
Add only 28.00

Upgrade a single Inverto narrow LNB to a quatro narrow LNB
You may wish to upgrade every single LNB in the kit above. If so add this option more than once.
BUT - please note that complete quatro LNB multiconnect kits with dishes are available below.
This option is only available if you are also buying a kit above. To buy this LNB separely - go to the quatro LNB page.
Order code OPTNAQT
Add only 28.00

Long pole "above the gutter" wall
mounts for fixed dishes up to 1.0m


Long pole wall mount 1 Long pole wall mount 2 85cm Clear dish

5 bolt fixing. Various stand off distances and 2 pole lengths - 1m and 2m. All pole diameters are 50mm
The poles are galvanised. the stand off distance is from the wall is to the inside of the pole.
If the dish is larger than 1.0m use a heavy duty "above the gutter" wall mount from our
wall mounts & ground stands page or a ground stand if applicable.
The following mounts are available from the Wall mounts & ground stands page,

Long pole wall mount 1. Stand off - 300mm. 2m galvanised pole.
Order code LPMOUN1

Long pole wall mount 2. Stand off - 500mm. 2m galvanised pole.
Order code LPMOUN2

Long pole wall mount 3. Stand off - 300mm. 1m galvanised pole.
Order code LPMOUN3

Long pole wall mount 4. Stand off - 500mm. 1m galvanised pole.
Order code LPMOUN4



(All prices on this page include VAT.)

Links to site pages,

Advice Support Shipping info Multiswitches Satellite Museum Reviews Links Satellite Finder Meters Contact Us
SKY receivers & systems SKY accessories Other accessories Installation equipment Wall mounts & ground stands
Dishes Transparent dishes Full systems Motorised systems. 2, 3 or 4 satellites on 1 fixed dish BBC systems Linux receivers
freesat receivers Blind search receivers Receivers with hard drives Twin tuner PVR receivers High Definition Receivers
Manhattan Cube Revo Icecrypt Dreambox Technomate Humax Analogue Receiver More receivers
Caravan products Diseqc switches LNBs Feedhorns Motors V Box Positioners Adult cards CAMs All products index


Links to menu pages,

Catalogue Contents Page. A summary of all pages. More products.
ADVICE Pages. Frequently Asked Questions. (FAQs) Read and learn!

Menu pages.

Sky menu page.
Satellite systems menu page.
Satellite receivers menu page.
Satellite dishes
Clear transparent dishes
High definition receivers menu page.
LNB (and feedhorns) menu page.
Motorised systems menu page.
Enthusiast blind search receiver menu page.
Manhattan menu page.
Humax menu page.
Technomate menu page.
Topfield receivers menu page.
Dreambox receivers menu page.
Pace receivers menu page.
Triax dishes, LNBs & brackets menu page.
Mutiswitches menu page.
3/4 satellite fixed dish menu page.
Small satellite items menu page.
Audio video products
Satellite Meters menu page.
Caravan Satellite menu page.
Accessories menu page.
Installation equipment menu page.
Review centre menu page.
Index of all products menu page.

Links to pages with more detail,

Catalogue Contents Page. A summary of all pages. More products.
ADVICE Pages. Frequently Asked Questions. (FAQs) Read and learn!

Freesat and Sky.

Freesat receivers / systems / mini dishes / accessories. The Humax HDR. The Segam.
The Sky Digital receivers / systems / mini dishes / accessories. The Pace DS440N. The Sky Plus.
Sky Digital accessories handsets, TV eyes, distribution around the house, wireless, offers, leads, etc.
Sky Digital dishes and LNBs single, twin & 4 out LNBs, Zones 1 & 2 mini dishes & larger dishes.
Freesat and Sky in Spain. 1.0m, 1.2m, 1.8m and 2.4m dishes for Spain. Satellite meters for Spain.

Advice pages with FAQs (Frequently asked questions)
We have sold satellite goods since 1991 and there is not a question we have not been asked 100s of times
so .... PLEASE read our very comprehensive advice pages and FAQs. ... Also, why not check us out before buying?
About us, Contact us. & Shipping times, charges terms of business fast delivery Review Centre

Satellite Systems, Complete systems menu page Sky systems. Motorised systems. (motors)
Hotbird 13E systems (2 satellite) Astra 1 & Hotbird systems (3/4 satellite) Astra 2, Astra 1 & Hotbird etc. systems.
God channel 28E systems Free to air 28E BBC systems Sky systems. Sky + systems. Adult channel systems
Manhattan motorised systems. Icecrypt motorised systems. Dreambox motorised. Technomate satellite systems.

Satellite receivers, Receiver menu page. Sky Digital receivers Freesat receivers Blind search
Sky menu page Sky Digiboxes Sky Digibox. Sky Plus. Sky HD. Caravan receivers
Technomate TM5200 TM5400 TM5300 TM5500. TM9100 TM6900 HD Super. TM6800 HD Super TM7100.
Manhattan Plaza XT-M, XT-CM SAB500Gb Twin Tuner Brand new Analogue Receivers
Linux receivers Cube Revo Dreambox 600 800 8000 TM9100 PVR hard drive receivers or PVR ready
High Definition receivers menu page. Humax iChord Twin Tuner PVR Cube Revo Linux twin tuner PVR.
Technomate TM-6900 Super. Technomate TM-6800 Super Technomate TM-7100 Icecrypt S4000.
External USB hard drive for usb receivers Vantage HD 8000 Dreambox 800

Freesat HD Receivers

Satellite dishes, Dish menu page LNB menu page Sky dishes Wall mounts & stands Feedhorns

FIXED, Sky Triax 54, 60,80,90cm,1.1m Orbital 1.0m Andrews 1.0m 1.2m,1.8m, 2.4m Clear Transparent 60,85cm

MOTORISED, Triax 80, 90cm, Transparent 85cm Orbital 1.0m Andrews 1.0m, 1.2m, 1.8m

OTHER, Sky mini dishes All-weather Sky dishes Sky dishes for Spain 3/4 satellite dishes Dish motors Caravan dishes

Terrestrial PVR receivers, Topfield TF5810 Humax

Satellite & Terrestrial, Technomate TM-6900 HD Combo. Technomate TM-7100.

Brand New Analogue Satellite Receivers
(e.g. Could be used on Astra 1 to see Eurosport in English!)


Sky menu page Adult Cards CAMs freesat receivers LNBs Monobocks LNBs Feedhorns
Sky accessories Other Accessories Installation equipment Satellite Meters Caravan AV products.



See our new web site at- www.primesat.eu

This site includes many products that are exclusive to the Satellite Superstore.
The site contains -
Products that we manufacture (e.g. We have manufactured heavy duty wall mounts and ground stands since 1991).
Selected products which have our own Primesat brand name and have been prepared to our specifications.
Selected products where we have been appointed the authorised UK or European distributor by the manufacturer.
www.primesat.eu is an information site. Here you will find full specifications
and many detailed pictures. To buy any of these products, simply order them on this web site.



Contacting us.
Tel. (UK) 01207 544664 and 01207 544224
International Tel. + 44 1207 544664.
If you are ringing us about a product you have already purchased, you should ring the support line on your invoice.

Before sending questions via e-mail please check-out our Frequently asked questions as this could save time.
If you have any questions & comments regarding this site's content, please ....
contact us by e-mail.

(We only accept questions in English (no text language). We do not open attachments.)

Questions about faults or returns must include an invoice number or order number & date of purchase.

Technical questions are not a problem but questions about "channels" should be checked out first with
the satellite providers. Links to the satellite providers web sites are on our Links Page

Copyright © 2012 Vision International. All rights reserved.
