ADVICE ON DISH SIZES IN SPAIN.

Dish sizes need to be quoted to receive every channel. Smaller dishes can be used and since
some channels are more powerful than others, the small dish will work on a percentage of
channels but not all of them. The BBC and the ITV are the weakest channels, and so unless
the dish is big enough to receive every channel, it will not be big enough to receive
the BBC and the ITV (although many other Sky channels could be received with smaller dishes)
In addition it is important to note that there are 2 beams aimed at Spain. The north and
the south beam. The BBC and the ITV are not on the south beam but many Sky channels are.
The south beam can be received anywhere in Spain on an 80cm dish. To find out which.
channels are on the south beam go to www.astra.lu where you will you can research
what each beam carries on the Astra satellite. The North beam carries every channel.
As far as the north beam is concerned, customer feedback over the last year has provided
the following information on dish size recommendations.
Costa Brava 1.0m. Madrid, 1.2m Southern Spain and Portugal 1.6m. North Alicante (weak spot) 2.4m dish
Just south of to Alicanti 1.8m dish.
All we can do is relate to you customer feedback. It is your responsibility to check
yourself with people in that area as we cannot guarantee the accuracy of these recommendations,

Orbital 1.0m (and 80cm) high gain
lightweight aluminium dishes.



Very high gain well designed dishes. They produces more gain than any other dish we know of for their size.
These are precision made aluminum dishes at an excellent price. Since they are made of aluminium and not
steel they are much lighter than much smaller steel dishes. A high quality product range.
It is possible to upgrade the single LNB to a twin, quad, octo or quatro LNB using the LNB upgrade options
These upgrade options ONLY apply if you are ordering a dish with a single LNB (you pay
the difference in price - or less) They do not apply if you are ordering a dish without an LNB.

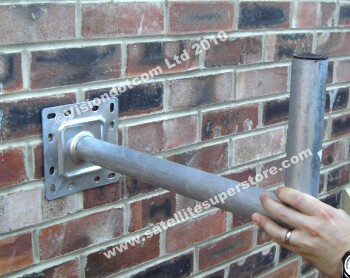

1m and 2m pole "above the gutter" wall mounts are available lower down the page if required.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price,
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7)
Or, for "UK offshore island (and Eire) by courier" dishes up to 85cm choose the £15 - UK (and Eire) shipping option No 2.
Or, for "UK offshore island by courier" dishes from 90cm to 1.05m. Choose the £35 option - UK shipping option No 8.
Please note that, although not guaranteed, many standard uk deliveries are arriving next day
if the order is received before our cut off times.
International - within the EU - dishes up to 85cm - choose the £38 "up to 5Kg by courier to EU countries" shipping option
International - within the EU - 90cm - 1.05m dishes - choose the £69 "Oversized item to an EU destination" shipping option
International - outside of the EU - choose the "International shipping quote by e-mail" shipping option.

Orbital 1.0m dish without LNB (without LNB and without wall mount).
If an above the gutter long pole wall mount is required instead of a standard mount,
choose this kit "without wall mount" and see other mount options below.
Order code ORB10MO
£89.95

Orbital 1.0m dish with Titanium LNB (without wall mount).
If an above the gutter long pole wall mount is required instead of a standard mount,
choose this kit "without wall mount" and see other mount options below.
Order code ORB10ML
£99.95

Orbital 1.0m dish with Titanium LNB and wall mount.
A standard wall mount is included.
Order code OR10DLP
£109.95

Orbital dish 80cm without LNB (without LNB and without wall mount).
If an above the gutter long pole wall mount is required instead of a standard mount,
choose this kit "without wall mount" and see other mount options below.
Order code ORB80MO
£59.95

Orbital 80cm dish with Titanium LNB (without wall mount).
If an above the gutter long pole wall mount is required instead of a standard mount,
choose this kit "without wall mount" and see other mount options below.
Order code ORB80ML
£69.95

Orbital 80cm dish with Titanium LNB and wall mount.
A standard wall mount is included.
Order code OR80DLP
£79.95

Andrews 1.2m fixed dish
with 0.1dB Titanium LNB



These are the new Titanium third edition 0.1dB LNBs that are widely praised on many web sites.
The third edition has the gold connections and is very low noise. An ultimate performance LNB.
Shown above is the Andrews Channel Master 1.2m dish. Probably the best dish in the world.
0.1dB Titanium LNB included
(Pole mount design. 75mm 3 inch pole wall mount required.)
It is possible to upgrade the single LNB to a twin, quad, octo or quatro LNB using the LNB upgrade options
This dish works even better with the Raven (Andrews) feedhorn and LNB options.
A suitable 1m high 76mm diameter pole ground stand is on our Ground stands (& Wall mounts) page.
A suitable 1m high 76mm diameter pole wall mount is on our Wall mounts (& ground stands) page.

Shipping options. Discounted shipping on all web orders.
UK - When you add a this dish kit to your receiver choice, mainland UK delivery is still included in the price,
so choose "Mainland UK delivery included" - UK shipping option No 1.
Or for "UK offshore islands (and Eire) by courier" - oversized delivery - quote by e-mail (or ring us).
All internationals - Within the EU or outside of the EU - choose the "International quote by e-mail" shipping option.
Delivery to S Ireland and most EU counties for this dish kit is about £100.00

Andrews fixed 1.2m dish kit with Titanium LNB
Order code CM12MFL
£249.95

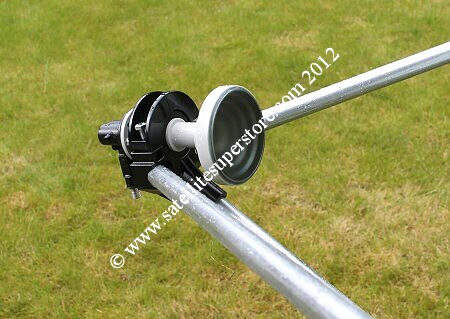

1.2m dish options. Raven feedhorn with Inverto C120 LNB



23mm to 40mm spacers included. In stock and ready for immediate shipping. Raven (Andrews) feedhorn for
all Andrews offset dishes. works best with the 1.2m, 1.8m and 2.4m Raven dishes. Highly recommended
with these dishes. Use this feedhorn with a C120 flange LNB for better matching & higher gain than a
40mm clamp LNB of equivalent noise level. Why buy a high quality Andrews dish and use a compromise
40mm mass market LNB where the feed is made for ANY dish?
Taking a 1.2m dish as an example - A 40mm LNB may only illuminate 1.1m of dish area or perhaps 1.3m
of dish area (i.e. including noise round the edges) but with a matched feedhorn, exactly 1.2m of dish
area is illuminated. This feedhorn is for offset dishes and can also be used on other makes of offset
dish. It comes with adapters for either 23mm or 40mm clamps and it comes with the ultimate 0.3 dB
Inverto LNB. The best combination money can buy. And YES !! We do have Raven feedhorns in stock.
Inverto LNBs are high output LNBs and work better than Invacom LNBs when the cable run is long.
(Under 20m the performance is the same but over 20m it is better)
This is a dish Option.
NO NOT buy from this page unless you are buying an Raven 1.2m dish kit.
Include a matched Raven Feedhorn with C 120 Inverto 0.3dB LNB instead of a single 40mm LNB
Discounted option price. To buy this feed and LNB separately, go to the Feedhorn page.

1.2m dish Option - Raven matched feed option with single C120 LNB.
Order code SOFEOPT
ADD ONLY £69.95

1.2m dish Option - Raven matched feed option with twin C120 LNB.
Order code TWFEOPT
ADD £85.00

1.2m dish Option - Raven matched feed option with quad C120 LNB.
Order code QUFEOPT
ADD £99.00

1.2m dish Option - Raven matched feed option with quatro C120 LNB.
Order code QOFEOPT
ADD £99.00

System option. Add a 76mm 1m high ground stand to this system.
(Discounted.)



Manufactured by the Satellite Superstore.
This option is only available if you are buying the dish kit above.
For up to 1m dishes use three heavy duty feet. For 1.2m dishes use 6 feet (studs).
3 adjustable feet included. See additional feet below.
To buy this ground stand on it's own (not with a system) go to the ground stand page
Order code OPTGR76
£124.95

Option. Additional 3 feet for the 3 inch stand above
Recommended when used with 1.2m dishes.



This discounted is an option (discounted price) when ordering a 3 inch ground stand.
To buy these feet on their own (not with a system) go to the ground stand page
Manufactured by the Satellite Superstore. An exclusive high quality product.
Order code 3EXTRAF
Add £25.00 for 3 extra feet.

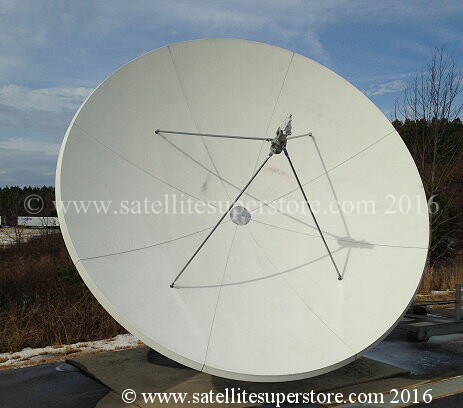

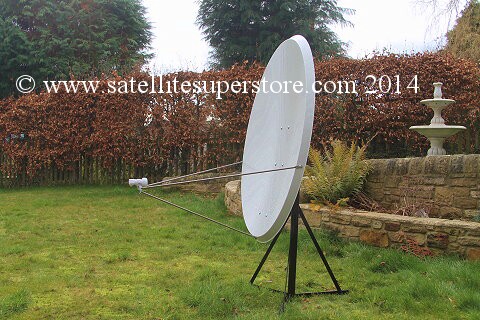

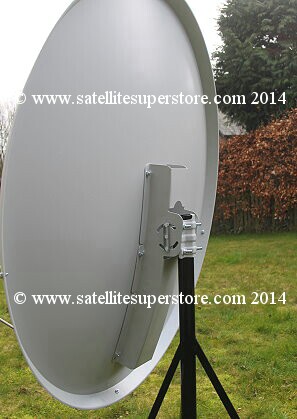

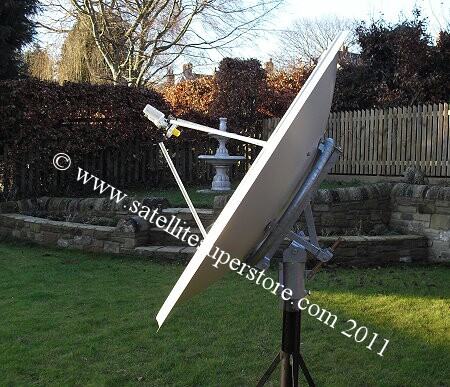

Primesat 1.4m fixed dish with
feedhorn and Invacom LNB.





At last a high gain high quality prime focus dish.
In the early days of satellite most dishes were prime focus. These days most dishes are offset.
It is two ways of doing the same job but prime focus dishes point upwards and look purposeful.
From the appearance point of view they are usually the enthusiast favorite. This one is
made of aluminuim and is one piece. (As a general rule, aluminium is preferable to steel
and 1-piece tends to be more efficient that "petalised" or segments.) This attractive dish

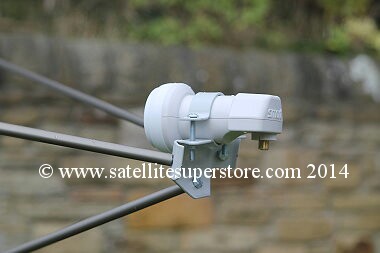

comes complete with a very heavy duty fixed mount, a prime focus Invacom adjustable feedhorn
with yellow cap and Invacom LNB. This dish fits on a 76cm diameter pole.

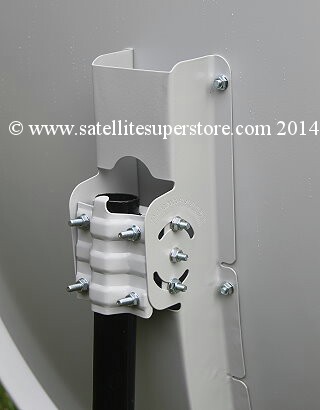

The fixed AZEL mount is "dipped galvanised" which is the best possible type of treatment for
withstanding corrosion in high salt areas. Everything about this dish is high quality.
All of the nuts and bolts are made of stainless steel except the main elevation adjuster which is made of brass.
A suitable 1m high 76mm diameter pole ground stand is on our ground stands page
A possible wall mount (depending on stand off distance required) is on our wall mounts page
The dish is availble with a single, twin, quad, or quatro LNB. See options below.

Shipping options. Discounted shipping on all web orders.
UK - When you add a this dish kit to your receiver choice, mainland UK delivery is still included in the price,
so choose "Mainland UK delivery included" - UK shipping option No 1.
Or for "UK offshore islands (and Eire) by courier" - oversized delivery - quote by e-mail (or ring us).
All internationals - Within the EU or outside of the EU - choose the "International quote by e-mail" shipping option.

Primesat 1.4m dish with Invacom feedorn and Invacom single C120 LNB.
Order code PRIMEFI
Special offer. Only £349.95 (normally £399.95)

Dish Option - Change the single C120 LNB for a twin Invacom C120 LNB.
Order code OPTC1MT
Add only £5.00

Dish Option - Change the single C120 LNB for a quad Invacom C120 LNB.
Order code OPTC1MQ
Add only £20.00

Dish Option - Change the single C120 LNB for a quatro Invacom C120 LNB.
Order code OPTC1MM
Add only £12.00

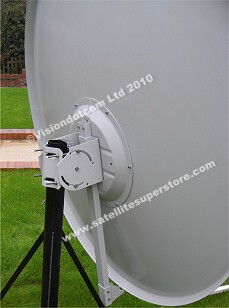

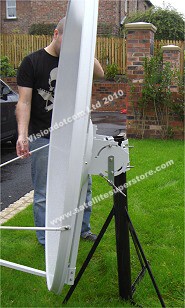

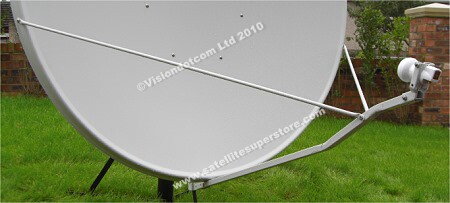

Gibertini 1.5m dish with
Titanium LNB.





This is the new Titanium third edition 0.1dB LNB that is widely praised on many web sites.
It has the gold connections and is very low noise. An ultimate performance LNB.
"Pole mount design". (i.e. fits on a vertical pole)
This is a very high gain offset dish at a reasonable price.
Ideal for many parts of southern Spain and Portugal.
A suitable 1m high 76mm diameter pole ground stand is on our Wall mounts & ground stands page
It is possible to upgrade the single LNB to a twin, quad, octo or quatro LNB using the LNB upgrade options
This dish also works very well with the Raven (Andrews) feedhorn and LNB options.

Shipping options. Discounted shipping on all web orders.
UK - When you add a this dish kit to your receiver choice, mainland UK delivery is still included in the price,
so choose "Mainland UK delivery included" - UK shipping option No 1.
Or for "UK offshore islands (and Eire) by courier" - oversized delivery - quote by e-mail (or ring us).
All internationals - Within the EU or outside of the EU - choose the "International quote by e-mail" shipping option.

Gibertini 1.5m dish with Titanium LNB.
Order code GIB15FI
Only £409.95

Gibertini 1.5m dish without LNB.
Select this option if you intend to use the feedhorn below.
Order code GIB15FW
Only £399.95

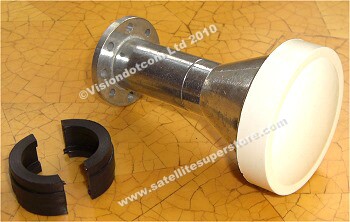

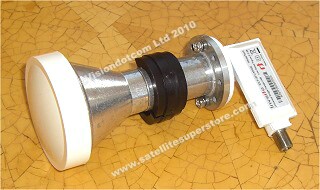

Offset feedhorn for Gibertini 1.5m

Please note we have had excellent results using the Raven (Andrews) feedhorn
(see above) on the Gibertini 1.5m dish. Use the Raven (Andrews) feedhorn.

Heavy Duty Range - Fixed Dishes.
1.0m 1.2m 1.8m and 2.4m

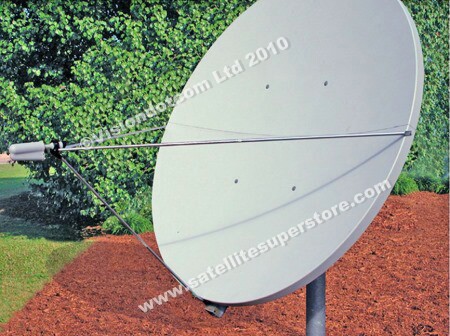

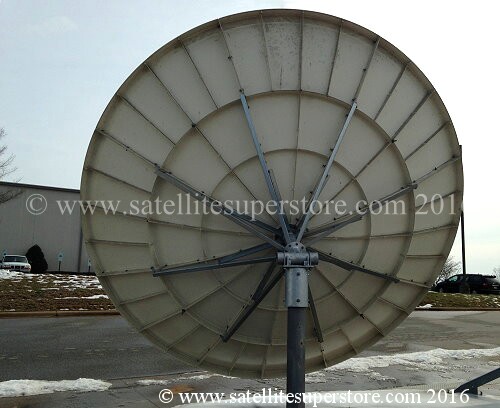

Andrews 1.8m fixed dish with
Titanium 0.1dB LNB and AZEL mount.



These are the new Titanium third edition 0.1dB LNBs that are widely praised on many web sites.
The third edition has the gold connections and is very low noise. An ultimate performance LNB.
Very high gain one piece proven design. Gain is a massive 45.5 dBi (Ku band)
A ground stand of about 1.3m height or a pole sunk into concrete is required.

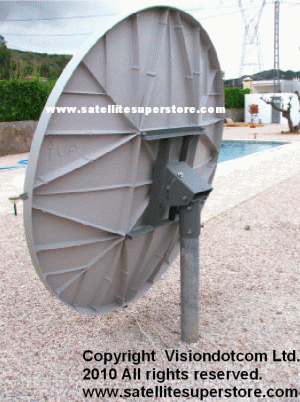

We do two types of fixed AZEL mounts that fit in the back of the dish. (See options below).
1. To fit a 4.5 inch diameter pole - this is the normal one that is included.
2. We know in Spain it is difficult, if not impossible, to find 4.5-inch Dia. poles and so
we do a fixed AZEL mount for this dish that fits a 76mm (3-inch) diameter pole. This mount
is exclusive to the Satellite Superstore and is included in the third option.
Also check out the matched feedhorn option below.
The one piece reflector is thermoset-molded glass fiber reinforced polyester for
strength and rigidity and surface accuracy.
Heavy Duty hot dipped mount. Galvanized feed support legs.
When you compare prices please note that our price INCLUDES the fixed AZEL mount on the back of
the dish face to attach the dish to the pole AND the 0.1dB LNB AND the shipping by
TNT international



We have an ex employee now living 30m south of Alicante getting
perfect results with this dish. He is an installation engineer and uses
it with a matched feedhorn and Inverto C120 flange LNB. To get every
channel on 28E in this area without having to use a 2.4m
dish is remarkable. See matched feed option below.
A ground stand is also available. See below
See the discounted groundstand option below
Also see the feedhorn and LNB options below - twin, quad, quatro LNBs.

Shipping options. Discounted shipping on all web orders.
UK - (or full system,) mainland UK delivery is included in the price,
so choose "Mainland UK delivery included" - UK shipping option No 1.
Please note that, although not guaranteed, many uk deliveries are getting there next day
if the order comes in before our cut off times.
"UK offshore island by courier" - shipping quote by e-mail
All internationals - EU (& Eire) and outside of the EU - choose the "International shipping quote by e-mail"
shipping option. (Oversized item for most couriers.)
(Approximate shipping to Spain or most EU countries - £225.00)

1.8m Andrews dish with Titanium LNB and 4.5-inch fixed AZEL mount.
Order code CM18MFL
£849.95

Ground Stand for the 1.8m Andrews dish





Dish option. Manufactured by the Satellite Superstore. This is our own stand. It is 1.25m high and uses a
115mm (4.5") pole. Heavy 6mm thick angle is used along the base and the angle dimensions are 60mm by 60mm.
There are 12 holes for fixing down to concrete or paving. 4 in each angle. See bottom right picture.
It is etch-primed and pained black. The final coat of paint is baked in an oven dried.
The stand is bolted together to make it easy to ship. A fully welded stand of this size could not
be transported with a courier and would need a (expensive) haulage company, so this stand bolts
together. Multiple bolts are used for maximim rigidity. The stand is heavy but it needs to be.
The pictures above were taken in the rain so dots on the paintwork are just rain drops.
Normal price £359.95 but buy it with a dish and there is a £30 discount - Dish option £329.95
This is a dish option only. To buy it without a dish, go to the Wall mounts & ground stands page.

Dish Option. Ground Stand for the 1.8m Andrews dish. 115mm (4.5-inch) diameter pole
Order code OPT18GS
£329.95

Dish option. Andrews feedhorn with Inverto C120 LNB





23mm to 40mm spacers included. In stock and ready for immediate shipping. Andrews feedhorn for
all Andrews offset dishes. works best with the 1.2m, 1.8m and 2.4m Andrews dishes. Highly recommended
with these dishes. Use this feedhorn with a C120 flange LNB for better matching & higher gain than a
40mm clamp LNB of equivalent noise level. Why buy a high quality Andrews dish and use a compromise
40mm mass market LNB where the feed is made for ANY dish?
Taking a 1.2m dish as an example - A 40mm LNB may only illuminate 1.1m of dish area or perhaps 1.3m
of dish area (i.e. including noise round the edges) but with a matched feedhorn, exactly 1.2m of dish
area is illuminated. This feedhorn is for offset dishes and can also be used on other makes of offset
dish. It comes with adapters for either 23mm or 40mm clamps and it comes with the ultimate 0.3 dB
Inverto LNB. The best combination money can buy. And YES !! We do have Andrews feedhorns in stock.
Inverto LNBs are high output LNBs and work better than Invacom LNBs when the cable run is long.
(Under 20m the performance is the same but over 20m it is better)
This is a dish Option.
NO NOT buy from this page unless you are buying an Andrews dish kit.
Include a matched Andrews Feedhorn with C 120 Inverto 0.3dB LNB instead of a single 40mm LNB
Discounted option price. To buy this feed and LNB separately, go to the Feedhorn page.

Dish Option - Andrews matched feed option with single C120 LNB.
Order code SOFEOPT
ADD ONLY £69.95

Dish Option - Andrews matched feed option with twin C120 LNB.
Order code TWFEOPT
ADD £85.00

Dish Option - Andrews matched feed option with quad C120 LNB.
Order code QUFEOPT
ADD £99.00

Dish Option - Andrews matched feed option with quatro C120 LNB.
Order code QOFEOPT
ADD £99.00

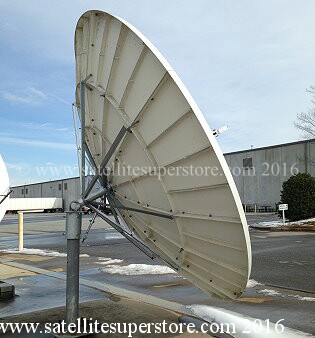

Raven 2.4m fixed dish with Raven
feedhorn & C120 Inverto 0.3dB LNB





Raven dishes - formerley Andrews and before that Channel Master.
Very high gain two piece proven design. Gain is a massive 47.6 dBi (Ku band)
168mm (6.63 inch) diameter, 1.75m high ground stand required.
Also check out the matched feedhorn option below.
The two piece reflector is thermoset-molded glass fiber reinforced polyester for
strength and rigidity and surface accuracy.
Heavy Duty galvanized mount. Galvanized feed support legs.

Shipping options. Discounted shipping on all web orders.
UK - (or full system,) mainland UK delivery is included in the price,
so choose "Mainland UK delivery included" - UK shipping option No 1.
Please note that, although not guaranteed, many uk deliveries are getting there next day
if the order comes in before our cut off times.
"UK offshore island by courier" - shipping quote by e-mail
All internationals - EU (& Eire) and outside of the EU - choose the "International shipping quote by e-mail"
shipping option. (Oversized item for most couriers.)

Raven fixed 2.4m dish kit with Raven feedhorn & C120 Inverto LNB
(Delivery to Spain or any EU country by road - about £350.00)
Order code CM24MFL
£2499.95

2.4m dish feedhorn options.
Raven feedhorn with Inverto C120 LNB options



If you are ordering the 2.4m dish, the matched feedhorn is included, you may wish to change
the LNB from a single C120 LNB in your order option to a twin, a quad or a quatro LNB.
We can take out the single C120 LNB, change it and charge you the difference in price.

Feedhorn Option - Change the single C120 LNB for a twin Inverto C120 LNB.
Order code OPTC12T
ADD ONLY £12.00

Feedhorn Option - Change the single C120 LNB for a quad Inverto C120 LNB.
Order code OPTC12Q
ADD ONLY £27.00

Feedhorn Option - Change the single C120 LNB for a quatro Inverto C120 LNB.
Order code OPTC12M
ADD ONLY £27.00

Dish option only.
Ground stand for the 2.4m Raven dish



Manufactured by the Satellite Superstore. This is our own stand. It is 1.6m high and uses a 6.5" pole.
There are 24 holes for fixing down to concrete or paving. 8 in each corner.
It is etch-primed and pained black. The final coat of paint is baked in an oven dried.
The stand is bolted together to make it easy to ship. A fully welded stand of this size could not
be transported with a courier and would need a (expensive) haulage company, so this stand bolts
together. Multiple bolts are used for maximim rigidity. The stand is heavy but it needs to be.
Normal price £699.95 but buy it with a dish and there is a £60 discount - Dish option £639.95
To buy the stand separately go to 2.4m dish stand. This is a discounted
option and is only available if you are also buying the 2.4m dish.

Dish option only. Ground Stand for the 2.4m Raven dish. 6.5-inch diameter pole
Order code OPT24GS
£639.95

There is a 3m motorsised dish on our
motorised dishes page.

Satellite Meters

LEXIUM FastAlign 5110Pro

Identifies many satellites.





Features
Small. Light - only 450g. Powerful. Unbelievable low price.
Small enough to go in your pocket. Full of professional features. Large display. PC editing. Unusually this professional
meter also has an LNB loop through and so in use you can, if you wish, connect through to the satellite receiver and TV.
Most of the time it will be used independently as it has built in rechargeable batteries but it is an option. There is a
yellow rubber protective sleeve around the meter. World capable internal database of satellites. The FastAlign 5100Pro is
a cost-effective professional meter by LEXIUM Professional Technology that allows the user to quickly and easily locate
the desired satellite signal from any C or Ku band satellite. Use it for freesat, Sky, Free To Air ( FTA ), or for
Hotbird, or 30+ more satellites. You can now easily and quickly align any satellite dish, using the all new FastAlign 5100Pro,
install more satellite dish systems faster and with more accuracy. The FastAlign allows the user to use the parameters of the
hundreds of preprogrammed satellite settings in the FastAlign or the user can edit the transponder, symbol rate, polarity,
and LNBF LO frequency all on one screen, including Circular or Linear polarities. During the initial setup of the FastAlign,
the user can input his latitude and longitude and the meter will automatically calculate the azimuth and elevation of the
desired satellite based on the location of the satellite. With it's unique automatic recalibration function, every time
the meter is turned on, it automatically recalibrate for peak performance. The pictures show with and without the backlight.

Complete with mains charger, car charger, USB software upgrade lead and shoulder strap.



Ideal for the professional installer who wants a meter than can do the job quickly
or the caravaner who wants a very small light fast satellite finder meter.

Shipping options. Discounted shipping on all web orders.
UK - UK delivery is included in the price,
so choose "UK delivery including offshore islands (and Eire) included"
- UK shipping option No 1.
Please note that, although not guaranteed, many uk deliveries are getting there next day
if the order comes in before our cut off times.
International - within the EU - choose the £38 "up to 5Kg by courier to EU countries" shipping option
International - outside of the EU - choose the "International shipping quote by e-mail" shipping option.

LEXIUM FastAlign 5110Pro satellite meter.
In Stock.
Order code FASTALI
Only £157.50

LEXIUM FastAlign 7100Pro

Identifies many satellites.







1. The only meter with an auto detect option.
You can call up any satellites in the database and set them on "auto detect".
When the meter sees that satellite it immediately shows the name of the satellite with signal strength and quality.
No need to select a satellite in the menu's for the meter to look for. No need to do anything except turn the meter on.
If it hits a different satellite it will name it and so you can then move east or west until the satellite you are
looking for is detected. There is nothing simpler than this. Another example. If the meter was connected to a fully
set up motorised dish, every satellite would be named as the dish was driven from east to west. As the dish passes
a satellite the meter names it and provides signal strength and quality. This auto detect function is optional and
works if the satellite is selected in the menus when you et up the meter. If the only satellite of interest is 28E
then you can only call up only 28E, however, selecting more satellites is a better option since it is useful to
know where in the sky the dish is pointing so that you know whether to move the dish east or west to the desired
satellite. e.g. If it detects 13E (Hotbird) you know the dish needs to go east to find Astra 2 at 28E.
2. This meter also has Diseqc 1.0, 1.1 and 1.2
That means it will switch LNBs that are on a Diseqc switch or monoblocks. Then the LNBs or monoblocks can easily be set up.
It will drive a diseqc motor east and west while it is being set up
3. Entering data manually to update the meter or pc editing is possible.
4. Complete in quality canvas case
5. LNB loop through. You can loop it through to a satellite receiver if you wish. This can be useful and many
"pro" meters do not have loop through.
6. Uses normal rechargeable batteries. You can use normal AA cells if the batteries are low. Easy to find new
batteries in the future as they are not meter specific.
7. Comes with an 8 cell charger. If you have a spare set of AA cells, charge one set while using another (only one set included).
The charger comes with a mains power supply and a 12 volt car charger lead. The 8 batteries can be charged in the car.
8. Small and light, only 848g including batteries and canvas case.

Features
Advanced meter. Unbelievable low price.
DiSEqC1.2 Compatible, DiSEqC1.1 Compatible, DiSEqC1.0 Compatible, Fully Programmable USB Interface, AutoFind® Technology
QuickSweep® Technology, Displays TP Frequency, Backlight - Display Illumination - Day & Night Mode, Speed Management
On/Off Timer (Automatically turns off your meter after idle to save battery life), Factory Default / Meter Reset Feature
TP Name Editable, Satellite Name Editable, Satellite Location Editable,
Load Satellite Name / TP Specifications Via Computer or Manually Using Meter
8 Transponders Programmable Per Satellite, 27 Satellites Programmable, Easy To Read Oversized Display
LNB LO Frequency Programmable - 10750MHz, 9750MHz, 10600MHz, 11300MHz, 9750/10600MHz, 5150MHz, 5750MHz
Ideal for the professional installer who wants a meter than can do the job quickly
or the caravaner who wants a very small light fast satellite finder meter.

Shipping options. Discounted shipping on all web orders.
UK - UK delivery is included in the price,
so choose "UK delivery including offshore islands (and Eire) included"
- UK shipping option No 1.
Please note that, although not guaranteed, many uk deliveries are getting there next day
if the order comes in before our cut off times.
International - within the EU - choose the £38 "up to 5Kg by courier to EU countries" shipping option
International - outside of the EU - choose the "International shipping quote by e-mail" shipping option.

LEXIUM FastAlign 7100Pro satellite meter.
In Stock.
Order code FASTAL7
Only £179.95

Satcatcher Setsat meter.

Identifies satellite.





Case included. Mains charger included. Many satellites in database.
The meter comes in a strong padded case. This meter only weighs 800 grams - light to carry!

Features in more detail,
Soft case. Many satellites in the memory.
1. Input Frequency. Frequency range: 950-2150 MHz
2. Signal Measure. Level range -65dbm ~ -2dbm
3. Other Net weight: 0.8 Kg Working temperature: 0 Deg C. ~ + 45 Deg C. Display: 16 x 2 line characters LCD
Audio output: Internal built in speaker. Switch: 22KHz support.
4. Power Supply LNB power supply: 'H' +18v 'V' +13v 500mA, DC power supply: DC 8.4v chargeable battery
power adapter input: AC110V/60Hz/220V50Hz +/- 10%, Power adapter output: 10.4V DC 1000 mA.
Working time: 2 hours from full charge. Charging time: 3 hours to full.

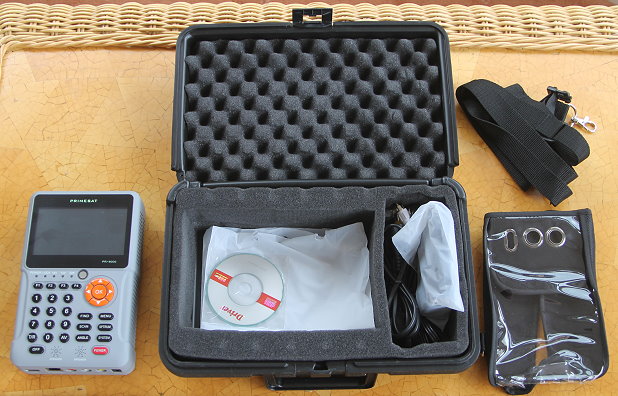

Car charger (optional). world compatible. Protective case with strap. (included).

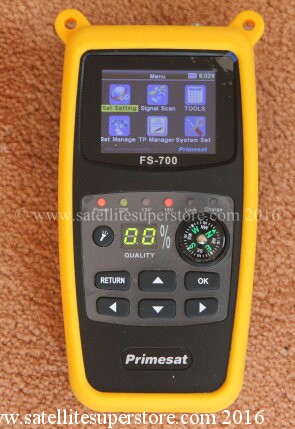

5.Function Fully edit every setting by hand, no P.C required. 60 entries of test data possible,
Transponder list. Search and find with 3 easy steps. Extra sensitive Philips tuner.
High quality build using the best components
Only Satcatcher allows you to Add, edit , delete and store entries at super fast speed
by using the onboard 17 digit keypad. A computer is not needed. If the meter needs.
a frequency to be changed it can be done so through the key pad.
Unbelievable value for all of this professional kit.
Note - a fast fit 3m professional meter lead (fly lead) is available below.

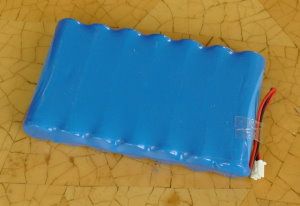

Spare batteries and replacement chargers are also available below. They work with this meter as well.
Shipping options. Discounted shipping on all web orders.
UK - UK delivery is included in the price,
so choose "UK delivery including offshore islands (and Eire) included"
- UK shipping option No 1.
Please note that, although not guaranteed, many uk deliveries are getting there next day
if the order comes in before our cut off times.
International - within the EU - choose the £38 "up to 5Kg by courier to EU countries" shipping option
International - outside of the EU - choose the "International shipping quote by e-mail" shipping option.
Order code, SETSATM
Only £189.95
