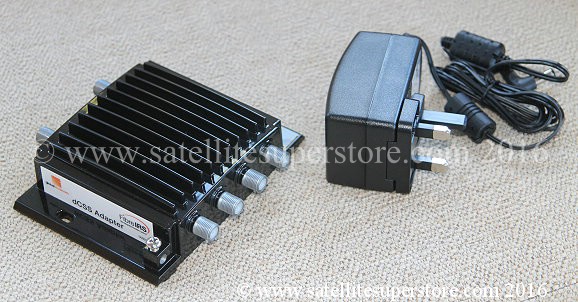

Triax Sky Q™ dSCR Interface. (4-OUT).

Triax Sky Q dSCR interface. Triax Sky Q dSCR interface.

(Please note - "Sky Q™" is a trade mark of Sky Television).

Works from 4 outputs of a multiswitch, or a quad or quatro LNB.
Provides 2 Sky Q™ outputs and 2 normal outputs.

This interface can connect to a quad LNB, or a quatro LNB or 4 outputs from a multiswitch. It will provide two Sky Q™ outputs
and 2 normal outputs (legasy). This means two single HD receivers or a twin tuner HD receiver can also be connected.
e.g. Sky Q™ + Sky HD or Sky Q™ + freesat. If used with a standard multiswitch, e.g. 5 x 16, 4 of the outputs can be converted
to 2 X Sky Q™ outputs and 2 x normal outputs. With the remaining 12 outputs and the 2 from the interface, there will still be
14 available to continue working with Sky HD, freesat or standard receivers. Alternatively, connect it to your existing
Sky dish with quad LNB and you will have 2 X Sky Q™ outputs and 2 x normal outputs.
(Also note a Sky q multiswitch is also available (with LNB loop through) and this can be connected in
front of a standard multiswitch. This provides 4 Sky Q™ outputs. The existing outputs from the multiswitch are
unaffected and available for standard receivers like, Sky HD and freesat.)
A lower cost interface is available below but it only has the two Sky Q™ outputs.
Triax power supply included. This item is unlikely to work properly without a power supply.
You may find this item online elsewhere but the power supply may not be included!


Shipping options. Discounted shipping on all web orders. (VAT info.) (Stock levels.)
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." (Includes UK offshore islands) - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post." shipping option

Triax Sky Q™ TMDS 42C dSCR Interface including power supply
(Triax part numbers 307368 and 307780)
Order code TRIQINT
£114.95



Global Sky Q™ dSCR Interface. (2-OUT).

Triax Sky Q dSCR interface. Triax Sky Q dSCR interface.

(Please note - "Sky Q™" is a trade mark of Sky Television).

Works from 4 outputs of a multiswitch, or a quad or quatro LNB. Provides 2 Sky Q™ outputs.
This interface can connect to a quad LNB, or a quatro LNB or 4 outputs from a multiswitch. It will provide two Sky Q™ outputs.
If used with a standard multiswitch, e.g. 5 x 16, 4 of the outputs can be converted to 2 X Sky Q™ outputs and the remaining
12 outputs will continue to work with Sky HD, freesat or standard receivers.
Alternatively, connect it to your existing Sky dish with quad LNB and you will have 2 X Sky Q™ outputs.
(Also note a Sky Q™ multiswitch is also available (with LNB loop through) and this can be connected in
front of a standard multiswitch. This provides 4 Sky Q™ outputs. The existing outputs from the multiswitch are
unaffected and available for standard receivers like, Sky HD and freesat.)
See above the Triax Sky Q™ interface above which offers 2 Sky Q™ outputs and 2 normal outputs.
A Power supply included with this product.

Shipping options. Discounted shipping on all web orders. (VAT info.) (Stock levels.)
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." (Includes UK offshore islands) - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post." shipping option

Global Sky Q™ dSCR Interface. Power supply included.
Order code SKYQINT
£109.95



Advice

QUESTION -

I want to have multiple satellite points around
the house and multiple receivers. I also want to
distrubute the TV from one receiver to all TVs how
can this be done.


ANSWER -

There are two parts to this question.

Input

To provide many Sky or freesat dish points around the house you either need a quatro LNB on your
dish or a quatro LNB dish kit. see dishes with quatro LNBs
and a 5 input multiswitch (multiswitches are usually situated in a loft or cupboard or central area.)
see multiswitches
The quatro LNB (with 4 outputs) feeds the multiswitch using 4 LNB cable - see 4 LNB cable
Best to put two outlets in each room as it may be that twin tuner receivers
(record one channel and watch another) may be needed.
If so use the twin wall plates see outlet plates then scroll down to the twin units.
Use twin cable to each room. see Twin cable
For (e.g.) 6 rooms a 12 output multiswitch would be used. Twin cable to each room.
An aerial can be fed into the 5th input of the multiswitch if required.
Using a wall plate which has a diplexer built in, two satellite points and an aerial point is available.
The UHF Aerial signal is added to the satellite signal by the multiswitch and goes down the
same wire as the satellite signal.
If two or three aerials are required e.g. TV, FM and DAB radio, a 3 way combiner can be fitted on the roof and
the one cable from that unit goes into the 5th input of the multiswitch. Again the appropriate wall plate is
needed to separate them all out again. see multiswitch combiner
Standard Sky, Sky+ Sky HD freesat and freesat HDR and other receivers can then be connected
to the F connector wall plate.

Output.

distribution round the house needs a 2, 3, 4, 6 amp or (preferably) professional 8 way amp and cabling.
see Professional 8 way amp and Offer 1
but read the whole page.
This is to distribute TV from one receiver to other TVs around the house (one channel)
This can be done by feeding a cable from the room containing the sat receiver to the multiswitch location and
into the 3 way combiner then into the multiswitch.
However, the problem with this method is that the multiswitch will not permit the 9 volts to go through and
the TV Eye or omni link system to work for control.
It is better therefore to have a completely separate output system with separate cabling for the distribution system
This would mean 3 cables to each room, two for the satellite and one for the distribution. TV eyes for Sky receivers
Sky accessories
or omni link systems for freesat receivers etc.
see omni link kit
(and a modulator is required - same page)
This will allow full control of the Sky or freesat system from all of the rooms.

How to use mutiswitches and motorised in multiple rooms.
Using a 9 input Delta multiswitch, two satellites can be made available in every room.
This multiswitch could be fed from (e.g.) a dish on 28E for sky or freesat. This dish would have a quad
(not quatro) LNB. These multiswitches are designed for quad or octo LNBs.
A good example of a dish for this purpose would be -
The Triax 60cm solid dish with quad option
see Triax 60cm. (with quad LNB option)
The Triax heavy duty 60cm or 70cm dish with quad LNB option
see Triax heavy duty 60cm or 70cm dishes (with quad LNB option)
The clear 60cm dish with quad LNB option.
see Clear 60cm dish (with quad LNB option)
This dish would be fed into input 1 of the 9 input multiswitch (this is 4 inputs), 1-4, for the quad LNB.
Input 2 (i.e. from 5-8) would be fed by a motorised dish.
The motorised dish (e.g. 90cm Triax - see Triax 90cm motorised dish (with octo LNB option))
would have an octo LNB option (8 outputs)
4 of the outputs would feed into input 2 of the multiswitch (5-8)
A 5th output would go direct to the motorised satellite receiver. (or outputs 5 and 6 to a twin tuner motorised receiver.)
This receiver would be placed in the house where it can easily be accessed as it will control which 2nd satellite
it being offered to the multiswitch.
Let us assume the 9 input multiswitch has 16 outputs. That is to say twin cable to 8 rooms so that every room has
the capability of using a twin tuner receiver.

The system would then work in the following way -
Using any receiver into a twin satellite point in a room, 28E (Sky and freesat) would be available even if the
receiver was a dedicated receiver (like a Sky receiver) and does not have Diseqc switching PROVIDING 28E goes
into input 1 of the multiswitch.
Input 1 is the "relaxed position" of the switches (Input 2 is the forced position) therefore the signal will go
through input 1 whether the receiver has Diseqc switching or not.

If the receiver DOES have diseqc switching, then the second satellite can be selected.
If the motorised dish is (e.g.) on Hotbird, the second satellite available in every room would be Hotbird at 13E
If the motorised dish is (e.g.) on Astra 1, the second satellite available in every room would be Astra 1 at 19E
this system insures that everyone in the house can easily select the main UK satellite (Astra 2 at 28E) but would
also be able to access a second satellite and that satellite would be determined by the position of the motorised dish.
This system eliminated a particular problem. Within the menu of a satellite receiver you can't select Diseqc
switching (Diseqc 1.0 or 1.1) AND motorised (Diseqc 1.2) AT THE SAME TIME. This is why an octo LNB must be
used with these special quad / octo multiswitches. This system keeps the diseqc 1.2 separate from the
multiswitches and so it all works. It would not work with quato LNBs as the motor would not work between the
LNB and the multiswitch. There has to be a 5th output
to separately route through the motor to a control receiver.

Twin wall plates are needed in every room. The motorised receiver needs it's own cables directly from it's own dish.

This system also works for a 36 volt motor, here a V Box is used in the cable from the 5th output of the octo LNB
to the main motorised control receiver otherwise everything else is the same.
