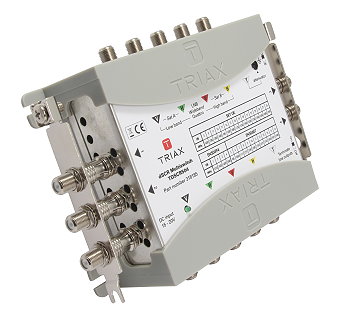

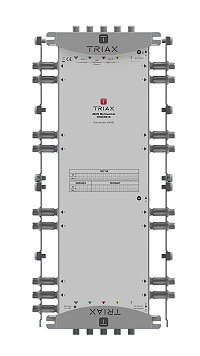

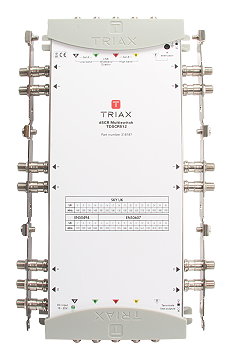

Triax Sky Q dSCR multiswitches.
You can combine Sky Q receivers with Sky+ HD receivers using this multiswitch.
Purpose - to provide satellite outlet points around the building which are either Sky Q or normal satellite (e.g. Freesat)
These Triax multiswitches are connected to a quatro LNB, They can also be connected to a terrestrial aerial. The options
are 4 outputs, 8 outputs and 12 outputs. Each output can be either a Sky Q output or a standard (universal LNB) output. The
multiswtches also have "quatro LNB loop through" and so they can connect to a standard multiswitch. This can either be for
extra standard outputs, or they can go between the existing quatro LNB dish and an existing standard multiswitch. Once
fitted in this way, the normal distribution system already in use will continue as per normal but extra Sky Q
outputs will then be available. You may also need a power supply
. See below
. Also see dishes with quatro LNBs
(Also note there is a Sky q interface
available which can be connected to 4 outputs from a standard multiswitch and this
provides 2 Sky Q outputs. It can also connect directly the 4 outputs of a quad or quatro LNB to provide the 2 Sky q outputs.)
Please note the pictures above show the previous range, they will be updated soon.
Shipping options. Discounted shipping on all web orders.
- mainland UK delivery is included in the price,
.) (Stock levels
so choose "Mainland UK delivery included
" - UK shipping option No 1 (or priority options 4-7
For "UK offshore islands including Northern Ireland
" many items including dishes up to 1.0m choose the £15 - UK option No 2.
International - Republic of Ireland - choose the £15 "fixed price
multiple items to Eire
" shipping option
International - within the EU - choose the £38 "up to 5Kg by courier to EU countries
" shipping option
International - outside of the EU - choose the "International shipping quote by e-mail
" shipping option.
Please note, although not guaranteed, many 1-3 day standard UK deliveries are actually arriving next day if the order
is received before our cut-off times but there is also a next day priority delivery option at only £6.50 if required
I want to have multiple satellite points around
the house and multiple receivers. I also want to
distrubute the TV from one receiver to all TVs how
can this be done.
There are two parts to this question.
To provide many Sky or freesat dish points around the house you either need a quatro LNB on your
dish or a quatro LNB dish kit. see dishes with quatro LNBs
and a 5 input multiswitch (multiswitches are usually situated in a loft or cupboard or central area.)
The quatro LNB (with 4 outputs) feeds the multiswitch using 4 LNB cable - see 4 LNB
Best to put two outlets in each room as it may be that twin tuner receivers
(record one channel and watch another) may be needed.
If so use the twin wall plates see outlet plates
then scroll down to the twin
Use twin cable to each room. see Twin cable
For (e.g.) 6 rooms a 12 output multiswitch would be used. Twin cable to each room.
An aerial can be fed into the 5th input of the multiswitch if required.
Using a wall plate which has a diplexer built in, two satellite points and an aerial point is available.
The UHF Aerial signal is added to the satellite signal by the multiswitch and goes down the
same wire as the satellite signal.
If two or three aerials are required e.g. TV, FM and DAB radio, a 3 way combiner can be fitted on the roof and
the one cable from that unit goes into the 5th input of the multiswitch. Again the appropriate wall plate is
needed to separate them all out again. see multiswitch combiner
Standard Sky, Sky+ Sky HD freesat and freesat HDR and other receivers can then be connected
to the F connector wall plate.
distribution round the house needs a 2, 3, 4, 6 amp or (preferably) professional 8 way amp and cabling.
see Professional 8 way amp
and Offer 1
but read the whole page.
This is to distribute TV from one receiver to other TVs around the house (one channel)
This can be done by feeding a cable from the room containing the sat receiver to the multiswitch location and
into the 3 way combiner then into the multiswitch.
However, the problem with this method is that the multiswitch will not permit the 9 volts to go through and
the TV Eye or omni link system to work for control.
It is better therefore to have a completely separate output system with separate cabling for the distribution system
This would mean 3 cables to each room, two for the satellite and one for the distribution. TV eyes for Sky receivers
or omni link systems for freesat receivers etc.
see omni link kit
(and a modulator is required - same page)
This will allow full control of the Sky or freesat system from all of the rooms.
How to use mutiswitches and motorised in multiple rooms.
Using a 9 input Delta multiswitch,
two satellites can be made available in every room.
This multiswitch could be fed from (e.g.) a dish on 28E for sky or freesat. This dish would have a quad
(not quatro) LNB. These multiswitches are designed for quad or octo LNBs.
A good example of a dish for this purpose would be -
The Triax 60cm solid dish with quad option
see Triax 60cm. (with quad LNB option)
The Triax heavy duty 60cm or 70cm dish with quad LNB option
see Triax heavy duty 60cm or 70cm dishes (with quad LNB option)
The clear 60cm dish with quad LNB option.
see Clear 60cm dish (with quad LNB option)
This dish would be fed into input 1 of the 9 input multiswitch (this is 4 inputs), 1-4, for the quad LNB.
Input 2 (i.e. from 5-8) would be fed by a motorised dish.
The motorised dish (e.g. 90cm Triax - see Triax 90cm motorised dish (with octo LNB option)
would have an octo LNB option (8 outputs)
4 of the outputs would feed into input 2 of the multiswitch (5-8)
A 5th output would go direct to the motorised satellite receiver. (or outputs 5 and 6 to a twin tuner motorised receiver.)
This receiver would be placed in the house where it can easily be accessed as it will control which 2nd satellite
it being offered to the multiswitch.
Let us assume the 9 input multiswitch has 16 outputs. That is to say twin cable to 8 rooms so that every room has
the capability of using a twin tuner receiver.
The system would then work in the following way -
Using any receiver into a twin satellite point in a room, 28E (Sky and freesat) would be available even if the
receiver was a dedicated receiver (like a Sky receiver) and does not have Diseqc switching PROVIDING 28E goes
into input 1 of the multiswitch.
Input 1 is the "relaxed position" of the switches (Input 2 is the forced position) therefore the signal will go
through input 1 whether the receiver has Diseqc switching or not.
If the receiver DOES have diseqc switching, then the second satellite can be selected.
If the motorised dish is (e.g.) on Hotbird, the second satellite available in every room would be Hotbird at 13E
If the motorised dish is (e.g.) on Astra 1, the second satellite available in every room would be Astra 1 at 19E
this system insures that everyone in the house can easily select the main UK satellite (Astra 2 at 28E) but would
also be able to access a second satellite and that satellite would be determined by the position of the motorised dish.
This system eliminated a particular problem. Within the menu of a satellite receiver you can't select Diseqc
switching (Diseqc 1.0 or 1.1) AND motorised (Diseqc 1.2) AT THE SAME TIME. This is why an octo LNB must be
used with these special quad / octo multiswitches. This system keeps the diseqc 1.2 separate from the
multiswitches and so it all works. It would not work with quato LNBs as the motor would not work between the
LNB and the multiswitch. There has to be a 5th output
to separately route through the motor to a control receiver.
Twin wall plates are needed in every room. The motorised receiver needs it's own cables directly from it's own dish.
This system also works for a 36 volt motor, here a V Box is used in the cable from the 5th output of the octo LNB
to the main motorised control receiver otherwise everything else is the same.
