((The manufacturers quote up to 60m with the kit with amp and up to 30m with the kit without amp))
Left to right above - twin LNB, stacker, single cable (WF100) Destacker (with power suplly) output two cables .... to
two receivers or a twin tuner PVR. This device is designed to send the two outputs from a twin LNB down one cable.
Please note that good quality cable is recommended. It may be that the cable is already installed and a second
cable or a replacement cable is not possible. The Stacker Destacker will work but works on longer cable runs if
good cable is already fitted. Whilst the manufacturer claims quite a long cable run with the "amp" kit, since
they do not know the quality of the cable that is already installed we would only recommend cable runs up to
about 40m approx. If a longer cable run is in use, it may still work fine. Even on longer cable runs or poor
cable, if it does not work 100% it may still work at 90% (approx.). That means it is likely that all TV channels
should work fully on one of the 2 outputs from the LNB but (maybe) 10% of the channels may not work at one end of
the frequency band from the other LNB output This may still be acceptable to some customers that cannot fit a
second cable. Suitable for use with twin tuner receivers like Sky +, Sky + HD, Humax HDR LE, and other twin
tuner receivers like the Technomate TM7102 etc. A power supply is included for the destacker but on cable
runs up to 20m this is not usually needed. A Stacker De-stacker without amp is shown in left hand the picture above,
the amp is an option for longer distances. In our tests (March 2012) the standard kit (without the amp) worked

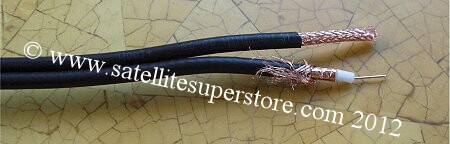

perfectly with a 20m length of single Webro WF 100 cable. Using the amp this distance can be doubled.
Update 15th March 2012 - Tested with 40m of cable and all channels worked perfectly
without needing to use the optional amp, however, we were using very good UDC cable.
Also note that the stacker destacker is also available with our 5 input range of multiswitches
. Here, 4, 8,
12, 16, 24 and 32 outputs are all available from a quad or quatro LNB and a twin cable using a two stacker
destackers and a Primesat multiswitch
. This with provide many satellite outputs (up to 32)
in a household if only a twin cable is available from the dish to the inside of the house.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included.
" - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post.
See our other web site at-
This site includes many products that are exclusive to the Satellite Superstore.
The site contains -

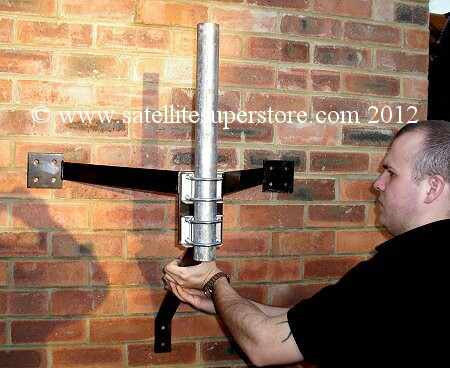

• Products that we manufacture (e.g. We have manufactured heavy duty wall mounts and ground stands since 1991).
